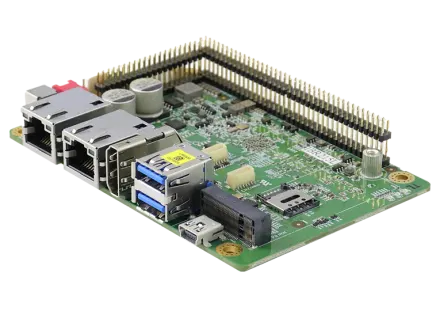

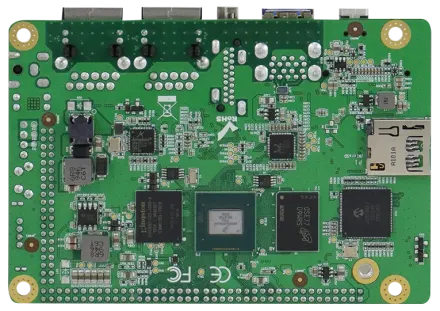

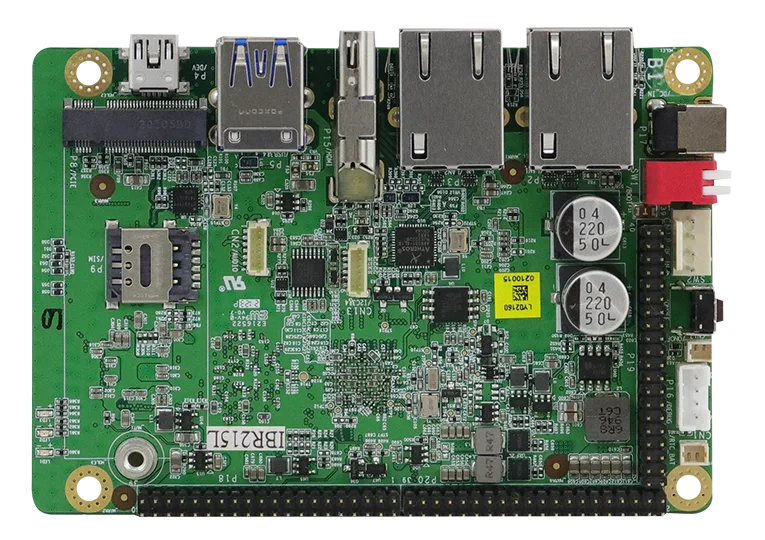

IBR215L
Low-Power 2.5" SBC with NXP i.MX 8M Plus QuadLite - ARM Cortex-A53 Processor
Low-Power 2.5" SBC with NXP i.MX 8M Plus QuadLite - ARM Cortex-A53 Processor. Local warranty support and engineering customization available on request.
Specifications
| Form Factor | 2.5-inch SBC |
|---|---|
| Processor | NXP Cortex®-A53 i.MX8M Plus QuadLite processor |
| System Memory | 3GB DDR4 on board (option: 2/4/8GB) |
| Flash Memory | 16GB eMMC on board (up to 256GB) |
| Display | HDMI |
| Video Codec | N/A |
| Graphics | OpenGL Es 1.1, 2.0, 3.0,3.1OpenCL 3.0OpenVG 1.1OpenGL 4.0EGL 1.5Vulkan 1.1 |
| Edge I/O | 1x On/Off button1x 12V~24V DC-in jack1x SD socket (UHS-I SDR-104, 104MB/s max.)1x Boot select switch (boot from eMMC or SD)1x HDMI 1.4a2x USB 3.0 Type-A2x RJ45 GbE LAN1x Mini-USB OTG |
| Internal I/O | 1x M.2 B-Key(3052) with SIM socket (for 5G module)2x I2C / 4x GPIO1x Audio Line-in and Line-out1x12V~24V DC-in jack1x DC power (4-pin header)3x IO expansion 2mm pitch 2x20 headers with following features (Contact us for design reference):• 1x USB 2.0• 1x PCM• 2x UART(Rx, Tx)• 1x SDIO• 1x UART (Tx, Rx, CTS, RTS)• 2x USB 3.0• 1x 2ch LVDS with backlight control• 1x I2C• 2x PWM• 3x GPIO• 1x Cap touch IF• 2x MIPI-CSI for |
| Expansion IO | 1x M.2 E-Key(2230)w/ SDIO, UART for wireless1x Mini PCI-E w/ USB 2.0, SIM, PCM for 4G/LTE1x DB-9 RS232/422/485 port2x USB 3.0 in 1x19-pin headers1x 2ch LVDS with backlight control1x Cap touch IF2x MIPI-CSI2x CAN-FD |
| Watchdog | 256 levels, 0~128 seconds |
| Dimensions | IBR215L: 105mm(W) x 72mm(D)4.13”(W) x 2.83”(D)IBR215-IO: 100mm(W) x 72mm3.94”(W) x 2.83”(D)IBR215L+IBR215-IO: 105mm(W) x 72mm(D) x 35mm(H)4.13”(W) x 2.83”(D) x 1.37”(H) |
| Power Input | 12V~24V DC-in jack |
| Operating Temperature | With heat sink or through housing design: -40°C~85°C (-40°F ~185°F)Without heatsink:-40°C~65°C (-40°F ~149°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| OS Support | Yocto 5.0Android 11Other OS (by request) |
| Certification | CE/ FCC Class-B |
I/O — Rear panel
Front access
Where the IBR215L is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
