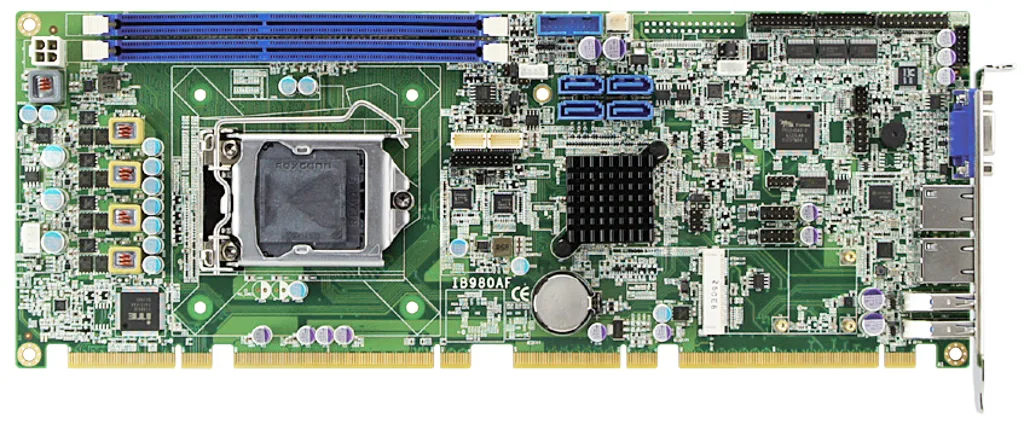

IB980
LGA1155 4nd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q87 Express Chipset
LGA1155 4nd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q87 Express Chipset. Local warranty support and engineering customization available on request.
Specifications
| Chipset | Intel® Q87 PCH |
|---|---|
| BIOS | AMI BIOS, ACPI supported |
| System Memory | Two DDR3-1600 sockets; Up to 16GB , w/o ECC |
| LAN | Intel i217LM Gigabit LAN PHY (IB980AF) Intel i217V Gigabit LAN (IB980F) · Intel i211AT Gigabit LAN (as 2nd LAN) iAMT 9.0 |
| Audio | Intel® Q87 PCH built-in HD audio with Realtek ALC662 codec for 5.1 channel output |
| USB | 4x ports 3.0(2 by Pin-Headers), · 4x ports 2.0 (Pin-headers), |
| Hardware Monitoring | iSmart 3.0, Monitors system/CPU temperature and voltage status |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in and 4 out |
| Edge Connectors | DB15 x1 for VGA, RJ45 x 2 for LAN 1 & 2, USB x2 |
| Dimensions | 338mm x 126mm (13.31" x 4.96") |
| Power Consumption | TBC |

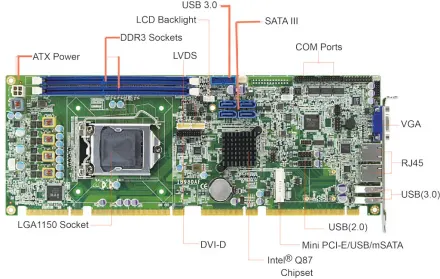

I/O — Rear panel
Front access
Where the IB980 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
