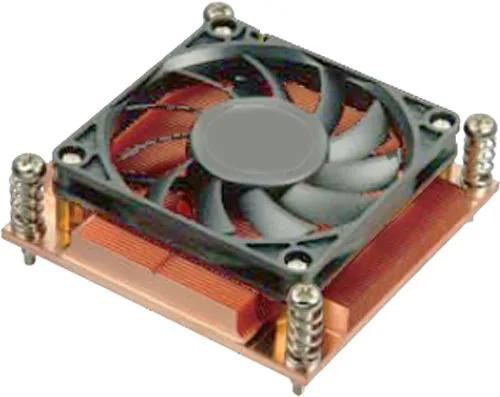

FANDENA
Intel® Xeon 3400 Series and Core® i7, i5, i3 Socket 1156/1155
Intel® Xeon 3400 Series and Core® i7, i5, i3 Socket 1156/1155. Local warranty support and engineering customization available on request.
DIMENSIONS
84 (L) x 84 (W) x 28 (H) mm
MATERIALS
Copper
WEIGHT
382 g
PWM FUNCTION
YES
AccessoryThird-party (cooling)
P/N # FANDENA
Specifications
9 ROWS
| Dimensions | 84 (L) x 84 (W) x 28 (H) mm |
|---|---|
| Materials | Copper |
| Weight | 382 g |
| PWM Function | YES |
| Thermal Grease | Shin-Etsu PCS-TC-11 pad · 75x75x15mm · 12V Power Consumption : 1.2~ 9.6 W · Dual Ball bearing |
| Fan speed | At duty cycle 0~30% : 1000 rpm · At duty cycle 100% : 5500 rpm |
| Noise Level | At duty cycle 0~30% : max.18 dBA · At duty cycle 100% : max. 51 dBA |
| Air Flow | 1.93~11.83 CFM |
| Static pressure | 0.38~20.66 mmH2O · 4-pin PWM · Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM) |
I/O — Rear panel
Front access
Where the FANDENA is deployed
USE CASE
Expansion & upgrades
Add connectivity and storage capability to existing industrial and third-party boards.
USE CASE
Field retrofit
Extend the useful life of fielded systems with a drop-in accessory card.
USE CASE
Custom builds
Building-block components for OEM BTO assembly and custom system integration.
USE CASE
Spares & maintenance
Stocked accessory parts for maintenance and repair of deployed systems.
