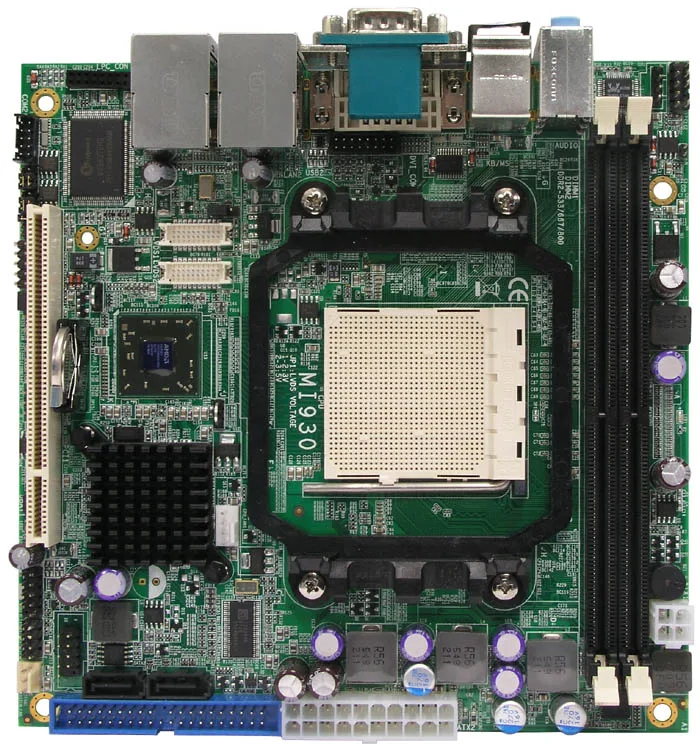

Socket AM2 AMD Athlon™ 64 Mini-ITX Motherboard

Socket AM2 AMD Athlon™ 64 Mini-ITX Motherboard. Local warranty support and engineering customization available on request.

CPU

AM2 socket (940 pin)

MEMORY

Two DDR2 sockets support up to 4GB DDR2 SDRAM PC533/667/800 DDR2 SDRAM

ETHERNET

Two Marvell 88E8053 PCI-Express Gigabit LAN

POWER

ATX 20-pin + 4-pin 12V connectors

REQUEST QUOTE REQUEST DATASHEET

P/N # MI930

Manual Introduction to Watchdog Timer

Specifications

23 ROWS

CPU Socket	AM2 socket (940 pin)
CPU	Supports AMD Athlon™ 64 / AMD Athlon™ 64 x2 (dual core) / Sempron™ 64-bit processor integrated with DDRII memory controller in CPU
CPU Front Side Bus ( FSB )	800MHz / 1066MHz / 1333MHz
Chipset	AMD M690E + SB600
BIOS	Award BIOS, ACPI supported
System Memory	Two DDR2 sockets support up to 4GB DDR2 SDRAM PC533/667/800 DDR2 SDRAM
Integrated VGA	AMD M690E built-in Radeon X700 VGA controller Supports CRT, DVI, and LVDS; dual display (CRT with DVI or LVDS); DVI with LVDS)
LAN	Two Marvell 88E8053 PCI-Express Gigabit LAN
Audio	ATi SB600 built-in high definition audio controller with Realtek codec ALC888 for 7.1 CH audio
LPC I/O	Winbond W83627EHG chipset Supports COM1 (RS-232), COM2 (RS-232/422/485), hardware monitoring
Serial ATA Interface	ATi SB600 built-in SATA II (3.0Gb/sec) supports 2 ports and RAID 0, 1 function · Supports Socket AM2 for AMD Athlon™ 64 / Athlon™ 64 X2 / Sempron™, up to 2.8GHz · 2x DDR2 DIMM, Max. 4GB · AMD M690E built-in Radeon X700 VGA for CRT, TV out, DVI and LVDS (dual display supported) · 2x Marvel 88E8052 PCI-E Gigabit LAN · 2x SATA II, 2x COM, 6x USB, optional 4x COM · Watchdog timer, Digital I/O, 1x PCI slot
PATA Interface	ATi SB600 built-in one channel UDMA 33/66/100
Serial Ports	1x RS-232/422/485 and 1x RS-232 ports
USB (2.0)	ATi SB600 built-in USB 2.0 controller supports 6 ports
Digital I/O	4 in / 4 out
Watchdog Timer	Generates system reset; 256 levels
Hardware Monitoring	Monitors system/CPU temperature and voltage status
Expansion Slot	PCI slot 8x2 pin header for adaptor card: - ID394 (2 or 4 serial ports) - ID395 (TPM 1.2 function)
Edge Connectors	PS/2 KB/Mouse Mini DIN, COM1 and DVI, 2x RJ-45, 4x USB, Triple jack for audio
Power Connector	ATX 20-pin + 4-pin 12V connectors
Form Factor	Mini-ITX
Dimensions	170mm x 170mm (6.7" x 6.7")
Environmental Factors	Operating Temperature: 0°C~60°C (32°F~140°F) · Storage Temperature: -20°C~80°C (-4°F~176°F) · Relative Humidity: 10%~90% (non-condensing)
