NRB-03
IP67/IP68/IP69K Waterproof Intel Amston Lake Fanless Box PC, DDR5, 2xGbE, M12 Connectors, DC 9~36V
IP67/IP68/IP69K Waterproof Intel Amston Lake Fanless Box PC, DDR5, 2xGbE, M12 Connectors, DC 9~36V. Local warranty support and engineering customization available on request.
Specifications
| Processor | Intel Amston Lake Processor (up to 3.4GHz) |
|---|---|
| Memory (RAM) | Up to 32GB DDR5 |
| Cooling System | Premium fanless thermal design |
| Network (LAN) | 2x GbE (Gigabit Ethernet) |
| USB Ports | 2x USB 3.0, 2x USB 2.0 |
| Video Output | 1x HDMI |
| Serial Ports | COM1 (RS-232/422/485), COM2 (CAN) |
| Connector Type | Secure M12 rugged connectors |
| Wireless Expansion | Reserved antenna holes for 4G / 5G / Wireless modules |
| Input Voltage | DC 9~36V wide-range power input |
| Ingress Protection | Full IP67 / IP68 / IP69K (dustproof, water-resistant and high-pressure/high-temperature water jetproof) |
| Enclosure | Rugged metal casing |
| Operating Temperature | -40°C to 70°C fanless wide-temp operation |
| Target Applications | Food & Beverage (washdown environments), Outdoor Applications (severe weather monitoring), Heavy Industry, Chemical plants and marine environments |

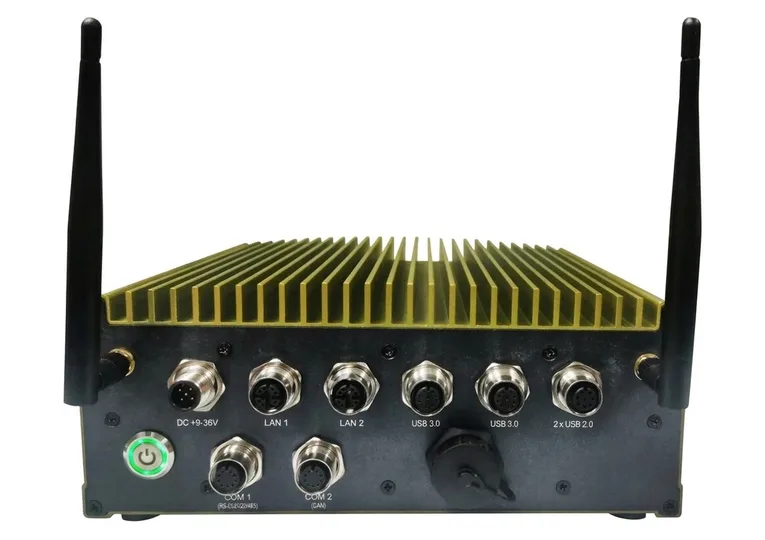

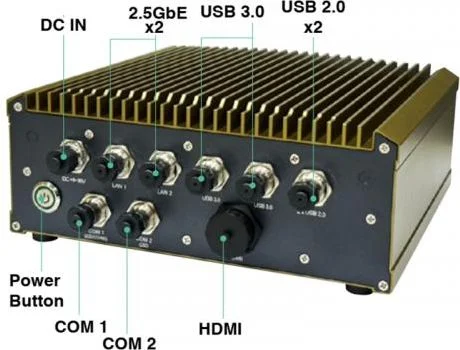

I/O — Rear panel
Front access
Where the NRB-03 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
IP67/IP68/IP69K sealing built for food & beverage washdown lines (restaurants, commercial kitchens, processing plants) and marine/boat deployments exposed to saltwater and high-pressure spray.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →NRB-03 datasheetAvailable on request
- REQUEST →NRB-03 user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
| SYS-NRB-03 | - Intel Amston Lake Fanless Waterproof Box PC, up to 32GB DDR5, 2x GbE, M12 Connectors, DC 9~36V Request a quote |
|---|
