AMI242
Edge AI Computer with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors (35W TDP)
Edge AI Computer with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors (35W TDP). Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBE240AF with Intel Q670E PCH (Non-ECC memory) MBE240AF-R with Intel® R680E PCH (supports ECC memory) |
|---|---|
| CPU Type | 14th/13th Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP) |
| System Speed | Up to 5.0GHz |
| Memory | 2x DDR5-5600 SO-DIMM, Max. 64GB |
| AI Inference Computing Power | 11 pTOPS |
| Front Panel External I/O | 2x RS-232/422/485 ports for COM1~COM22x RS-232 ports for COM3~COM42x RS-232 ports for COM5~COM6 (from IP218)2x DisplayPort2x RJ-45 GbE ports (supports 802.3at PoE+)1x 5-pin DC IN terminal block type for +24V2x Antenna holes2x USB 2.0 from IP2182x expansion slots |
| Rear Panel External I/O | 2x HDMI8x USB 3.2 ports2x Antenna holes2x RJ-45 2.5G ports1x Red HDD/SSD LED1x power button with green LED indicator1x 2-pin terminal block for On/Off2x SIM card slots |
| Expansion Slot | 1x PCI-E (16x) expansion slot for Gen5 device1x M.2 B-Key 3052 (LTE/5G/4G)1x M.2 E-Key 2230 (WiFi/BT)1x M.2 M-Key 2280 (NVMe / SATA SSD) |
| Storage | 2x 2.5” storage |
| Power Requirement | 24V DC IN |
| Power Supply | 330W power adaptor |
| Construction | Aluminum @ Gray |
| Chassis Color | Silver & Gray |
| Mounting | Desktop & wall mount |
| Weight | 4.9 kg |
| Dimensions | 210mm(W)0 x 285mm(D) x 129mm(H) |
| Operating Temperature | -20 °C ~ 70 °C (-4°F~158°F) [with 35W CPU and DDR5memory] |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3.0 Grms / 5~500Hz |
| Shock | Operating: 20G/11 ms Duration |
| Certification | CE EN55032FCC Class A / LVD |
| Operating System | Windows 11 |

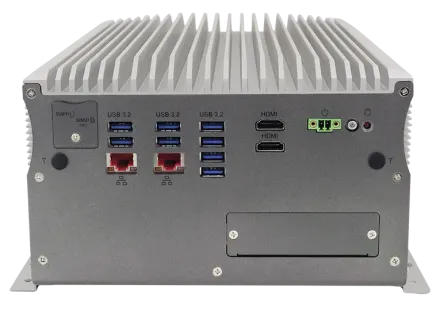

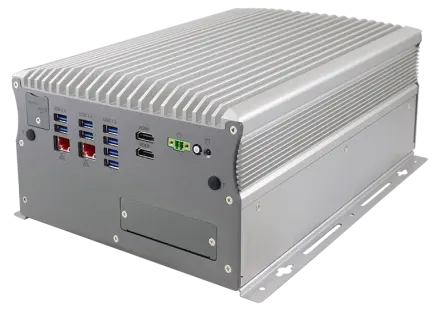

I/O — Rear panel

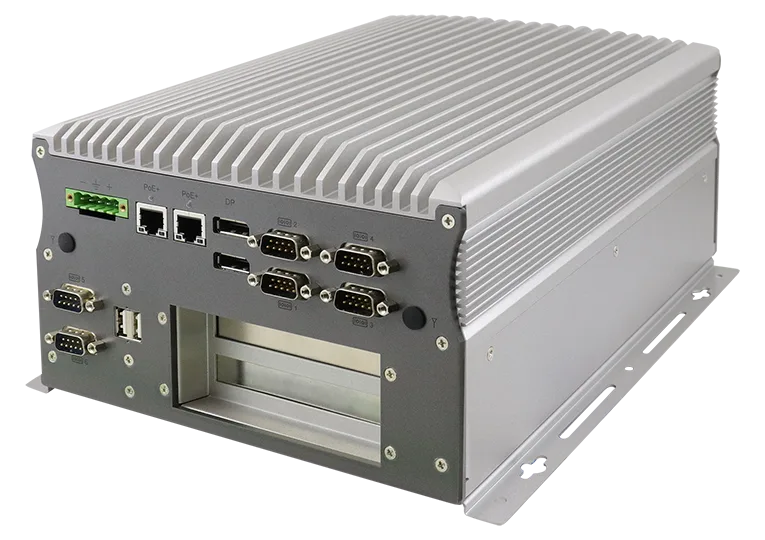

Front access
Where the AMI242 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
