AES100

Name: AES100
Brand: IBASE Technology
SKU: AES100
Availability: InStock

Edge AI Computer with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors & PCIe GPU Card Support

Edge AI Computer with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors & PCIe GPU Card Support. Local warranty support and engineering customization available on request.

CPU

14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors

MEMORY

2x DDR5-4800/5600 SO-DIMM, Max. 64GB

STORAGE

2x 2.5'' HDD/SSD (front-accessible)1x front-accessible M.2 2280 M-key tray for NVMe SSD (PCI-E x4 [Gen.4]) [optional]

OPERATING TEMP.

-20°C to 60°C (-4°F~140°F) *with air flow

Edge AI ComputerAI Computing Platform

REQUEST QUOTE DATASHEET (PDF)

P/N # AES100

Manual Diagram Driver

Specifications

19 ROWS

System Mainboard	MBA-100 with Intel® R680E PCH
CPU Type	14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors
System Speed	Up to 5.0 GHz
Memory	2x DDR5-4800/5600 SO-DIMM, Max. 64GB

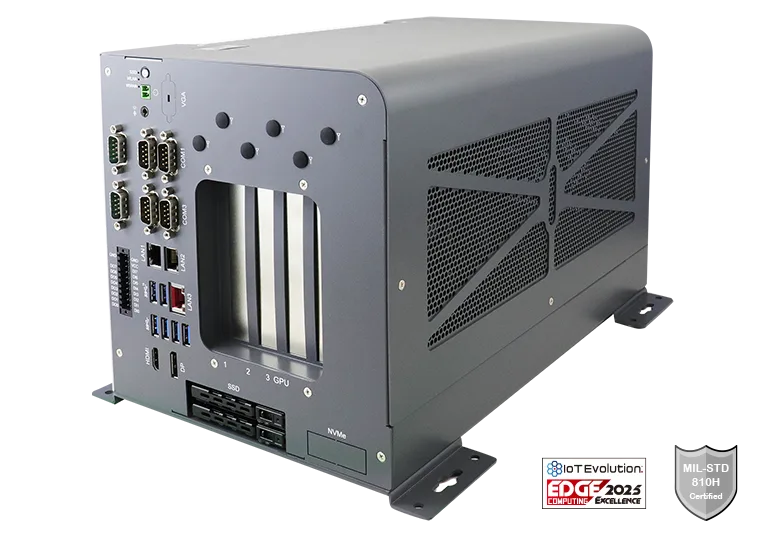

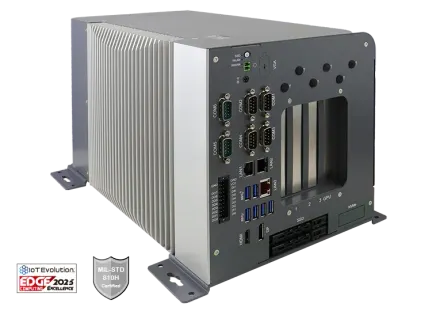

Front Panel External I/O	1x DisplayPort + 1x HDMI + 1x VGA (optional)3x RJ45 2.5G Ethernet ports2x USB 3.2 Gen.2, 4x USB 3.2 Gen.12x DB9M connectors for COM1#1 / COM#2 (RS232/422/485)2x DB9M connectors for COM1#3 / COM#4 (RS232 only)Isolated 8-in & 8-out digital I/O ports (optional)1x Line-out & MIC-in6x antenna holes for WLAN & WWAN module1x 2-pin terminal block for remote power1x power button with LED, 3x LED indicators (storage, WLAN, WWAN)

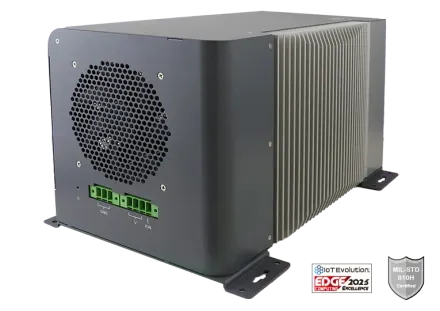

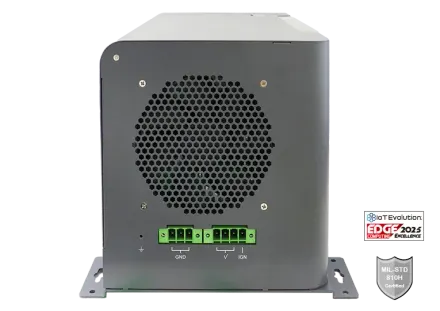

Rear Panel External I/O	1x 4-pin terminal block for 8V~48V power input1x 3-pin terminal block for ignition control
Expansion Slot	1x PCI-E(x16) Gen.4 slot + 2x PCI-E(x4) Gen.4 slots1x M.2 2230 E-key socket for WLAN & BT (PCI-E + USB 2.0 + SMBus).1x M.2 3042/52 B-key socket for WWAN (4G/5G) (PCI-E + USB3.2 Gen.1 + SMBus).1x M.2 2280 M-key socket for NVMe SSD (PCI-E x4 [Gen.4])2x Mini PCI-E full-size socket for CAN FD module (PCI-E + USB 2.0 + SMBus)
Storage	2x 2.5'' HDD/SSD (front-accessible)1x front-accessible M.2 2280 M-key tray for NVMe SSD (PCI-E x4 [Gen.4]) [optional]
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Wall mount
Weight	TBD
Dimensions	213.8mm (W) x 363.6mm (D) x 215mm (H)8.4” (W) x 14.3” (D) x 8.46” (H)
Operating Temperature	-20°C to 60°C (-4°F~140°F) *with air flow
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G
Shock	Operating: Sawtooth: 20G, 11msec (Z-axis) / MIL-STD- 810HNon-operating: Sawtooth: 40G, 11 msec (Z-axis) / MILSTD- 810H
Certification	CE (EN 62368 / EN55032 / EN55035) & LVDFCC Class-A
