MPT-3110R

Name: MPT-3110R
Brand: IBASE Technology
SKU: MPT-3110R
Availability: InStock

EN50155/EN45545 Certified Intel® Atom® x7000RE Series Processor Railway Computer System with M12 Connection and WWAN Redundancy

EN50155/EN45545 Certified Intel® Atom® x7000RE Series Processor Railway Computer System with M12 Connection and WWAN Redundancy. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7433RE Processor

MEMORY

1x DDR5-4800 SO-DIMM socketUp to 16GB

STORAGE

1x M.2 2280 M-Key socket for SSD (SATA III)1x 2,5" removable device bay for SSD

OPERATING TEMP.

-40°C ~70°C (-40°F~158°F) (w/ industrial-grade SSD)

MPT R Series EN50155…Railway Computer System

REQUEST QUOTE REQUEST DATASHEET

P/N # MPT-3110R

Driver

Specifications

19 ROWS

System Mainboard	MBT-3111
CPU Type	Intel® Atom® x7433RE Processor
Processor Speed	Up to 2.7GHz
Memory	1x DDR5-4800 SO-DIMM socketUp to 16GB

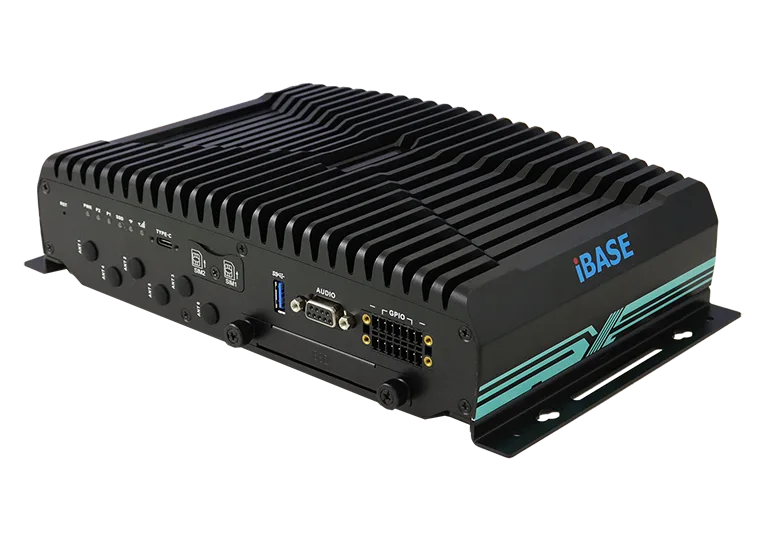

Front panel I/O	1x USB3.2 Gen2 Type-A connector2x external accessible SIM socket1x USB TYPE-C connector with screw-lock1x Removable 2.5" SSD device bay1x DB9 female connector for Line-out & MIC-in1x 14-pin terminal block 6-in & 6-out digital I/O with 24V input and output1x reset button6x light-pipe for status LED Indicators8x Antenna holes

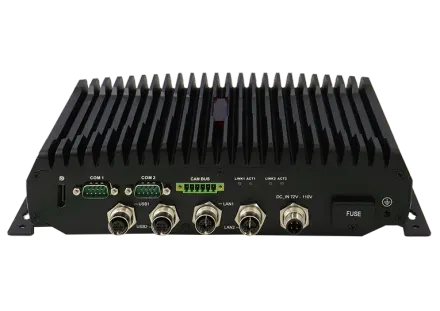

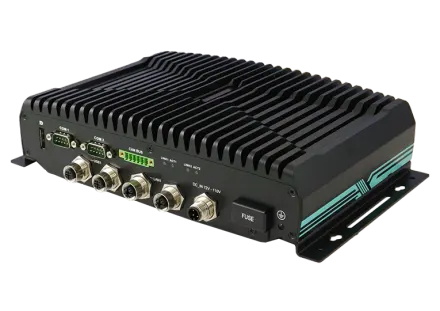

Rear Panel External I/O	2x M12 X-code 8P female for 2.5 GbE LAN1/LAN21x M12 4 pins A-code male for power input2x M12 8 pins A-code female for 2x USB2.01x DisplayPort, 1x VGA connector (Option)1x Terminal block DIP 6 pins for 2 x Can FD master2x DB9M for COM#1 (RS232/422/485) / COM#2 (RS232 only)1x M3 with washer screw hole for grounding connection4x light-pipe for LAN status LED Indicators
Storage	1x M.2 2280 M-Key socket for SSD (SATA III)1x 2,5" removable device bay for SSD
Expansion slots	1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus)1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (USB3.2 Gen.1 )1x M.2 2280 M-Key socket for SSD device (SATA III)1x Mini PCI-E full-sized socket for MVB & add-on card (PCI-E + USB2.0 + SMBus)1x Mini PCIe half-sized socket for GPS module (USB2.0 only)
Power Supply	MPT-3110R (24V)MPT-3110RH (72V~110V)
Construction	Aluminum
Chassis Color	Black
Mounting	wall mount
Dimensions	250 (W) x 150 (D) x 55 (H) mm9.84” (W) x 5.9” (D) x 2.16” (H)
Operating Temperature	-40°C ~70°C (-40°F~158°F) (w/ industrial-grade SSD)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% RH @45°C (non-condensing)
Vibration	Function: 1 m/s2, 5Hz~150 Hz (EN 61373)Lifetime: 7.9 m/s2, 5Hz~150 Hz (EN 61373)
Shock	50 m/s2, 30 msec (EN 61373)
Certified	EN 50155:2021, EN 45545 -2 HL1/2/3 2020CE (EN 62368-1 / EN55032 / EN55035), FCC Class-A
