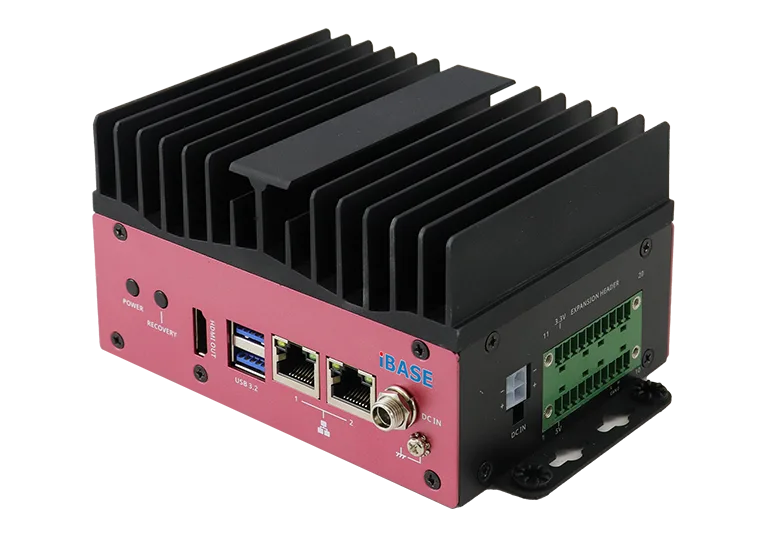

EC3020
Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series
Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | NVIDIA® Jetson Orin™ NX 16GB/8GBNVIDIA® Jetson Orin™ Nano 8GBModule with carrier board |
|---|---|
| CPU Type | NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 |
| System Speed | EC3020-NX16/ EC3020-NX-8: 2.0 GHzEC3020-NANO8: 1.7 GHz |
| Memory | NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 4GB 64-bit LPDDR5 51 GB/s |
| AI Inference Computing Power | NX 16GB delivery up to 157 TOPSNX 8GB delivery up to 117 TOPSNano 8GB delivery up to 67 TOPS |
| Front Panel External I/O | 2x Gigabit Ethernet (1x PoE, Optional)1x HDMI Type-A2x USB 3.2 Gen2 Type-A1x USB 2.0 Type-C for Recovery1x Power button1x Recovery button |
| Rear Panel External I/O | 2x Antenna1x 12-24V DC Jack input with Lock |
| Expansion Slot | 1x M.2 2230 E-key for WiFi/BT, 1x 20-pin Expansion Terminal Block supports 2x I2C, 2x UART, 4x GPIOs, 1x CAN PSE Board/OOB Board/5G Daughter Board (Optional) |
| Storage | 1x M.2 2280 M-key for NVMe (Default NVMe 256 GB) |
| Power Requirement | DC 12~24V |
| Power Supply | 90W |
| Construction | Aluminum & steel |
| Chassis Color | Black & Red |
| Mounting | wall mount |
| Weight | 1.25 kg |
| Dimensions | 126mm (W) x 96mm (D) x 73.9mm (H) |
| Operating Temperature | -25°C~40°C (Orin NX super mode)-25°C~60°C (Orin NX normal/Nano normal/Nano super mode) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Relative Humidity | 5%~95% (non-condensing) |
| Vibration | Operating: 1 grms / 3~500Hz / random operation |
| Shock | Operating: 20 g / 11 msNon-operating: 40 g / 11 ms |
| Certification | CE/FCC, Class A |
| Operating System | Ubuntu 22.04JetPack 6.2 |

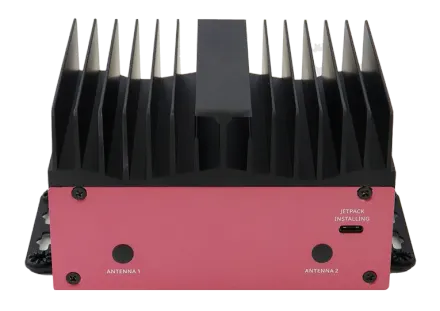

I/O — Rear panel

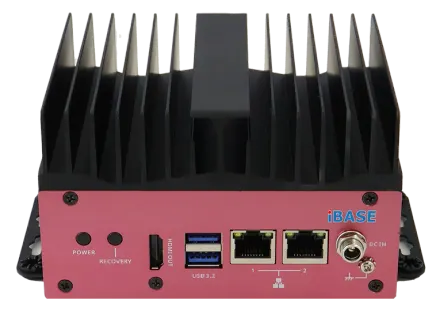

Front access
Where the EC3020 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
