EC3020

Name: EC3020
Brand: IBASE Technology
SKU: EC3020
Availability: InStock

Ordinateur Edge AI — NVIDIA® Jetson Orin™ NX and Orin™ Nano Series

Ordinateur Edge AI — NVIDIA® Jetson Orin™ NX and Orin™ Nano Series. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3

MÉMOIRE

NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 4GB 64-bit LPDDR5 51 GB/s

STOCKAGE

1x M.2 2280 M-key for NVMe (Default NVMe 256 GB)

ENVIRONNEMENT

-25°C~40°C (Orin NX super mode)-25°C~60°C (Orin NX normal/Nano normal/Nano super mode)

Edge AI ComputerAI Computing Platform

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # EC3020

Spécifications

23 LIGNES

Carte mère du système	NVIDIA® Jetson Orin™ NX 16GB/8GBNVIDIA® Jetson Orin™ Nano 8GBModule with carrier board
Type de processeur	NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
Vitesse du système	EC3020-NX16/ EC3020-NX-8: 2.0 GHzEC3020-NANO8: 1.7 GHz
Mémoire	NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 4GB 64-bit LPDDR5 51 GB/s
Puissance de calcul d’inférence IA	NX 16GB delivery up to 157 TOPSNX 8GB delivery up to 117 TOPSNano 8GB delivery up to 67 TOPS

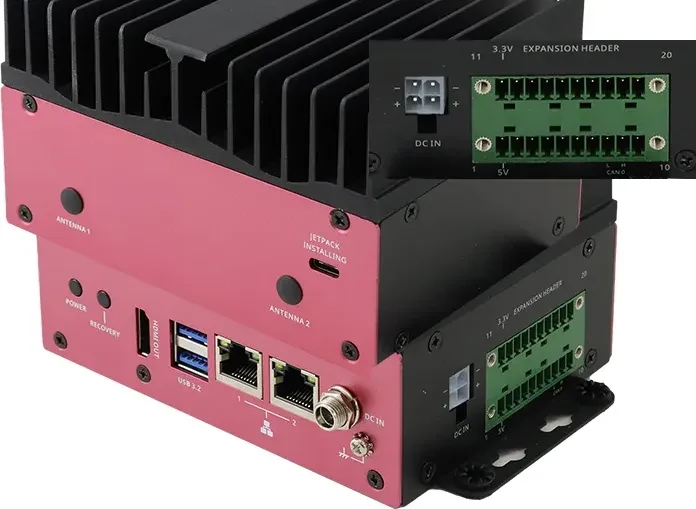

E/S externes du panneau avant	2x Gigabit Ethernet (1x PoE, Optional)1x HDMI Type-A2x USB 3.2 Gen2 Type-A1x USB 2.0 Type-C for Recovery1x Power button1x Recovery button
E/S externes du panneau arrière	2x Antenna1x 12-24V DC Jack input with Lock
Emplacement d’extension	1x M.2 2230 E-key for WiFi/BT, 1x 20-pin Expansion Terminal Block supports 2x I2C, 2x UART, 4x GPIOs, 1x CAN PSE Board/OOB Board/5G Daughter Board (Optional)
Stockage	1x M.2 2280 M-key for NVMe (Default NVMe 256 GB)
Alimentation requise	DC 12~24V
Alimentation	90W
Construction	Aluminum & steel
Couleur du châssis	Black & Red
Montage	wall mount
Poids	1.25 kg
Dimensions	126mm (W) x 96mm (D) x 73.9mm (H)
Température de fonctionnement	-25°C~40°C (Orin NX super mode)-25°C~60°C (Orin NX normal/Nano normal/Nano super mode)
Température d’entreposage	-40°C~85°C (-40°F~185°F)
Humidité relative	5%~95% (non-condensing)
Vibrations	Operating: 1 grms / 3~500Hz / random operation
Chocs	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE/FCC, Class A
Système d’exploitation	Ubuntu 22.04JetPack 6.2
