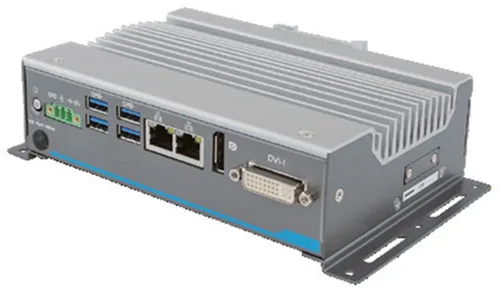

AGS100T-Z

Name: AGS100T-Z
Brand: IBASE Technology
SKU: AGS100T-Z
Availability: InStock

AGS100 - AGS100 IoT Gateway System (din-rail) with Intel® Atom™ x7/x5, Pentium® and Celeron® Processors

AGS100 - AGS100 IoT Gateway System (din-rail) with Intel® Atom™ x7/x5, Pentium® and Celeron® Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Atom™ x7-E3950/x5-E3930 and Pentium® N4200/ Celeron® N3350 Series processors

MEMORY

1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

STORAGE

1x mSATA socket (Mini-PCI-E) · 1x 2242 M.2 B-Key socket for mSATA SSD

OPERATING TEMP.

-40°C to 70°C (-40°F~158°F) (12W Max. CPU) · -20°C to 60°C (-4°F~140°F) (6W CPU)

REQUEST QUOTE REQUEST DATASHEET

P/N # AGS100T-Z

Specifications

22 ROWS

System Mainboard	IB801
CPU Type	Intel® Atom™ x7-E3950/x5-E3930 and Pentium® N4200/ Celeron® N3350 Series processors
System Speed	Up to 2.5GHz
Memory	1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
Construction	Aluminum and Steel
Chassis Color	Silver (Aluminum)
Rear Panel External I/O	1x DVI-I + 1x DisplayPort connector · 4x USB 3.0 ports · 2x RJ45 Gigabit Ethernet port · 3x LED indicators (HDD, WLAN, WWAN) · 1x power button with green LED · 1x 3-pins DC-in terminal block type for 9-36V · 1x Antenna hole for WLAN module
Left Panel External I/O	2x RS232/422/485 port for COM#1/COM#2 · 1x Antenna hole for WLAN module · 1x Speaker-out connector
Right Panel External I/O	1x SIM card slot
Expansion Slots	1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA) · 1x 2230 M.2 E-Key socket for WLAN and BT (USB 2.0 + PCI-E) · 1x 3042 M.2 B-Key socket for WWAN and SSD (USB 2.0 + SATA)
Storage	1x mSATA socket (Mini-PCI-E) · 1x 2242 M.2 B-Key socket for mSATA SSD
Mounting	DIN-rail mounting (DIN-rail mount kit included) · Desktop or wall mounting (wall mount kit included)
Weight	1kg
Dimensions	160mm (W) x 110mm (D) x 44mm (H) · 6.3” (W) x 4.33” (D) x 1.73” (H)
Certification	CE / LVD / FCC Class B
Operating Temperature	-40°C to 70°C (-40°F~158°F) (12W Max. CPU) · -20°C to 60°C (-4°F~140°F) (6W CPU)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Operatiing: 2.0 grms / 5~500Hz / random operation · (with IEC 60068-2-64)
Non-Operating	3.0 grms / 5~500Hz / random · operation (with IEC 60068-2-64)
Shock	Operating : · 30G/11 ms Duration (with MIL-STD-810G)
Non-operating	40G/11 ms Duration (with MIL-STD-810G)

Features

6 ROWS

Feature 1	Supports Intel® Atom™ x7-E3950/x5-E3930 and Pentium® N4200 / Celeron® N3350 Series processors
Feature 2	Over/Under/Reverse voltage protection
Feature 3	Wide-range operating temperature from -40°C to 70°C
Feature 4	9~36V DC wide-range power input
Feature 5	Rugged and fanless design
Feature 6	DIN-rail mount and Wall mount compatibility

Ordering Information

5 ROWS

AGS100-I50	- Fanless DIN-rail system w/ Intel® Atom™processor E3950, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100-I30	- Fanless DIN-rail system w/ Intel® Atom™processor E3930, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100-420 (MOQ)	- Fanless DIN-rail system w/ Intel® Pentium® processor N4200, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100-335	- Fanless DIN-rail system w/ Intel® Celeron® processor N3350, 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
60W power adaptor (Optional)	- 60W (12V@5A) power adaptor (bare wire type)
