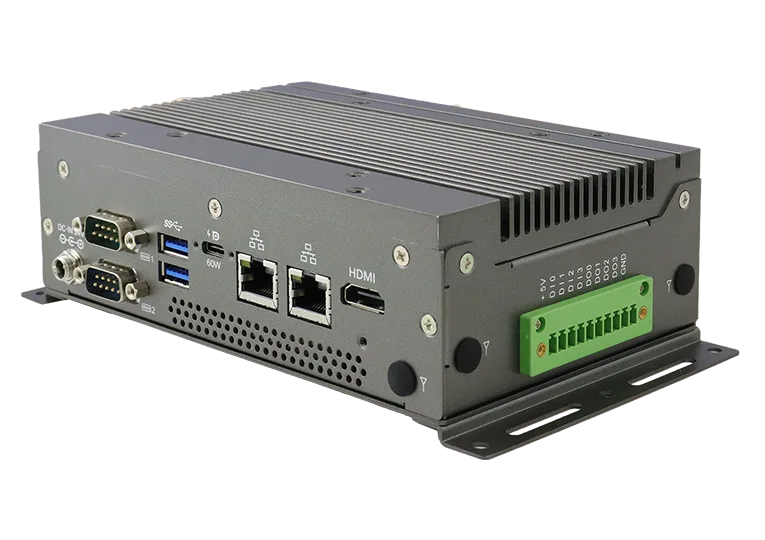

ACS100

Name: ACS100
Brand: IBASE Technology
SKU: ACS100
Availability: InStock

Advanced Compact System with Intel® Atom® N150 / N97 / Core™ 3 N355 Processors

Advanced Compact System with Intel® Atom® N150 / N97 / Core™ 3 N355 Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Core™ 3 N355 Processor (8 Cores)Intel® Atom™ N150 Processor (4 Cores)Intel® Atom™ N97 Processor (4 Cores)

MEMORY

1x DDR5-4800 SO-DIMM, Max. 16GB

STORAGE

1x M.2 M-key (2280)

OPERATING TEMP.

N97, N355 : -20°C~40°C (-4°F~104°F)N150: -20°C~70°C (-4°F~158°F) *with airflow

ACS Series Advanced Compact…Edge Computing Wide…

REQUEST QUOTE DATASHEET (PDF)

P/N # ACS100

Manual Diagram Driver

Specifications

19 ROWS

System Mainboard	MBP-210-N97/ MBP-210-N150 / MBP-210-N355
CPU Type	Intel® Core™ 3 N355 Processor (8 Cores)Intel® Atom™ N150 Processor (4 Cores)Intel® Atom™ N97 Processor (4 Cores)
System Speed	N150 and N97 up to 3.6GHz, N355 up to 3.9GHz
Memory	1x DDR5-4800 SO-DIMM, Max. 16GB

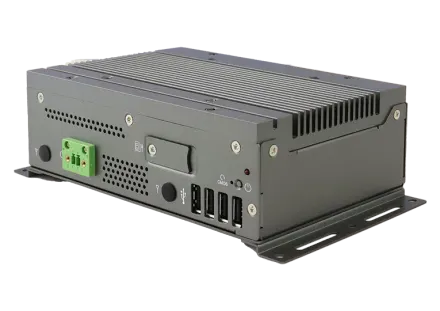

Front Panel External I/O	1x Power button1x Clear CMOS button4x USB 2.01x Nano SIM slot1x Digital I/O (4-in/4-out), 5V and GND3x Antenna holes
Rear Panel External I/O	2x USB 3.21x HDMI2x DB9 for COM#1 (RS232/422/485), COM#2 RS232 Only2x LAN1x DC-in connector for 19V ~ 24V1x Antenna holes
Expansion Slots	3x M.2 sockets (B-key/ E-key and M-key)
Storage	1x M.2 M-key (2280)
Construction	Aluminum & steel
Chassis Color	Black/Gray
Mounting	VESA 75x75 and 100x100 mm, Optional DIN-Rail kit
Dimensions	167mm (W) x 110mm (D) x 54.15mm (H)6.58” (W) x 4.3” (D) x 2.13” (H)
Weight	1.25 kg
Operating Temperature	N97, N355 : -20°C~40°C (-4°F~104°F)N150: -20°C~70°C (-4°F~158°F) *with airflow
Storage Temperature	-30~70°C (-22°F~158°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating: 3Grms / 5~500Hz
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE/LVD/FCC Class B
