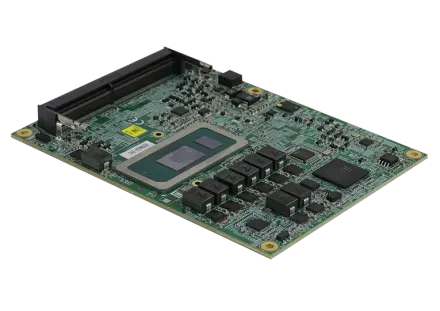

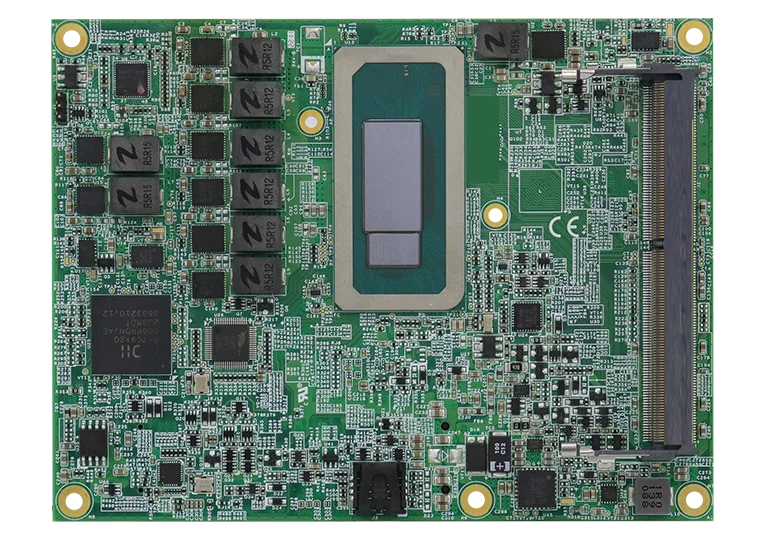

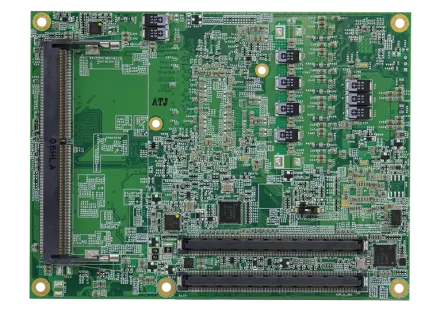

ET980
Module CPU COM Express Type 6 (R3.0) — 12th Gen Intel® Core™ i Mobile Processors
Module CPU COM Express Type 6 (R3.0) — 12th Gen Intel® Core™ i Mobile Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | BGA1744 for 12th Gen Intel® Core™i7/i5/i3 processors |
|---|---|
| PCH | N/A |
| Mémoire | 2x DDR4-3200 SO-DIMM sockets, Max. 64GB, ECC compatible |
| BIOS | AMI |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Interface de stockage | N/A |
| Emplacements d’extension | 1x PCI-E(x16), 1x PCI-E(x4), 4x PCI-E(x1) to carrier board |
| Contrôleur graphique | 12th Gen Intel® Core™ P-series processor integrated graphics |
| Sortie vidéo | HDMI, DisplayPort, VGA, LVDS or eDP on carrier board |
| Ethernet | Intel® I226LM 2.5 GbERJ45 on carrier board |
| Chipset d’E/S | Fintek F81804U-I onboard |
| Port série | 2x COM ports (Tx/Rx only) |
| USB 2.0 | 8x USB2.0 via carrier board |
| USB 3.X | 4x USB 3.2 (10Gbps) via carrier board |
| Serial ATA | 2x SATA III via carrier board |
| Audio | Built-in HD Audio controller |
| TPM | TPM (2.0) |
| Autres | Power: +12 V and +5 VSB for ATX, +12V for ATDigital I/O (4-in/4-out) , Watchdog Timer |
| Dimensions (L x l) | 125mm x 95mm (4.92“ x 3.74“) |
| Consommation électrique | Intel® Core™ i5-1250PE 1.50GHz w/ 2x 16GB DDR4-3200 +12V:2.6A |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 90% (non-condensing @60) |
E/S — Panneau arrière
Accès frontal
Où le ET980 est déployé
Space-constrained products needing a certified compute module rather than a full board.
Custom carrier boards built around a standardized, sourceable CPU module.
Low-power modules for diagnostic and portable instrument designs.
Compact compute modules for motion controllers and mobile robotics platforms.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSCommande
| ET980LV-I7U | - COM Express (Type 6) CPU Module w/ Intel® Core™ i7-1265UE onboard, LVDS support Demander une soumission |
|---|---|
| ET980LV-I7P | - COM Express (Type 6) CPU Module w/ Intel® Core™ i7-1270PE onboard, LVDS support Demander une soumission |
| ET980LV-I5U | - COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1245UE onboard, LVDS support Demander une soumission |
| ET980-I5U | - COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1245UE onboard, eDP support Demander une soumission |
| ET980LV-I5P | - COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1250PE onboard, LVDS support Demander une soumission |
| ET980-I3P | - COM Express (Type 6) CPU Module w/ Intel® Core™ i3-1220PE onboard, eDP support Demander une soumission |
| ET980LV-I3P | - COM Express (Type 6) CPU Module w/ Intel® Core™ i3-1220PE onboard, LVDS support Demander une soumission |
