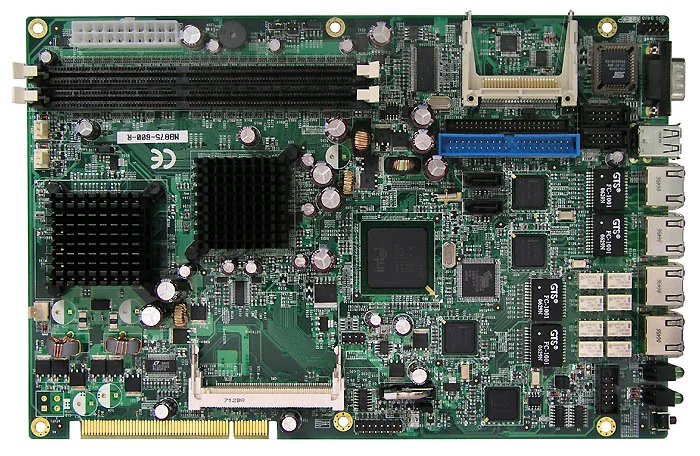

MB875

Name: MB875
Brand: IBASE Technology
SKU: MB875
Availability: InStock

Carte mère Intel® 852GM Chipset Custom — 1U Rackmount

Carte mère Intel® 852GM Chipset Custom — 1U Rackmount. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Socket 479 or CPU on board

MÉMOIRE

Two DDR266/333 sockets support up to 2GB

STOCKAGE

CompactFlash socket, Type II, via IDE2 · Supports Intel® Pentium® M / Intel® Celeron® M processors, up to 2.0GHz @ 400MHz FSB · Intel 852GM Chipset, Two DDR socket, Max. 2GB · Four Intel® 82541PI GbE controllers for four GbE support · Edge connector supporting PCI 33MHz/32-bit interfaces · 4 x COM, 4 x USB 2.0, 2 x SATA, CF socket · Watchdogi timer, 1 x PCI, 1 x Mini PCI · 180mm x 270mm

ETHERNET

Four Intel® 82541PI Gigabit LAN · Four RJ-45 ports on board

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MB875

Documentation Introduction au chien de garde

Spécifications

24 LIGNES

Socle du processeur	Socket 479 or CPU on board
Processeur	Supports Intel® Pentium® M, Celeron® M · Up to 2.0GHz
Bus frontal du processeur (FSB)	400MHz
Chipset	Intel® 852GM chipset + ICH4
BIOS	Award BIOS
Mémoire système	Two DDR266/333 sockets support up to 2GB
VGA	Intel® 852GM integrated graphics · DVMT 2.0 shared memory, Max. 96MB
LAN	Four Intel® 82541PI Gigabit LAN · Four RJ-45 ports on board
Multi-E/S	Winbond W83627HF, Finktek 81216 · Supports 2x IDE (UDMA33/66/100), 2x SATA, · 4x RS-232, 1x KB, 1x Mouse
Interface IDE	Two enhanced IDE channel supports: · IDE channel 1 - 40 pin for master; 44 pin for slave · IDE channel 2 - CF socket for master · 2 IDE devices; supports UDMA33/66/100
SSD Interface	CompactFlash socket, Type II, via IDE2 · Supports Intel® Pentium® M / Intel® Celeron® M processors, up to 2.0GHz @ 400MHz FSB · Intel 852GM Chipset, Two DDR socket, Max. 2GB · Four Intel® 82541PI GbE controllers for four GbE support · Edge connector supporting PCI 33MHz/32-bit interfaces · 4 x COM, 4 x USB 2.0, 2 x SATA, CF socket · Watchdogi timer, 1 x PCI, 1 x Mini PCI · 180mm x 270mm
Serial ATA	Supports 2 ports
USB (2.0)	Supports 2 USB ports on board and 2 USB ports via pin header
Minuterie de surveillance	256 levels
Connecteur clavier et souris	PS/2 type
Connecteurs de bord	4x RJ45, COM1, 2x USB 2.0
Extension	1 x Mini PCI socket · 1 x PCI Edge connector supporting PCI 33MHz/32-bit interfaces
Connecteur d’alimentation	ATX power connector
Autres caractéristiques	GPInput switch, LEDs on edge include Power LED · HDD Access LED and GPO LED 1/2.
Format	Custom Motherboard
Dimensions	180mm x 270mm
Température de fonctionnement	0°C~60°C (32°F~140°F)
Température d’entreposage	-20°C~80°C (-68°F~176°F)
Humidité relative	10%~90% (non-condensing)
