INA5606

Name: INA5606
Brand: IBASE Technology
SKU: INA5606
Availability: InStock

Appliance réseau Enterprise 1U uCPE/SD-WAN — Intel® Xeon® D Processor and up to 8x GbE and 4x 25GbE Ports

Appliance réseau Enterprise 1U uCPE/SD-WAN — Intel® Xeon® D Processor and up to 8x GbE and 4x 25GbE Ports. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Xeon® D Processor

MÉMOIRE

4x DDR4 DIMMs, Max. 256GB RDIMM or 512GB LRDIMM up to 3200MHz

STOCKAGE

1x M.2(B-Key); Supports SATA and PCI-E · 2x 2.5” Swappable SATA drive bay

AFFICHAGE

1x VGA (via optional IDN100 IPMI Module)

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # INA5606

Spécifications

18 LIGNES

Processeur	Intel® Xeon® D Processor
Chipset	NA
Mémoire	4x DDR4 DIMMs, Max. 256GB RDIMM or 512GB LRDIMM up to 3200MHz
Affichage	1x VGA (via optional IDN100 IPMI Module)
Ethernet	4x GbE RJ45 ports (Intel® i350 AM4) · 4x GbE RJ45 ports (Intel® i211) with 2 pair bypass · 4x 25 GbE SFP28 ports (Intel® C827)
Dérivation	2x Segment (LAN5/6 and LAN 7/8)
Extension	1x PCI-E x16 Expansion slot (Optional by SKU) · 1x PCI-E x8 Expansion slot(Optional by SKU) · 1x M.2(B-Key) supports USB 3.0 and PCI-E signal · 1x mini PCI-E supports PCI-E and USB 2.0
IPMI	Optional module; compliant with IPMI 2.0
Stockage	1x M.2(B-Key); Supports SATA and PCI-E · 2x 2.5” Swappable SATA drive bay
TPM	TPM2.0 (Optional TPM2.0 module)

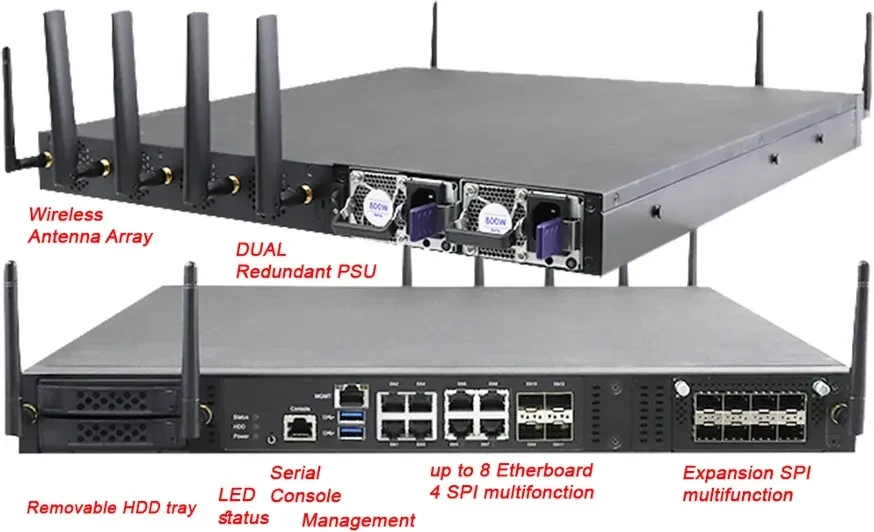

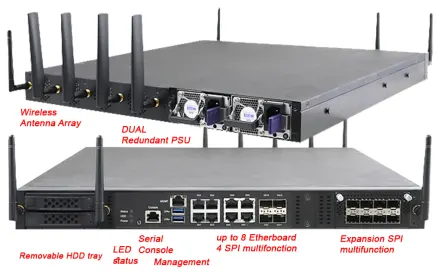

E/S	3x LED (Power/ HDD/ Status) · 1x RJ45 Console Port · 1x RJ45 Management Port · 2x USB 3.0 Port
Alimentation	Full range 800W CRPS 1+1 Redundant Power Supply
Dimensions	443.7(W) x 450(D) x 43.8(H) mm · 17.46" (W) x17.71" (D) x 1.72" (H)
Poids	15 Kg (estimated)
Certification	CE/FCC
Température de fonctionnement	0°C ~ 40°C (32°F ~ 104°F)
Température d’entreposage	-20° ~ 70°C (-4°F ~ 158°F)
Humidité en fonctionnement	5 ~ 90%

Caractéristiques

9 LIGNES

Caractéristique 1	Intel® Xeon® D Processor
Caractéristique 2	4x DDR4 DIMMs, Max. 256GB RDIMM or Max. 512GB LRDIMM
Caractéristique 3	8x GbE RJ45 with 2 pair bypass and 4x 25GbE SFP28 on board
Caractéristique 4	1x M.2 for LTE/5G with dual SIM slot
Caractéristique 5	1x mini PCI-E for WiFi / WiFi 6
Caractéristique 6	2x 2.5" SATA/NVMe Swappable HDD/SSD
Caractéristique 7	Optional 1x PCI-E x16 Expansion Slot (by SKU)
Caractéristique 8	Optional 1x IBN-NIC Slot (by SKU)
Caractéristique 9	Optional IPMI 2.0 Module

Informations de commande

2 LIGNES

INA5606-EXP	- INA5606-EXP 1U mid-range uCPE Appliance, MBN606 Intel® Xeon® D Processor, 4x DDR4 DIMMs, Max. 8x GbE Ports and 4x 25 GbE SFP28 Ports, 800W CRPS 1+1 Redundant PSU, CPU Cooler, Optional IPMI, 1x PCI-E x16 slot, 2x 2.5” SDD Tray, Barebone without RAM/HDD/SSD
INA5606-NIC	- INA5606-NIC 1U mid-range uCPE Appliance, MBN606 Intel® Xeon® D Processor, 4x DDR4 DIMMs, Max. 8x GbE Ports and 4x 25 GbE SFP28 Ports, 800W CRPS 1+1 Redundant PSU, CPU Cooler, Optional IPMI, 1x IBN-NIC slot, 2x 2.5” SDD Tray, Barebone without RAM/HDD/SSD
