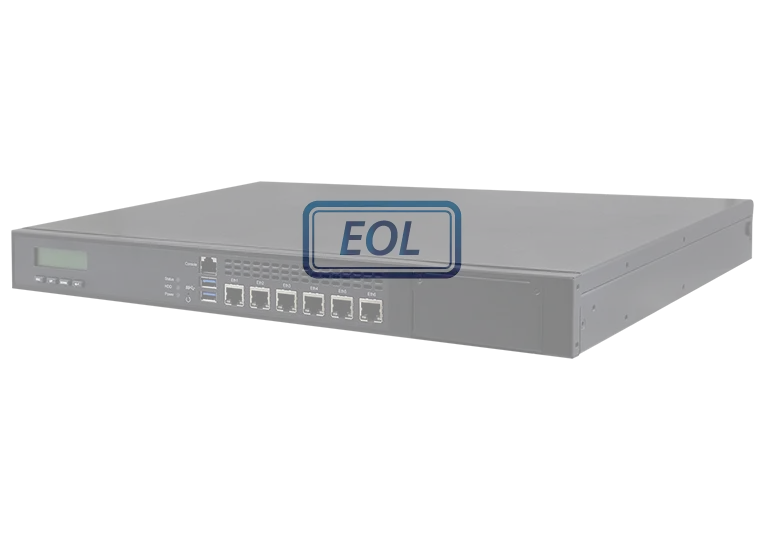

INA3600

Name: INA3600
Brand: IBASE Technology
SKU: INA3600
Availability: InStock

Appliance réseau Mainstream 1U — 10th Gen Intel® Xeon® W / Core™ i9/i7/i5/i3 Pentium® Gold / Celeron® Processor & up to 14 GbE Ports

Appliance réseau Mainstream 1U — 10th Gen Intel® Xeon® W / Core™ i9/i7/i5/i3 Pentium® Gold / Celeron® Processor & up to 14 GbE Ports. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

INA3600W: LGA1200 Socket for Intel® Xeon® / Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processorINA3600H: LGA1200 Socket for Intel® Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processor

MÉMOIRE

2x DDR4 UDIMMsMax. 64GB

STOCKAGE

3x 2.5" SATA drive bay (by SKU)

AFFICHAGE

1x VGA1x LCM

Mainstream 1U Network…Rackmount Network Appliance

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # INA3600

Spécifications

18 LIGNES

Processeur	INA3600W: LGA1200 Socket for Intel® Xeon® / Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processorINA3600H: LGA1200 Socket for Intel® Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processor
Chipset	INA3600W: Intel® W480E PCH chipsetINA3600H: Intel® H420E PCH chipset
Mémoire	2x DDR4 UDIMMsMax. 64GB
Affichage	1x VGA1x LCM
Ethernet	INA3600W:6x Intel® I211-AT GbE on boardOptional NIC module slot, Max. 8 LAN portsINA3600H:6x Intel® I211-AT GbE on board
Dérivation	2-Segments, LAN3/4 & 5/6
Extension	1x PCI-E x16 slot (8-lane) for INA3600W
IPMI	N/A
Stockage	3x 2.5" SATA drive bay (by SKU)
TPM	TPM 2.0
E/S	1x LCM (by SKU)3x LED (Power/ HDD/ Status)1x Reset button1x RJ45 console2x USB3.1
Alimentation	Full range 300W power supply
Dimensions	438 (W) x 329 (D) x 44 (H) mm17.24" (W) x12.95" (D) x 1.73" (H)
Poids	9.0 kg (19.84 lbs)
Température de fonctionnement	0°C ~ 40°C (32°F ~ 104°F)
Température d’entreposage	-20° ~ 70°C (-4°F ~ 158°F)
Humidité en fonctionnement	5 ~ 90%
Certification	CE/FCC
