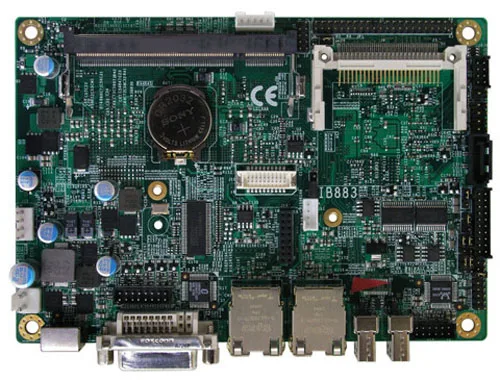

IB883
Système — Intel Atom N270 SBC, 3.5-inch SBC, (Atom) Embedded board., barebone
Système — Intel Atom N270 SBC, 3.5-inch SBC, (Atom) Embedded board., barebone. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | Intel Atom™ processor N270 at 1.6GHz, FSB533 |
|---|---|
| Chipset | Mobile Intel 945GSE Express, ICH7M |
| BIOS | Award BIOS, ACPI supported |
| Mémoire système | One DDR2 SODIMM socket, single channel · Supports up to 1GB DDR2 400/533/667 SDRAM |
| VGA | Intel 945GSE VGA GMA950 for CRT / LVDS with help of Onboard Chrontel CH7307 for DVI · Supports dual display in combination of LVDS, onboard · DVI, CRT |
| LAN | Dual Intel PCI-Express Gigabit LAN · RJ-45 on board |
| Audio | ICH7M Chipset built-in Audio controller · ALC 662 HDA Codec · Supports 5.1-Channel (Line-in, Line-out & Microphone) |
| Interface de stockage | One channel IDE; supports Ultra DMA 33 · 44-pin header x 1 (IDE1) · One CF socket Supporct CompactFlash · One SATA interface Support HDD SATA |
| Ports série | One RS-232, one RS-232/422/485 |
| USB | Two ports on board · 2 ports via pin header · Supports Intel Atom™ processor, 1.6GHz speed, 533MHz FSB · One DDR2 SDRAM SO-DIMM; Supports.1GB memory · Intel 945GSE VGA for CRT / LVDS · Video Edge connector DVI · Onboard Chrontel CH7307 for DVI · Dual Intel PCI-Express Gigabit LAN · 1x SATA, 4x USB 2.0, 2x COM, CF socket · Watchdog timer, Digital I/O · LPC/Smart battery interface |
| Minuterie de surveillance | Generates system reset; 256 levels |
| E/S numériques | 4 in / 4 out |
| Connecteur clavier et souris | PS/2 type |
| Connecteurs de bord | PS/2 KB/Mouse, USB1/2, 2x RJ45, DVI, DC-in |
| Connecteur d’alimentation | DC Power jack +12V DC-in |
| Format | 3.5-inch SBC |

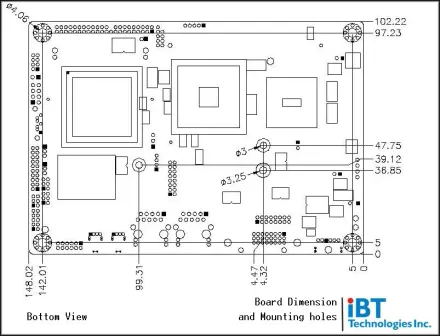

| Dimensions | 102mm x 147mm |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 10%~90% (non-condensing) |
E/S — Panneau arrière
Accès frontal
Où le IB883 est déployé
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
