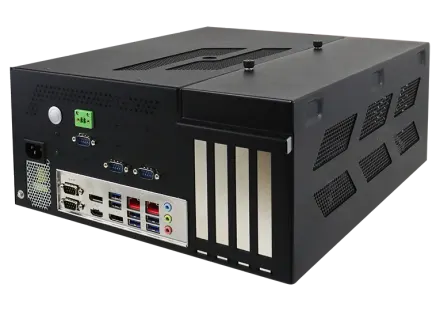

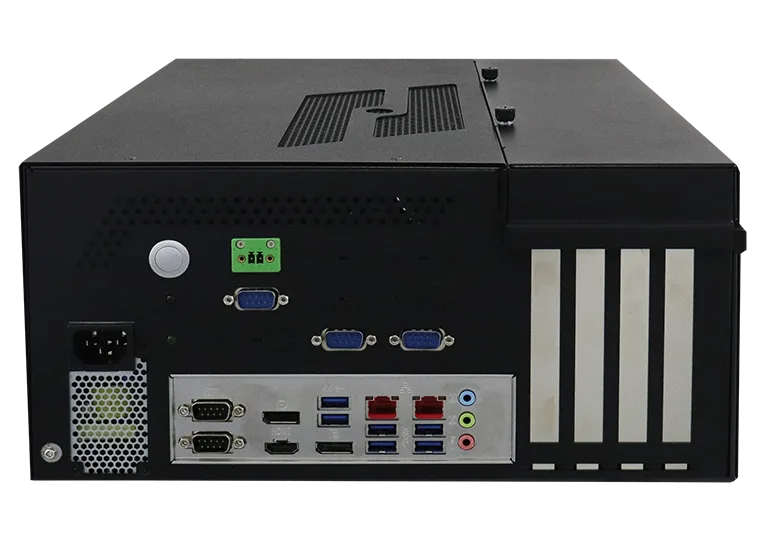

CMB108

Name: CMB108
Brand: IBASE Technology
SKU: CMB108
Availability: InStock

Ordinateur de haute performance extensible industriel — 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 DT processors (TDP 65W)

Ordinateur de haute performance extensible industriel — 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 DT processors (TDP 65W). Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Core™ 200E series and 14th/13th/12th Gen Intel® Core™ DT processors (TDP 65W)

MÉMOIRE

2x DDR5 UDIMM, Max. 64GB

STOCKAGE

4x 2.5” SATA (supports RAID 0/1)+ 2x M.2 M-key (2280) storage

ENVIRONNEMENT

0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, non-condensing

CMB Series Expandable SystemExpandable Embedded System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # CMB108

Pilote

Spécifications

19 LIGNES

Carte mère du système	MB998 Series MicroATX motherboards
Type de processeur	Intel® Core™ 200E series and 14th/13th/12th Gen Intel® Core™ DT processors (TDP 65W)
Vitesse du système	Up to 5.60 GHz (W680R supports ECC by CPU SKUs)
Mémoire	2x DDR5 UDIMM, Max. 64GB
E/S externes du panneau avant	power button2-pin remote boot extension designDetachable side cover for GFX Card 4x Slots2x DisplayPort + HDMI + DVI-D [optional]6x USB 3.0 ports; 2x RJ45 for 2.5GbE2x RS232/422/485, 2x RS2321x Audio port for [Line-in / Line-out / Mic-in]
E/S externes du panneau arrière	Pluggable cooling-fan
Emplacements d’extension	1x PCI-E(x16) [Gen.5], 1x PCI-E(x4) [Gen.4], 1x PCI-E(x4) [Gen.3]
Stockage	4x 2.5” SATA (supports RAID 0/1)+ 2x M.2 M-key (2280) storage
Construction	SECC
Couleur du châssis	Black
Montage	Desktop & wall mount
Dimensions	325mm(W) x 350.0mm(D) x 156.0mm(H)
Poids	Depends on the configuration of power supply and motherboard related components
Température de fonctionnement	0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, non-condensing
Température d’entreposage	-20°C~80°C (-4°F~176°F), @60°C, non-condensing
Humidité relative	10~95%, non-condensing @60°C
Vibrations	With SSD: 1Grms, IEC 60068-2-64, random, 5Hz~500Hz
Chocs	With SSD:Operating 20G, IEC 60068-2-27, half-sine, 11 ms duration With SSDNon-Operating 40G, IEC 60068-2-27, half-sine, 11 ms duration With SSD
Certification	CE / FCC Class A / LVD
