AMI220

Name: AMI220
Brand: IBASE Technology
SKU: AMI220
Availability: InStock

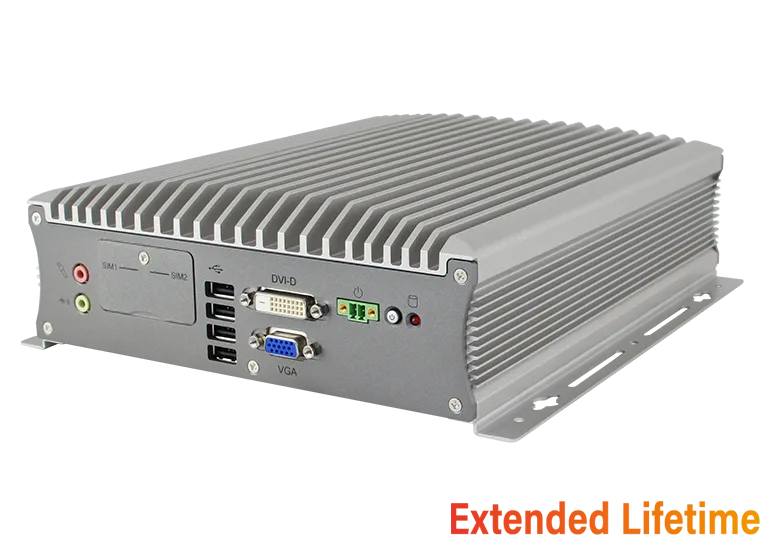

Système sans ventilateur ni aération compact — 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Système sans ventilateur ni aération compact — 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)

MÉMOIRE

2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

STOCKAGE

1x 2.5" HDD/SSD (Internal)2nd 2.5" HDD/SSD (External-accessible)2x mSATA (AMI220AFS or AMI222AFS )1x mSATA (AMI220EFS or AMI222EFS )RAID 0,1,5,10 support (AMI220AFS or AMI222AFS only)

ENVIRONNEMENT

-10°C to 50°C (14°F~122°F)

AMI Series Expandable…Expandable Embedded System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # AMI220

Documentation Pilote

Spécifications

19 LIGNES

Carte mère du système	MB220AF-1 with Intel® Q170 PCHMB220EF-1 with Intel® H110 PCH
Type de processeur	7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
Vitesse du système	Up to 3.4GHz
Mémoire	2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

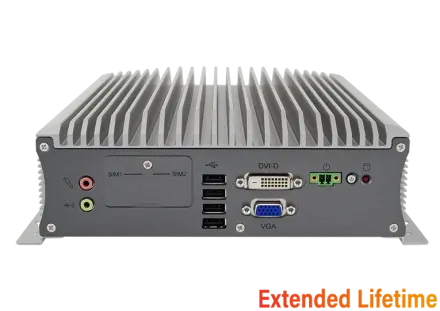

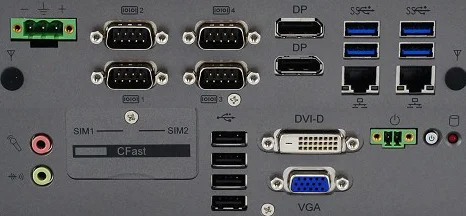

E/S externes du panneau avant	1x DVI-D + 1x VGA1x Audio jack for MIC-in / Line-out4x USB 2.0 ports1x Red HDD LED1x Power button with green LED indicator2x SIM card slots1x 2-pin terminal block for external power button

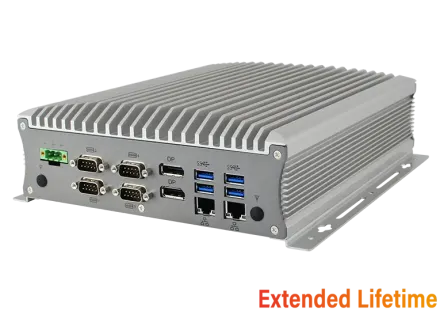

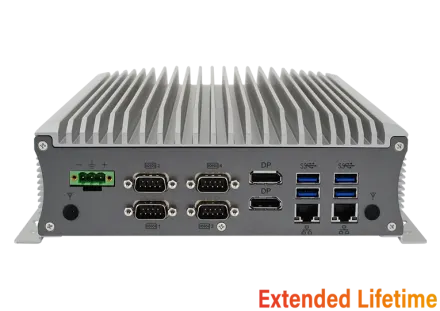

E/S externes du panneau arrière	1x RS232/RS422/485 port for COM#13x RS232 port for COM#2/COM#3/COM#42x DisplayPort connector1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports1x 3 pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)2x Antenna holes
Emplacements d’extension	2x Mini PCIe sockets
Stockage	1x 2.5" HDD/SSD (Internal)2nd 2.5" HDD/SSD (External-accessible)2x mSATA (AMI220AFS or AMI222AFS )1x mSATA (AMI220EFS or AMI222EFS )RAID 0,1,5,10 support (AMI220AFS or AMI222AFS only)
Construction	Aluminum & steel
Couleur du châssis	Silver & Gray
Montage	Desktop or wall mount (wall mount kit included)
Dimensions	210mm (W) x 265mm (D) x 77mm (H)8.27” (W) x 10.43” (D) x 3.03” (H)
Poids	3.6 kg
Température de fonctionnement	-10°C to 50°C (14°F~122°F)
Température d’entreposage	-20°C ~ 80°C (-4°F~176°F)
Humidité relative	5~90% @ 45°C, (non-condensing)
Vibrations	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Chocs	Operating: 20G/ 11msNon-Operating: 40G/ 11ms (MIL-STD-810G)
Certification	CE / LVD / FCC Class B
