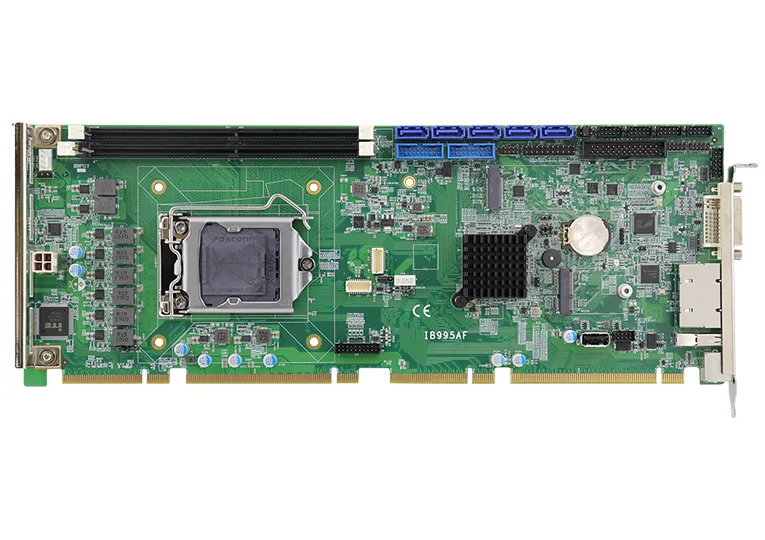

IB995
Carte CPU pleine taille — 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Pentium® / Celeron® Processors
Carte CPU pleine taille — 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Pentium® / Celeron® Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Socle du processeur | LGA1151 |
|---|---|
| Processeur | 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 DT processors |
| PCH | IB995AF-C246: Intel® C246 PCH IB995AF: Intel® Q370 PCH IB995EF: Intel® H310 PCH |
| Mémoire | 2x DDR4-2166/2400MHz DIMM, Max. 32GB (ECC compatible) |
| BIOS | AMI |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Interface de stockage | 1x M.2 (supports NVMe) |
| Emplacements d’extension | 4x PCI, 4x PCI-E (x1) or 1x PCI-E (x4) 1x PCI-E (x16) from backplane |
| Emplacements Mini | 1x M.2 (M-Key, type:2280, supports NVMe) 1x M.2 (E-Key, type:2230, supports CNVi) |
| Contrôleur graphique | Intel® UHD Graphics P630 |
| Sortie vidéo | Supports DVI-D, DVI-I, 24-bit dual-channel LVDS |
| Ethernet | IB995AF-C246& IB995AF: Intel® I219LM Gigabit LAN PHYIB995EF:Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)IB995AF-C246: Intel® I210AT Gigabit LAN (as 2nd LAN) |
| Puce d’E/S | Fintek F81964D-I |
| Port série | 1x RS232/422/485 (jumperless selection) 3x RS232 |
| USB 2.0 | 2x USB 2.0 on board 1x USB 2.0 via on board USB vertical connector 1x USB 2.0 via M.2 (E-key) |
| USB 3.X | 5x USB 3.0 on board for IB995AF series 3x USB 3.0 on board for IB995EF |
| Serial ATA | 5x SATA III for IB995AF-C246 3x SATA III for IB995AF 2x SATA III for IB995EF |
| Audio | Intel® PCH built-in HD audio controller + Realtek ALC888S codec |
| TPM | TPM (2.0) |
| Autres | Digital I/O (4-in/ 4-out), RAID, iAMT (11.6) |
| Dimensions (L x l) | 338mm x 126mm (13.3" x 4.96") |
| Consommation électrique | Intel® Core™ i7-9700K 3.60GHzInnodisk M4U0-BGS2KCIK-A35w/ 2x DDR4-2666 32G+3.3V : 0.76A+5V : 0.93A+5VSB : 0.08A+12V : 12.08A |
| Température de fonctionnement | 0°C ~ 60°C(32°F ~ 140°F) |
| Température d’entreposage | -20°C ~ 80°C(-4°F ~ 140°F) |
| Humidité relative | 90%(non-condensing @60°C) |
E/S — Panneau arrière
Accès frontal
Où le IB995 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
