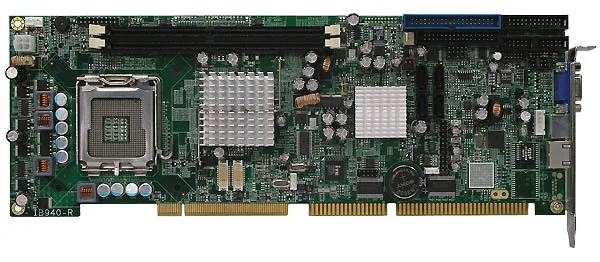

IB940

Name: IB940
Brand: IBASE Technology
SKU: IB940
Availability: InStock

Carte CPU LGA775 Intel® Core™2 Duo pleine taille

Carte CPU LGA775 Intel® Core™2 Duo pleine taille. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

LGA775

MÉMOIRE

Two DDR2 sockets support up to 4GB DDR SDRAM · 533/667/800 SDRAM, single channel

STOCKAGE

-20°C~80°C (-68°F~176°F)

ETHERNET

Intel 82566DM Gigabit LAN (for IB940F) · Intel 92562V 10/100 BaseT (for IB940)

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # IB940

Documentation Introduction au chien de garde

Spécifications

30 LIGNES

Socle du processeur	LGA775
Processeur	Intel® Core®2 Duo processor
Bus frontal du processeur (FSB)	1066MHz / 800MHz / 533MHz
Chipset	Intel® Q965 chipset
BIOS	Award BIOS, ACPI supported
Mémoire système	Two DDR2 sockets support up to 4GB DDR SDRAM · 533/667/800 SDRAM, single channel
VGA intégré	Integrated Q965 graphics subsystem - GMA3000
DVI	Chrontel CH7307C x1 for DVI
LVDS	Chrontel CH7308Bx1 for 24-bit single/dual channel LVDS
LAN principal	Intel 82566DM Gigabit LAN (for IB940F) · Intel 92562V 10/100 BaseT (for IB940)
Secondary LAN (for IB940)	Intel® 82573L PCI-e Gigabit Ethernet
Audio	Intel ICH8 built-in high definition audio with Realtek ALC888 codec; supports 5.1 CH audio
E/S LPC	W83627EHG chipset supports IrDA x 1, Parallel x 1, COM1 (RS232), COM2 (RS232/422/485), floppy, Hardware Monitor (3 thermal inputs, 4 voltage monitor inputs, VID0-4, 2 fan headers)
Interface IDE	JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel · Supports Intel® Core™2 Duo processors · Up to 2.66GHz, 533/800/1066MHz FSB · DDR2 DIMM x 2, max. 4GB, Dual Channel · Integrated graphics subsystem, GMA3000 · With DVI and 24-bit LVDS support · 10/100 BaseT or dual Gigabit Ethernet · 4 x SATA II, 6 x USB 2.0, 2 x COM, Watchdog timer · Digital I/O, ISA High Drive, Mini PCI-express socket
Interface FDD	Supports up to two floppy disk drives: 3.5" and/or 5.25" drives; 3 Mode support
Port parallèle	One parallel port supports SPP/EPP/ECP
Ports série	One RS-232/422/485 and one RS-232 port
Serial ATA II	Intel ICH8 built-in SATA controller (3.0Gb/sec)
Minuterie de surveillance	Generates system reset; 256 levels
USB	Supports 6 USB ports, USB 2.0 compliant
Connecteur clavier et souris	PS/2 type
Extension	Mini PCI-express socket x1 for wireless LAN or other module
Extra Features	ISA High Drive · PCI to ISA Bridge (ITE 8888) · Digital I/O (4 in, 4 out)
Connecteurs de bord	PS/2 for keyboard/mouse, CRT, RJ45 for LAN1 & LAN2
Onboard Connectors & Headers	SATA x4, 40-pin IDE, LVDS x2, DVI, floppy, printer, COM1, COM2, CPU fan power, System fan power, USB x6
Format	Full Size CPU Card
Dimensions	338mm x 122mm (13.3" x 4.8")
Température de fonctionnement	0°C~60°C (32°F~140°F)
Température d’entreposage	-20°C~80°C (-68°F~176°F)
Humidité relative	10%~90% (non-condensing)
