IB909

Name: IB909
Brand: IBASE Technology
SKU: IB909
Availability: InStock

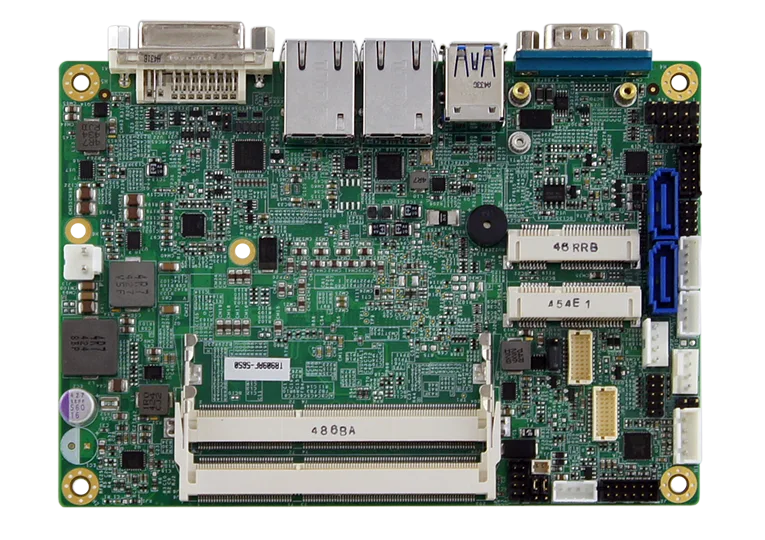

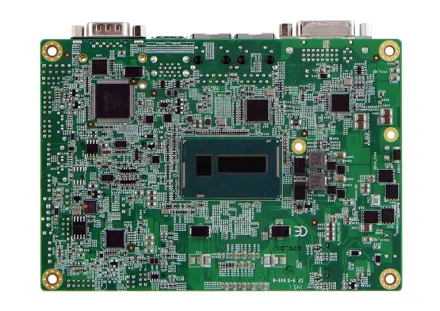

Ordinateur monocarte 3,5 po — 5th Gen Intel® Core™ U-series Processor

Ordinateur monocarte 3,5 po — 5th Gen Intel® Core™ U-series Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Core™ i7-5650U processor (2.2GHz)Intel® Core™ i5-5350U processor (1.8GHz)Intel® Core™ i3-5010U processor (2.1GHz)

MÉMOIRE

2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)

STOCKAGE

2x mSATA

AFFICHAGE

Supports DVI-I and 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # IB909

Pilote Introduction au chien de garde

Spécifications

24 LIGNES

Processeur	Intel® Core™ i7-5650U processor (2.2GHz)Intel® Core™ i5-5350U processor (1.8GHz)Intel® Core™ i3-5010U processor (2.1GHz)
PCH	Integrated in Intel® 5th Gen Core™i U-Series processor
Mémoire	2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
BIOS	AMI
Minuterie de surveillance	256 levels
Surveillance matérielle	Yes
Interface de stockage	2x mSATA
Emplacements Mini	2x Mini PCI-E (1x full-size, 1x half-size)
Contrôleur graphique	5th Gen Intel® Core™ i U-Series processor integrated graphics
Sortie vidéo	Supports DVI-I and 24-bit dual-channel LVDS
Ethernet	IB909AF: Intel® I218LM LAN PHYIB909F: Intel® I218V LAN PHYIntel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
Chipset d’E/S	Nuvoton NCT6102D
Port série	1x RS232/422/485 (jumper-less selection)1x RS232
USB 2.0	2x USB 2.0 on via pin header
USB 3.X	2x USB 3.0 on board
Serial ATA	2x SATA III
Audio	5th Gen Intel® Core™ i U-Series processor built-in HD audio controller + Realtek ALC269Q-VC3 w/ class-D speaker amplifier
TPM	N/A
Autres	Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x l)	102mm x 147mm (4" x 5.8")
Consommation électrique	Intel® Core™ i5-5350U 1.80GHz w/ 8GB DDR3L-1600, +12V: 3.84A
Température de fonctionnement	0°C~60°C (32°F~140°F)
Température d’entreposage	-20°C~80°C (-4°F~176°F)
Humidité relative	90% (non-condensing @60°C)
