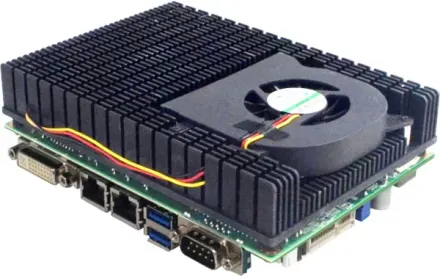

IB903
Radeon HD 8000-series gpu and x86 Jaguar AMD G-Series in a small size SBC using AMD GX-420CA SoC
Radeon HD 8000-series gpu and x86 Jaguar AMD G-Series in a small size SBC using AMD GX-420CA SoC. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Type de processeur | IB903F-Q2G: · AMD Embedded G-series GX-420CA SoC (2.0GHz, 2MB cache) · IB903F-16: · AMD Embedded G-series GX-217GA SoC (1.6GHz, 1MB cache) |
|---|---|
| Mémoire système | 1x DDR3/ DDR3L SO-DIMM, Max. 8GB (Non-ECC) |
| Chipset système | Integrated in APU |
| BIOS | AMI |
| Minuterie de surveillance | 256 levels |
| SSD | 1x mSATA (Thru Mini PCI-E) |
| Surveillance matérielle | Yes |
| Emplacement d’extension | 2x Mini PCI-E |
| Contrôleur VGA | AMD Embedded G-series SoC build-in GPU · ( AMD Radeon™ HD8000 series) |
| Mémoire VGA | Shared memory |
| Interface LCD | Support DVI-I and 24-bit dual channel LVDS |
| Contrôleur LAN | 2x Realtek RTL8111G-CG PCI-E Gigabit LAN · 2x RJ-45 on board |
| Chipset | Fintek F81846AD-I · 1x RS232/422/485 (Jumperless selection), · 3x RS232, 2xSATAIII · Digital I/O |
| USB | 2 ports onboard (USB 3.0) Pin headers for 4 ports (USB 2.0) |
| Audio | AMD Embedded G-series SoC built-in audio controller w/ Realtek ALC269Q-VC2-GR HD codec w/class-D speaker amplifier |
| Entrée d’alimentation | DC IN (+9V~+24V) |
| Autres | iSMART |
| Dimensions | 102mm x 147mm (4“ x 5.8“) · AMD GX-420CA SoC with Radeon™ HD Graphics 2.00GHzw/ Unigen 2GB DDR3-1333+12V: 2.91A |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 10%~90% (non-condensing) |
Caractéristiques
| Caractéristique 1 | Onboard AMD Embedded G-series SoC |
|---|---|
| Caractéristique 2 | 1x DDR3/ DDR3L SO-DIMM , Max. 8GB |
| Caractéristique 3 | Supports DVI-I and 24-bit dual channel LVDS |
| Caractéristique 4 | 2x Realtek RTL8111G-CG PCI-E Gigabit LAN |
| Caractéristique 5 | Watchdog timer, Digital I/O, mSATA, iSMART |
| Caractéristique 6 | 2x USB3.0, 4x USB 2.0, 4x COM, 2x SATA III |
Informations de commande
| IB903F-Q2G | - AMD Embedded G-series GX-420CA SoC (2.0GHz) 3.5-inch Disk Size SBC w/ DVI-I and LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART |
|---|---|
| IB903F-16 | - AMD Embedded G-series GX-217GA SoC (1.6GHz) 3.5-inch Disk Size SBC w/ DVI-I and LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART |
| IB68A | - Cable kit for IB903F series, w/ SATA + Power cable, COM, USB , Power cable |
| HSIB903-BGA | - Heatsink w/ fan for IB903F series |
E/S — Panneau arrière
Accès frontal
Où le IB903 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
