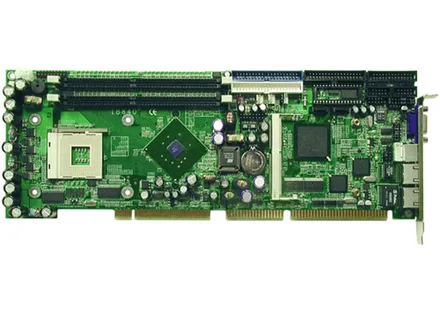

IB840
SBC P4 PICMG — MicroAGP / 800MHz FSB / SATA support
IB840 / IB840F P4 PICMG SBC with MicroAGP, 800MHz FSB and SATA support. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Socle du processeur | Socket 478 |
|---|---|
| Processeur | Intel Pentium 4 // 2.0GHz ~ 3.20GHz+ |
| Front Side Bus | 800MHz / 533MHz / 400MHz |
| Chipset | Intel 865G |
| Mémoire système | Two DDR sockets support up to 2GB DDR SDRAM PC266/333/400 |
| VGA intégré | Integrated 82865G AGP4X VGA for CRT interface |
| Optional Graphics | MicroAGP VGA expansion options: ATI Mobility M7 / M9 / M10 or LVDS / TV-out MicroAGP |
| LAN principal | Intel 82551 10/100Mb Ethernet |
| Secondary LAN | Intel 82547EI Gigabit Ethernet (optional) |
| Serial ATA | Supports 2 ports |
| USB | Supports 4 USB 2.0 ports |
| Format | Full-size PICMG CPU card |
| Dimensions | 338mm x 122mm |
Informations de commande
| IB840(-R) | - Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, VGA, MicroAGP for optional VGA expansion |
|---|---|
| IB840F(-R) | - Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, 82547 Gigabit LAN x1, VGA, MicroAGP for optional VGA expansion |

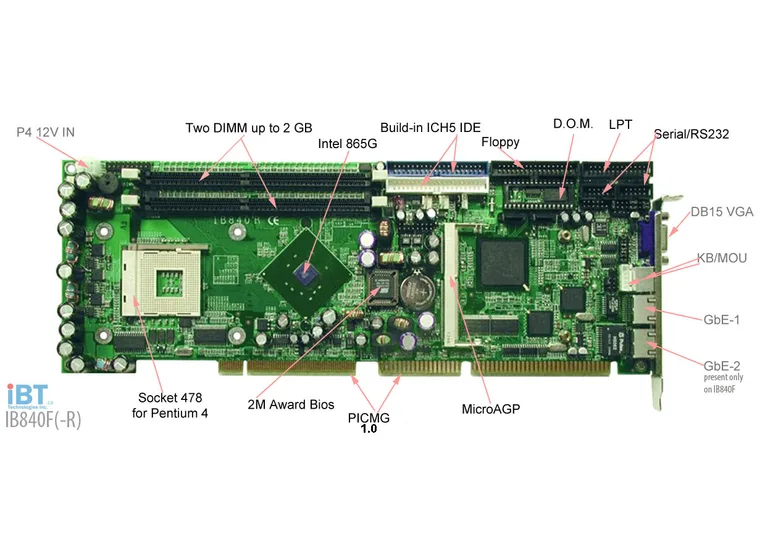

E/S — Panneau arrière
Accès frontal
Où le IB840 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
- TÉLÉCHARGER ↓Code source du chien de gardeDocument PDF
- TÉLÉCHARGER ↓Introduction au chien de gardeDocument PDF
Licensed customers get access to BIOS source, schematics, and full production test documentation.
