MI945X

Name: MI945X
Brand: IBASE Technology
SKU: MI945X
Availability: InStock

Carte mère Mini-ITX Intel™ GM45 Chipset — Socket P for Intel Core2Duo

Carte mère Mini-ITX Intel™ GM45 Chipset — Socket P for Intel Core2Duo. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Socket P

MÉMOIRE

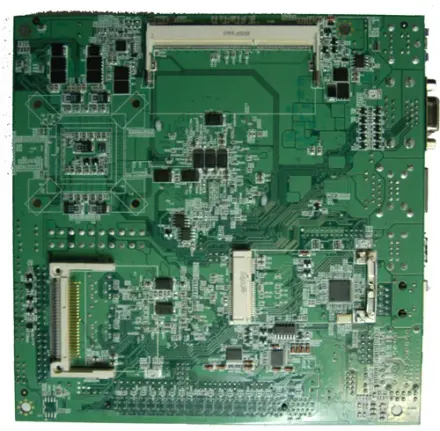

Two DDR3 sockets, up to 4GB (DDR3 1333/1600 not supported on GM45) · SoDIMM x2 Dual-Channel (w/o ECC) · 1066MHz DDRIII Second memory socket on soldered side .

AFFICHAGE

Chipset built-in · VGA CRT, LVDS interface · Shared memory, max. 1GB · daughter card support for 2nd CRT, RCA, s-video or HDTV, dual DVI

ETHERNET

Dual Intel Gigabits Lan Intel™ 82567LM Gigabit LAN and Intel™ 82574L PCI-E Gigabit LAN · RJ-45 on board

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MI945X

Documentation Introduction au chien de garde

Spécifications

23 LIGNES

Socle du processeur	Socket P
Processeur	Intel™ Core™2 Duo up to 2.93 GHz or above
Bus frontal du processeur (FSB)	666 / 800 / 1066MHz
Chipset	Intel™ GM45 + ICH9M
Mémoire système	Two DDR3 sockets, up to 4GB (DDR3 1333/1600 not supported on GM45) · SoDIMM x2 Dual-Channel (w/o ECC) · 1066MHz DDRIII Second memory socket on soldered side .
Video Integrated	Chipset built-in · VGA CRT, LVDS interface · Shared memory, max. 1GB · daughter card support for 2nd CRT, RCA, s-video or HDTV, dual DVI
LAN	Dual Intel Gigabits Lan Intel™ 82567LM Gigabit LAN and Intel™ 82574L PCI-E Gigabit LAN · RJ-45 on board
Audio	ICH9M built-in audio + AC97 codec 7.1 ALC888 · (Line out, Line, Mic jacks on board)
E/S LPC	W83627EHG+Fintek 81216G chipset supports 3xCOM(RS232), 1xCOM(RS232/422/485), Hardware Monitor

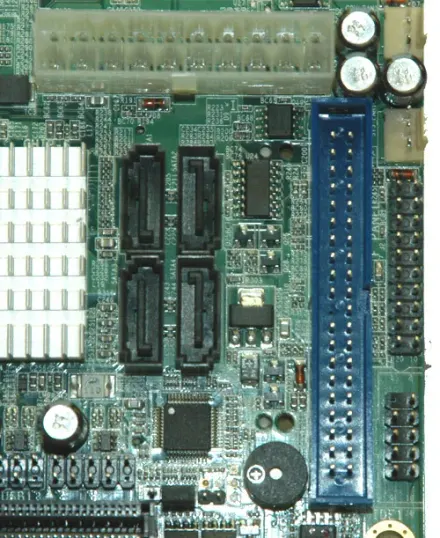

Interface Serial ATA	4x SATA II ports , 3Gb/s
PATA Interface (IDE)	One 40-pins IDE using (PCI-E ot PATA) 2 IDE devices featuring UDMA33/66/100 · Processor Socket P · Supports Intel™ Mobile Core™2 Duo/Quad and Celeron processors · Up to 2.93GHz, 800MHz/1066MHz FSB · DDR3 SO-DIMM x2, Max. 4GB · Dual Gigabit PCIe LAN · Integrated Intel GM45 VGA for LVDS and CRT · 8x USB 2.0, 4x SATA II, 4x COM, 1xIDE44, 1xCF · 1 x PCI-E(x16), 1xPCI-E(MIni Card), 1x Bus Addon
Ports série	1x RS-232/422/485 and 3x RS-232 ports
USB (2.0)	8x USB 2.0 ports (4 on board, 4 via pin header)
E/S numériques	4 in / 4 out
BIOS	Award BIOS, ACPI supported
Minuterie de surveillance	Generates system reset; 256 levels
Surveillance matérielle	Monitors system/CPU temperature and voltage status

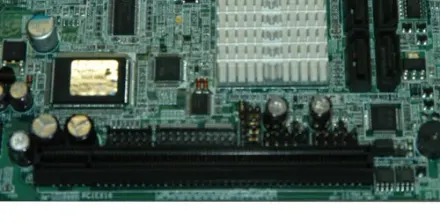

Emplacement d’extension	PCIe(x16) x1 and PCIe Minicard (30 x 56mm) x 1
Connecteurs de bord	PS/2 KB/Mouse, 2xGigabit LAN, 4xUSB, Stack, COM1-DB9 + VGA-DB15 stack, 3x2 for HD Audio (Low Profile)z
Onboard Connectors	1x IDE40, 1x CF, 1x PCIe Minicard, 2x DF13-LVDS, Digital I/O, 4x COMs, 4xUSB, IrDA, audio Line-Out & Mic,2xSATA
Connecteur d’alimentation	ATX, 20-pin
Format	Mini-ITX
Facteurs environnementaux	Power Comsumption: TBC Intel™ Core™2 Duo T9400 2.53GHz w/ 1GB +12V: 2.12A +5V: 2.97A · Operating Temperature: 0°C~60°C (32°F~140°F) · Storage Temperature: -20°C~80°C (-4°F~176°F) · Relative Humidity: 10%~90% (non-condensing) · Connectors layout · - Intel™ GM45 Mini-ITX Socket 478P Motherboard w/ PCI-E(x16), VGA and Dual Gigabit LAN MI945XR · - Intel™ GM45 Mini-ITX Socket 478P Motherboard w/ PCI-E(x16), VGA,Dual Gigabit LAN · IBP192 - PCI-E(x16), singale DVI card · IBD170D : Mini PCI LAN card with Intel 82541PI Ethernet controller, dual port , used with IBLD170D RJ45 card
