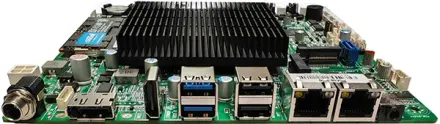

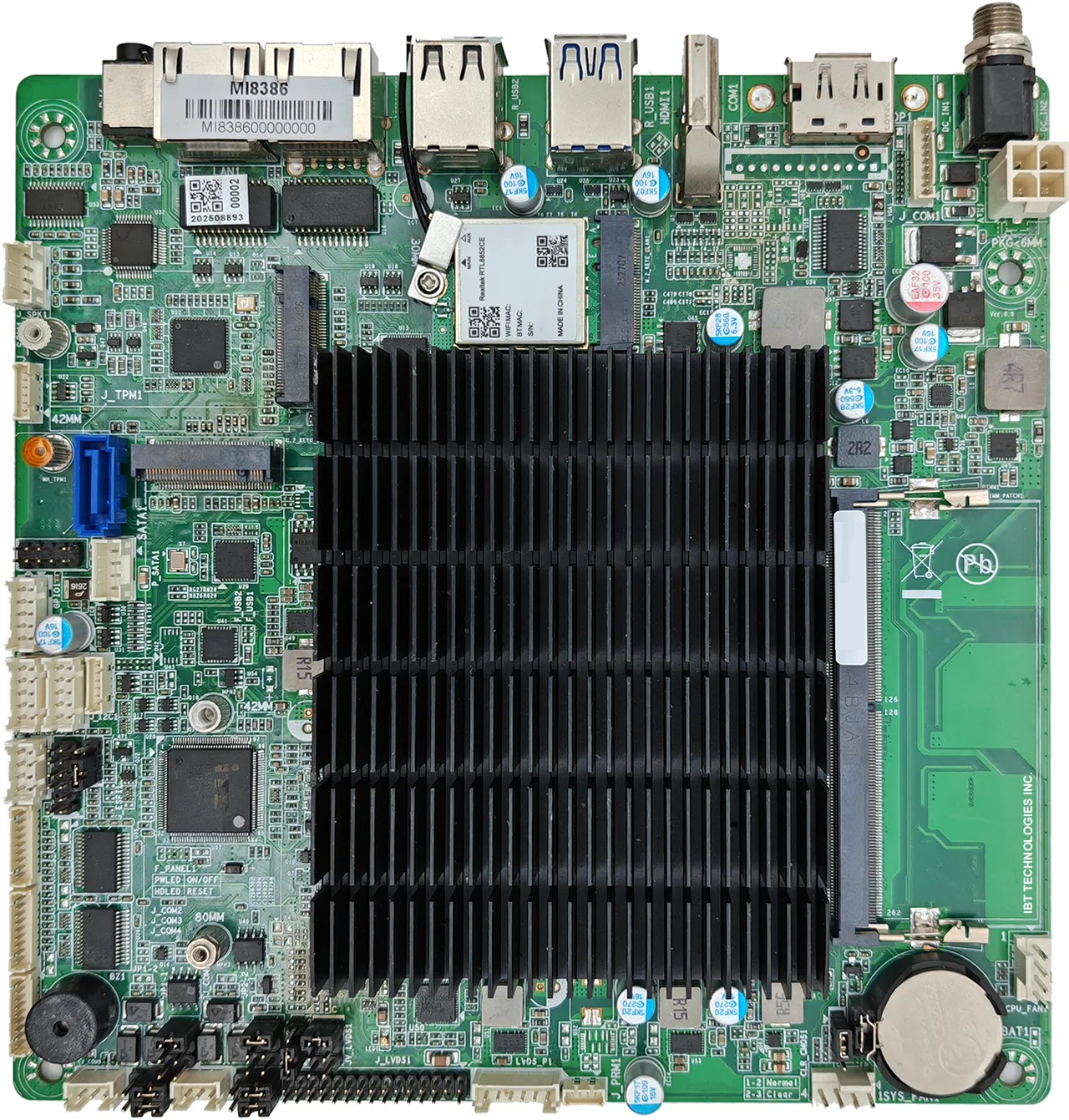

MI8386F

Name: MI8386F
Brand: IBASE Technology
SKU: MI8386F
Availability: InStock

Intel X7211E CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2

Intel X7211E CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel X7211E CPU

MÉMOIRE

DDR5-4800, 1*SO-DIMM, up to 16GB

STOCKAGE

1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)

AFFICHAGE

1xHDMI: max resolution up to 4096*2160@60Hz · 1x optional VGA share the same place with HDMI and USB on I/O

P/N # MI8386F

19 LIGNES

Processeur	Intel X7211E CPU
Mémoire	DDR5-4800, 1*SO-DIMM, up to 16GB
Stockage	1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)
Interface d’extension	1xM.2 (Key-E, 2230, PCIe+USB 2.0, Wifi+BT) · 1xM.2 (Key-B, 2242, PCIe/5G
BIOS	AMI UEFI BIOS
Série	6x RS232

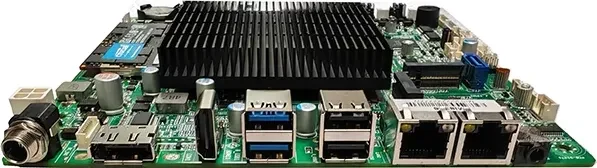

USB	4x USB 3.0, 7x USB 2.0
Audio	Realtek 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
Parallèle	1x LPT Header
Interface d’affichage	1xHDMI: max resolution up to 4096*2160@60Hz · 1x optional VGA share the same place with HDMI and USB on I/O
Canal d’affichage	Triple
Ethernet	1x Realtek 1Gbps PCIe Ethernet Controller, RJ45
GPIO	8x Programmable GPIO
Dimension	170x170mm
Entrée d’alimentation	DC 12V
Autres	1x Cash Drawer Control Wafer, 1x I2C Touch Wafer, 1x Case Open Header
En fonctionnement	0~60oC 10%~90%
Stockage	-25~+75oC at 5%~95%, non-condensing
Systèmes d’exploitation compatibles	Windows 10/11, Linux

3 LIGNES

MI8386F	- Mini-iTx SBC, Intel Core X7211E Low Power Dual Core SoC on board, Dual LAN
MI8385F	- Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC Dual Lan
MI8380F	- Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC Dual Lan
