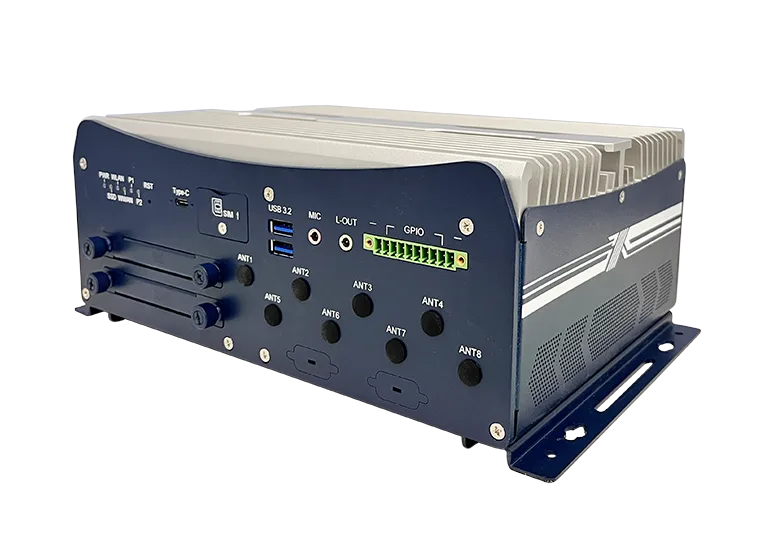

MPT-7100R

Name: MPT-7100R
Brand: IBASE Technology
SKU: MPT-7100R
Availability: InStock

Système informatique ferroviaire certifié EN50155/EN45545 — 13th Gen Intel® Core™ Processor M12 Connection and WWAN Redundancy

Système informatique ferroviaire certifié EN50155/EN45545 — 13th Gen Intel® Core™ Processor M12 Connection and WWAN Redundancy. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

13th Gen Intel® Core U-Series Processor

MÉMOIRE

2x 8GB DDR5-5200 SO-DIMM (Dual Channel)

STOCKAGE

1x M.2 2280 M-Key socket for NVMe SSD (PCI-E x4 [Gen.4])2x 2.5“ removable device bay for SSD

ENVIRONNEMENT

-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD), up to 85°C for 10 minutes according to EN 50155 OT4-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)

MPT R Series EN50155…Railway Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT-7100R

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-7101R
Type de processeur	13th Gen Intel® Core U-Series Processor
Vitesse du processeur	Up to 3.0GHz
Mémoire	2x 8GB DDR5-5200 SO-DIMM (Dual Channel)

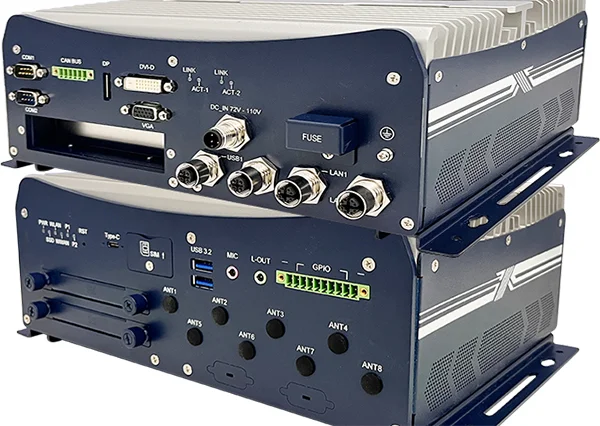

E/S du panneau avant	2x USB3.2 Gen2 stack Type-A connector2x External accessible SIM socket1x USB Type-C connector with screw-lock2x Removable 2.5“ SSD device bay1x 3.5mm green color audio for Line-out1x 3.5mm pink color audio for MIC-in1x Reset button1x 10-pin terminal block for isolated digital I/O8x SMA antenna holes6x Light-pipe for status LED indicators (2x programmable)

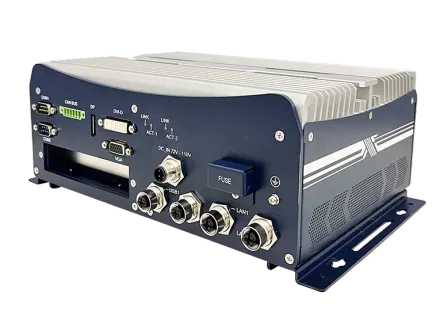

E/S externes du panneau arrière	2x M12 X-code 8P female for GbE LAN1/LAN21x M12 A-code 4P male for DC-input2x M12 A-code 4P female for USB 2.01x DisplayPort output1x DVI-D connector, 1x VGA connector1x 6-pin terminal block for 2x isolated CAN bus2x DB9M for COM#1 (RS232/422/485) / COM#2 (RS232 only)1x Removable blade fuse holder4x Light-pipe for LAN status LED indicators1x PCI-E (x4) slot1x M3 with washer screw hole for grounding connection
Stockage	1x M.2 2280 M-Key socket for NVMe SSD (PCI-E x4 [Gen.4])2x 2.5“ removable device bay for SSD
Emplacements d’extension	1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus).1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (PCI-E + USB3.2 + SMBus)1x M.2 2280 M-Key socket for NVMe SSD / Hailo AI module (PCI-E x4 [Gen.4])1x Mini PCI-E full-size socket for MVB/CAN FD module (PCI-E + USB2.0 + SMBus)1x Mini PCI-E half-size socket (USB 2.0)
Alimentation	MPT-7100R (24V)MPT-7100RH (72V~110V)
Construction	Aluminum
Couleur du châssis	Silver & Blue
Montage	Wall mount
Dimensions	256.0 (W) x 182.0 (D) x 97.3 (H) mm10.08” (W) x 7.17” (D) x 3.83” (H)
Température de fonctionnement	-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD), up to 85°C for 10 minutes according to EN 50155 OT4-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	10 ~ 95% RH @45°C (non-condensing)
Vibrations	Function: 1 m/s2, 5Hz~150 Hz (EN 61373)Lifetime: 7.9 m/s2, 5Hz~150 Hz (EN 61373)
Chocs	50 m/s2, 30 msec (EN 61373)
Certifié	EN 50155:2021, EN 45545 -2 HL1/2/3 2020CE (EN 62368-1 / EN55032 / EN55035), FCC Class-A
