MPT-500R

Name: MPT-500R
Brand: IBASE Technology
SKU: MPT-500R
Availability: InStock

Système informatique ferroviaire certifié EN50155/EN45545 — Intel® Atom® x6000RE Processor M12 Connection and Dual WWAN

Système informatique ferroviaire certifié EN50155/EN45545 — Intel® Atom® x6000RE Processor M12 Connection and Dual WWAN. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® x6212RE/ x6425RE Processor

MÉMOIRE

4GB/8GB LPDDR4 3200 on board

STOCKAGE

1x 2280 M.2 M-key (PCI-E M.2 SSD)1x 2.5" device bay for SSD or HDD. Default 2.5" 64G SSD

ENVIRONNEMENT

SSD w/o PCI-E Card: -40°C ~70°C, up to 85°C for 10 minutesSSD w/ PCI-E Card: -40°C ~55°C, up to 70°C for 10 minutesHDD: -25°C ~55°C, up to 70°C for 10 minutes

MPT R Series EN50155…Railway Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT-500R

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-501R
Type de processeur	Intel® Atom® x6212RE/ x6425RE Processor
Vitesse du processeur	Intel® Atom® x6212RE: 1.2GHzIntel® Atom® x6425RE: 1.90GHz
Mémoire	4GB/8GB LPDDR4 3200 on board

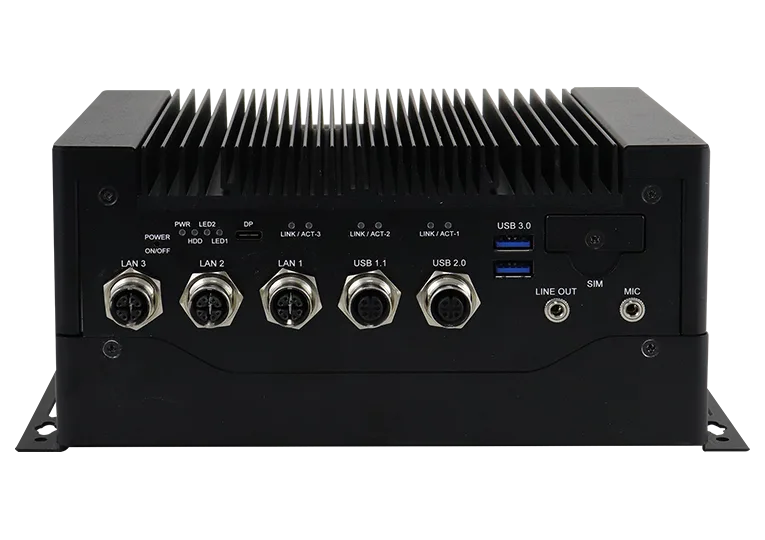

E/S du panneau avant	1x Recessed access tact-switch for system power4x light-pipe for four status LED1x USB type-C with DP6x LED with each port for network status2x USB3.2 Gen.1 type-A2x external accessible SIM socket3x M12 8-pin X-code for LAN (Two GbE LAN come with PoEand one 2.5G LAN)1x M12 4-pin A-code for USB 1.11x M12 4-pin A-code for USB 2.01x 3.5mm audio connector for line output1x 3.5mm audio connector for MIC input

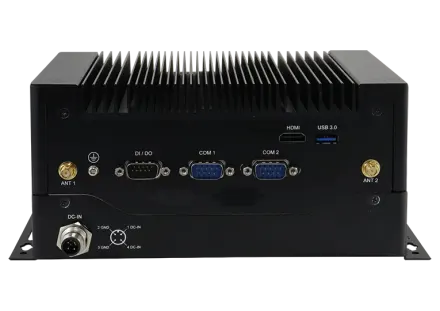

E/S externes du panneau arrière	1x HDMI type-A1x USB3.2 Gen.2 type-A2x SMA antenna holes with cap1x M3 screw hole for grounding connection1x DSUB15 for 4x DO/4x DI and ground1x DSUB9 for RS-232/4851x DSUB9 for 2x RS485 isolated1x M12 4-pin A-code for power input
Stockage	1x 2280 M.2 M-key (PCI-E M.2 SSD)1x 2.5" device bay for SSD or HDD. Default 2.5" 64G SSD
Emplacements d’extension	1x mPCI-E full/half socket (PCI-E, USB 2.0) (Supports SIM2)1x 3042/52 M.2 B-key (4G/5G) (Supports SIM1)
Alimentation	24V DC or 72V DC/110V DC
Construction	Aluminum
Couleur du châssis	Black
Montage	Side mounting
Dimensions	240 (W) x 138 (D) x 93 (H) mm9.4” (W) x 5.4” (D) x 3.7” (H)
Température de fonctionnement	SSD w/o PCI-E Card: -40°C ~70°C, up to 85°C for 10 minutesSSD w/ PCI-E Card: -40°C ~55°C, up to 70°C for 10 minutesHDD: -25°C ~55°C, up to 70°C for 10 minutes
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	10 ~ 95% @ 45°C, (non-condensing)
Vibrations	Function: 1m/S2, 5Hz~150Hz (EN 61373)Lifetime: 7.9m/S2, 5Hz~150Hz (EN 61373)
Chocs	50 m/S2, 30 msec (EN61373)
Certifié	EN50155: 2021CE (EN62368/ EN55032/ EN55035)/ FCC Class-AEN45545-2
