MPT-3100V

Name: MPT-3100V
Brand: IBASE Technology
SKU: MPT-3100V
Availability: InStock

Ordinateur Edge AI ITxPT & In-Vehicle certifié E-Mark — Intel® Atom® x7000RE Series Processor, WWAN Redundancy

Ordinateur Edge AI ITxPT & In-Vehicle certifié E-Mark — Intel® Atom® x7000RE Series Processor, WWAN Redundancy. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® x7433RE Processor

MÉMOIRE

1x DDR5-4800 SO-DIMM socketUp to 16GB

STOCKAGE

1x M.2 2280 M-Key socket for SSD (SATA III signal)1x 2,5" removable device bay for SSD

ENVIRONNEMENT

-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)

MPT V Series E mark…In Vehicle Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT-3100V

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-3101V
Type de processeur	Intel® Atom® x7433RE Processor
Vitesse du processeur	Up to 2.7GHz
Mémoire	1x DDR5-4800 SO-DIMM socketUp to 16GB

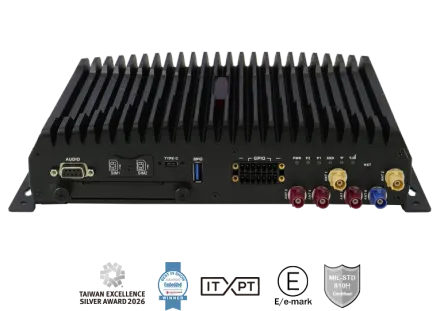

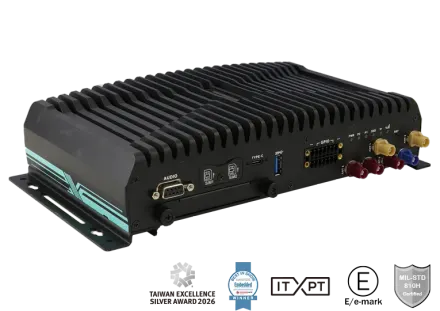

E/S du panneau avant	1x USB 3.2 Gen2 stack Type-A connector2x external accessible SIM socket1x USB Type-C connector with screw-lock1x Removable 2.5" SSD device bay1x DB9 female connector for Line-out & MIC-in1x reset button1x 14-pin terminal block 6-in & 6-out digital I/O with 24V input and output6x FAKRA antenna holes4x light-pipe for status LED Indicators

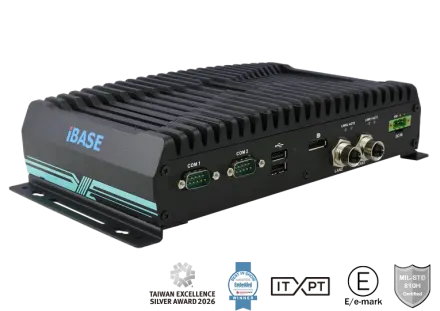

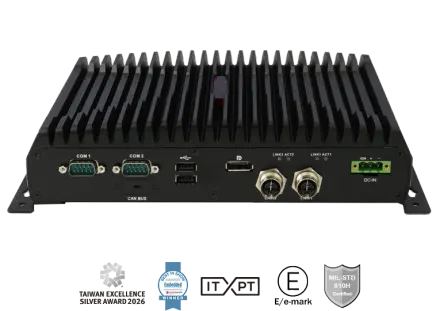

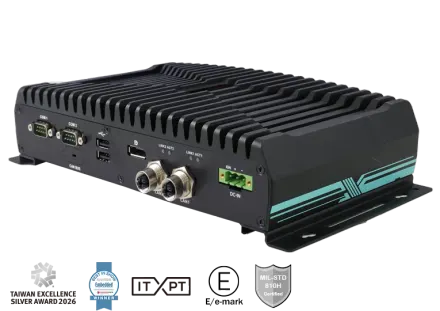

E/S externes du panneau arrière	2x M12 X-code 8P female for GbE LAN1/LAN21x terminal block 3-pin for DC-input1x VGA connector for graphic output (optional)1x DisplayPort output1x DB9F connector for 2x CAN FD bus connection (works with extra CAN module)2x DB9M for COM#1 / COM#22x USB 2.0 Type-A connector2x light-pipe for LAN status LED Indicators
Stockage	1x M.2 2280 M-Key socket for SSD (SATA III signal)1x 2,5" removable device bay for SSD
Emplacements d’extension	1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB 2.0 + SMBus)1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (USB3 .2 Gen.1 + SMBus)1x M.2 2280 M-Key socket for SSD device (SATA III)1x Mini PCI-E full-sized socket for MVB/CAN FD module (PCI-E + USB 2.0 + SMBus)1x Mini-PCIe half-size socket for GPS module (USB2.0 only)
Alimentation	DC-input 9V ~ 36V (Nominal DC-input 12V/24V)
Construction	Aluminum
Couleur du châssis	Black
Montage	wall mount
Dimensions	250 (W) x 150 (D) x 55 (H) mm9.84” (W) x 5.9” (D) x 2.16” (H)
Température de fonctionnement	-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	10 ~ 95% RH @45°C (non-condensing)
Vibrations	Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only)
Chocs	Operating: Sawtooth: 20G, 11msec (Z-axis) /MIL-STD-810GNon-operating: Sawtooth: 40G, 11 msec (Z-axis) /MIL-STD- 810G
Certifié	E-Mark-24CE (EN 62368-1 / EN55032 / EN55035), FCC Class-A
