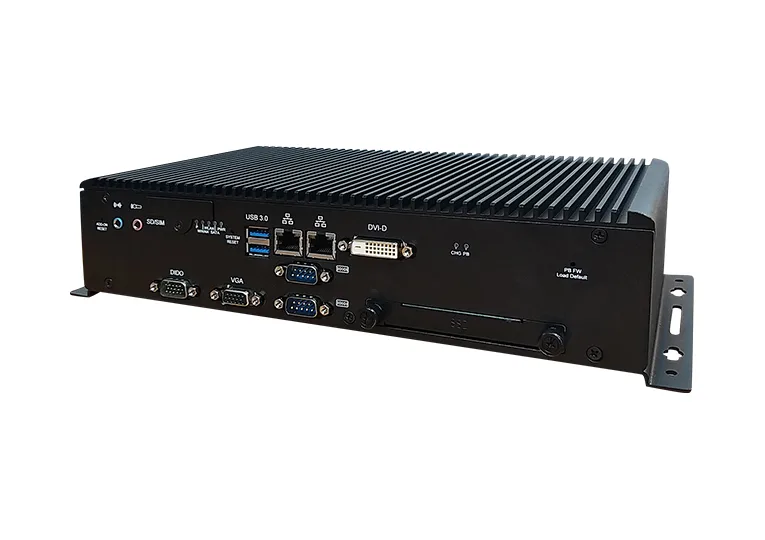

MPT-1000V

Name: MPT-1000V
Brand: IBASE Technology
SKU: MPT-1000V
Availability: InStock

Système informatique embarqué certifié E-mark — Intel® Atom® x7-E3950 Processor

Système informatique embarqué certifié E-mark — Intel® Atom® x7-E3950 Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® x7-E3950 Processor

MÉMOIRE

Onboard 4GB LPDDR4 memory (Intel® N3350 SKU)Onboard 8GB LPDDR4 memory (Intel® E3950 SKU)

STOCKAGE

1x 2.5” device bay for SSD/HDD1x mSATA via miniPCI-E slot

ENVIRONNEMENT

-40°C~70°C, with SSD, not including add-on cards (Intel® E3950 SKU)-5°C~50°C, with SSD, not including add-on cards (Intel® N3350 SKU)

MPT V Series E mark…In Vehicle Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT-1000V

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-1002V
Type de processeur	Intel® Atom® x7-E3950 Processor
Vitesse du processeur	1.6GHz , up to 2.0GHz
Mémoire	Onboard 4GB LPDDR4 memory (Intel® N3350 SKU)Onboard 8GB LPDDR4 memory (Intel® E3950 SKU)
E/S du panneau avant	1x DVI-D connector for display connection1x VGA DSUB152x RJ45 for GbE LAN1x 3,5mm blue color audio connector for line input1x 3,5mm pink color audio connector for MIC-Input2x external accessible SIM socket (Coved)1x external micro SD card slot (Coved together with SIM card holder)1x Stack USB connector for 2x USB3.1 (#1/#2)1x DUSB 9 for COM1 RS-232/4851x DUB9 for COM2 RS-485 isolated1x DSUB15 for DIDO 6in/6out isolated 6x insulated DO: - Output type: Darlington transistor - Sink current •500 mA for one channel @100% duty - Source current •500 mA for one channel @100% duty cycle - Supply voltage: 5V-35V DC - Isolation voltage: 2500V RMS 6x insulated DI: - Maximum input range •24V, non-polarity - Digital logic levels •0~24 V, non-polarity - Input high voltage: 5V~24V - Input low voltage: 0~1.5V - Input resistance: 1.2 k @ 0.5W - Isolation voltage •2500V RMS1x tack switch for system reset1x tack switch for Add-on cards reset1x tack switch for power firmware load default Indicators: - 1x Green color LED for power status - 1x White color LED for storage activity status - 1x Blue color LED for WLAN activity status (option) - 1x Orange color LED for WWAN activity status (option) - 1x Green color LED, programable - 1x Red color LED for warning of wrong power voltage connected - 1x Bule color LED for external battery connected
E/S externes du panneau arrière	2x DSUB9 for COM3/4 RS2321x 4 pins terminal block for 2 masters CANbus1x USB3.0 flag type-A1x audio jack for line out1x tack switch for clear CMOS1x open window for accessing RTC battery1x 6-pins ATX connector for external battery, and 19V DC(Max:1A) output1x blade fuse socket with cover1x dip switch for selecting power mode: CAR/DC1x 3-pin thermainl block connector for power input and IGN
Stockage	1x 2.5” device bay for SSD/HDD1x mSATA via miniPCI-E slot
Emplacements d’extension	1x miniPCI-E full/Half-size, supports mSATA1x miniPCI-E full/Half-size, supports second SIM card1x M.2 B-key 30x42 with USB 2.0 and USB 3.0 signal only, supports first SIM card
Alimentation	9V~32V DC input(10%) without backup battery power12V~32V DC input with backup batteryIgnition detection: enable (Car mode)/ disable (DC mode) Reverse protection
Construction	Matel
Couleur du châssis	Black
Montage	Side mounting, rack mounting with optional bracket
Dimensions	300 (W) x 158.4 (D) x 66 (H) mm11.8” (W) x 6.23” (D) x 2.6” (H)
Température de fonctionnement	-40°C~70°C, with SSD, not including add-on cards (Intel® E3950 SKU)-5°C~50°C, with SSD, not including add-on cards (Intel® N3350 SKU)
Température d’entreposage	-40°C~85°C (-40°F~185°F)
Humidité relative	10 ~ 95% @ 45°C, (non-condensing)
Vibrations	Operating/Non-operating: 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only)
Chocs	Non-operating: Sawtooth: 40G, 11 msec (Z-axis)Operating: Sawtooth: 20G, 11msec (Z-axis)
Certifié	E-Mark, CE (EN 62368 / EN55032 / EN55025)/ FCC Class-A
