MPT-1000R

Name: MPT-1000R
Brand: IBASE Technology
SKU: MPT-1000R
Availability: InStock

Système informatique ferroviaire certifié EN50155/EN45545 — Intel® Atom® x7-E3950 Processor, M12 Connection and Dual WWAN

Système informatique ferroviaire certifié EN50155/EN45545 — Intel® Atom® x7-E3950 Processor, M12 Connection and Dual WWAN. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® x7-E3950 Processor

MÉMOIRE

1x DDR3L SO-DIMM socket (horizontal type) with ECC support, default 4GB ECC

STOCKAGE

2x 2.5” device bay for SSD/HDD1x mSATA via miniPCI-E slot (shared with one 2.5” device)

ENVIRONNEMENT

-40°C ~70°C, with SSD, not including add-on cards

MPT R Series EN50155…Railway Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT-1000R

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-1001R
Type de processeur	Intel® Atom® x7-E3950 Processor
Vitesse du processeur	1.6GHz, up to 2.0GHz
Mémoire	1x DDR3L SO-DIMM socket (horizontal type) with ECC support, default 4GB ECC
E/S du panneau avant	1x power reset button1x DVI-D2x M12 X-code GbE LAN, isolated1x USB 2.0 type-A, isolated1x M12 A-code USB 2.0 isolated2x audio jack for Line-in/out5x LED indications, one is programmable1x SIM card slot for dual micro SIM card1x expansion slots reset button

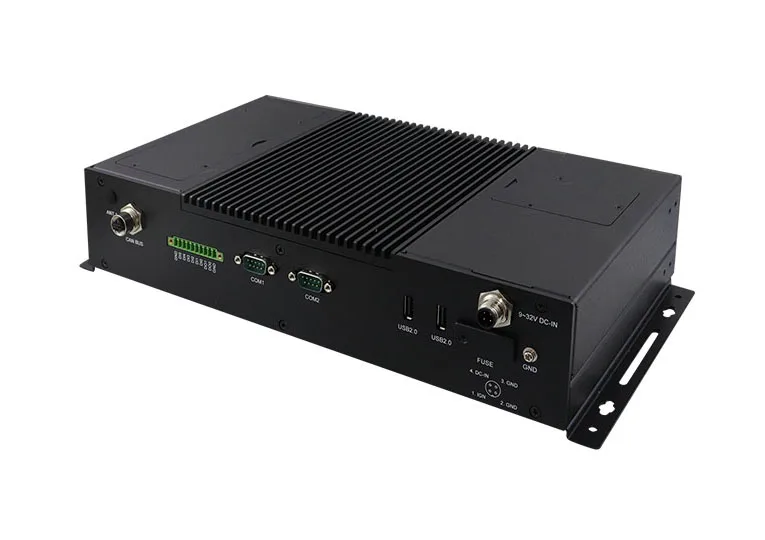

E/S externes du panneau arrière	1x 10-pin terminal block connector for - 2x insulated DO • Output type: Darlington transistor • Sink current: 500 mA for one channel @100% duty - Source current: 500 mA for one channel @100% duty cycle - Supply voltage: 5V~35V DC - Isolation voltage: 2500 VRMS - 6x insulated DI • Maximum input range: 24V, non-polarity • Digital logic levels: 0V~24V, non-polarity • Input high voltage: 5V~24V • Input low voltage: 0V~1.5V • Input resistance: 1.2k @ 0.5W Isolation voltage: 2500 VRMS- 1x DSUB9 for RS232/485, isolated- 1x DSUB9 for RS485, isolated1x M12 4-pin D-code for 2 master CANbus, isolated2x USB 2.0 type-A, isolated1x M12 3-pin A-code for power input1x blade fuse
Stockage	2x 2.5” device bay for SSD/HDD1x mSATA via miniPCI-E slot (shared with one 2.5” device)
Emplacements d’extension	1x miniPCI-E full/Half-size, supports mSATA1x miniPCI-E full/Half-size, supports second SIM card shared with M.2 slot1x M.2 B-key 30x42 with USB 2.0 and USB 3.0 signal only, supports 2x SIM cards
Alimentation	9V~32VDC, 1.5KV galvanic isolation protection
Construction	Metal
Couleur du châssis	Black
Montage	Side mounting, rack mounting with optional bracket
Dimensions	340 (W) x 183.4 (D) x 67.6 (H) mm13.3” (W) x 7.22” (D) x 2.66” (H)
Température de fonctionnement	-40°C ~70°C, with SSD, not including add-on cards
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	10 ~ 95% @ 45°C, (non-condensing)
Vibrations	Function: 1m/S2, 5Hz~150Hz (EN 61373)Lifetime: 7.9m/S2, 5Hz~150Hz (EN 61373)
Chocs	50 m/S2, 30 msec (EN61373)
Certifié	EN50155: 2017 CE (EN62368/ EN55032/ EN55025)/ FCC Class-AEN45545-2
