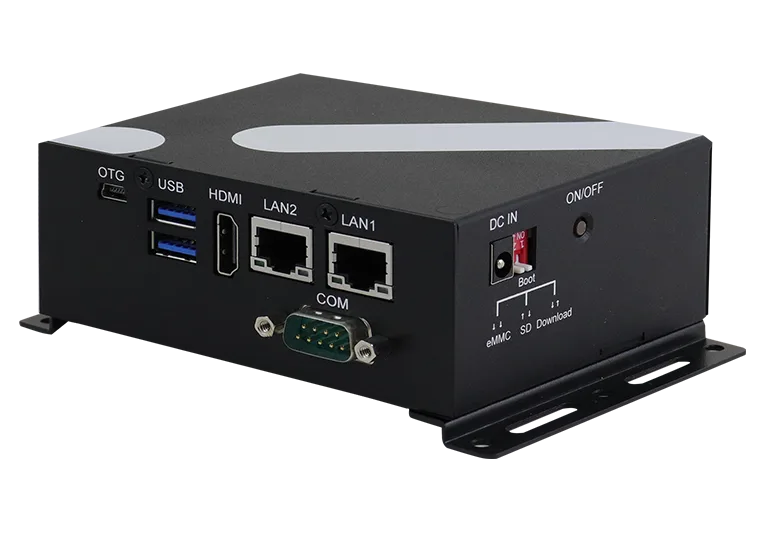

ISR215F

Name: ISR215F
Brand: IBASE Technology
SKU: ISR215F
Availability: InStock

Ordinateur Edge AI — NXP i.MX 8M Plus - ARM Cortex-A53 Quad-Core Processor

Ordinateur Edge AI — NXP i.MX 8M Plus - ARM Cortex-A53 Quad-Core Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

NXP Cortex™-A53, i.MX 8M Plus Quad-core

MÉMOIRE

3GB LPDDR4 on board (option: 4/8GB)

STOCKAGE

16GB eMMC on board (option: up to 256GB)

ENVIRONNEMENT

-40°C~70°C (-40°F~158°F)

Edge AI ComputerAI Computing Platform

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # ISR215F

Spécifications

23 LIGNES

Carte mère du système	IBR215-01 2.5” SBC
Type de processeur	NXP Cortex™-A53, i.MX 8M Plus Quad-core
Vitesse du système	1.8 GHz (Commercial Grade)/ 1.6 GHz (Industrial Grade)
Mémoire	3GB LPDDR4 on board (option: 4/8GB)
Puissance de calcul d’inférence IA	NPU delivering up to 2.3 TOPS of AI performance
E/S externes du panneau avant	1x HDMI2x USB 3.0 Type-A2x RJ45 GbE LAN1x Mini-USB OTG1x RS-232/422/485 (IO board)Side I/O:1x On/Off button1x 12V~24V DC-IN jack1x SD socket (UHS-I SDR-104, 104MB/s max)1x Boot select switches (boot from eMMC or SD)
E/S externes du panneau arrière	4x Antenna holes (reserved)
Emplacement d’extension	1x M.2 3052 B-Key with SIM socket (for 5G module)2x I2C / 4x GPIO 6-pin header1x Audio Line-in and Line-out 6-pin header1x DC power in 4-pin header1x mPCI-E (IO board, for 4G/LTE USB interface module)1x M.2 E-Key (IO board, UART and SDIO for WiFi/BT modules)The following features are also available on IO boardbut not externally:2x USB 3.0 in 2x 10-pin header1x LVDS 2ch with Backlight control1x Cap touch IF2x MIPI-CSI for cameras2x CAN-FD1x 5V DC
Stockage	16GB eMMC on board (option: up to 256GB)
Alimentation requise	12V~24V DC-IN
Alimentation	60W
Construction	SGCC
Couleur du châssis	Black
Montage	Wall mount, DIN rail
Poids	0.5 kg (1.1 lbs)
Dimensions	119mm (W) x 92mm (D) x 46mm (H)
Température de fonctionnement	-40°C~70°C (-40°F~158°F)
Température d’entreposage	-40°C~70°C (-40°F~158°F)
Humidité relative	0% to 90% RH at 60° C (non-condensing)
Vibrations	Non-operating: 3 Hz to 500 Hz, 15 mins
Chocs	Non-operating: 1G, 15 mins (x-, y-, z-axis)
Certification	CE / FCC Class-B
Système d’exploitation	Yocto 5.0Android 14Debian 12Support for other OS available upon request
