IBT268

Name: IBT268
Brand: IBT Technologies
SKU: IBT268
Availability: InStock

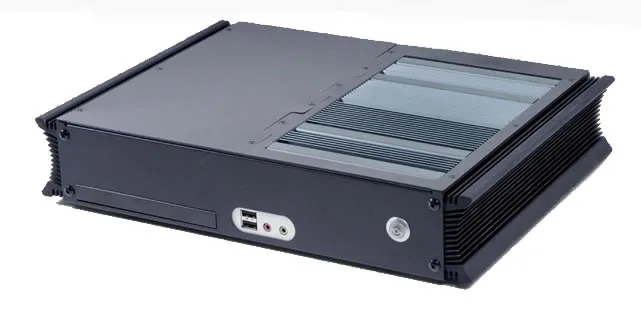

Système IBT268 Core Duo, Pentium M sans ventilateur — 2 PCIs expansion slots

Système IBT268 Core Duo, Pentium M sans ventilateur — 2 PCIs expansion slots. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

STOCKAGE

1 slim optical drive and 1 standard (2.5") HDD with anti-shock hard drive mounting cage

ALIMENTATION

Built-in 215W DC power board

DIMENSIONS

14.65"(372mm) x 10.59 "(269mm) x 2.76"(70mm) · 15"(383mm) x 11.25 "(282mm) x 2.76"(70mm) · - Fanless system case with MB910 with 120 watts AC-DC power adapter · - Fanless system case with Mi953 with 120 watts AC-DC power adapter · - 150 watts AC-DC power adapter alternative · - Wall mount brackets for IBT268 · - 150W totals power kit (internal DC-to-DC and External AC) · - Internal 12volts power kit for car

MATÉRIAU

Aluminum casing and heatsinks

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # IBT268

Spécifications

10 LIGNES

Matériau	Aluminum casing and heatsinks
Finish	Black color paint and aluminum front panel with anodized finish
Frontal Access	2x USB 2.0 ports · Slim type Optical Drive
Cooling	Copper heatpipes with heatsinks on the sides and top
Main Board	Mini-ITX form factor motherboard MB899
Drive Bays	1 slim optical drive and 1 standard (2.5") HDD with anti-shock hard drive mounting cage
Emplacements d’extension	2
Internal Power Supply	Built-in 215W DC power board
External AC Adapter	84Watts · Input (100~240 VAC) · Output (19VDC@6.32A)
Dimension (WxDxH)	14.65"(372mm) x 10.59 "(269mm) x 2.76"(70mm) · 15"(383mm) x 11.25 "(282mm) x 2.76"(70mm) · - Fanless system case with MB910 with 120 watts AC-DC power adapter · - Fanless system case with Mi953 with 120 watts AC-DC power adapter · - 150 watts AC-DC power adapter alternative · - Wall mount brackets for IBT268 · - 150W totals power kit (internal DC-to-DC and External AC) · - Internal 12volts power kit for car
