AGS102

Name: AGS102
Brand: IBASE Technology
SKU: AGS102
Availability: InStock

Système d’informatique en périphérie IoT Gateway ultra-compact — Intel® Atom® x7/x5, Pentium® & Celeron® Processors

Système d’informatique en périphérie IoT Gateway ultra-compact — Intel® Atom® x7/x5, Pentium® & Celeron® Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors

MÉMOIRE

1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

STOCKAGE

1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD

ENVIRONNEMENT

For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # AGS102

Spécifications

21 LIGNES

Carte mère du système	IB801/ IB802T (F-1 Stepping)
Type de processeur	Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors
Vitesse du système	Up to 2.5GHz
Mémoire	1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

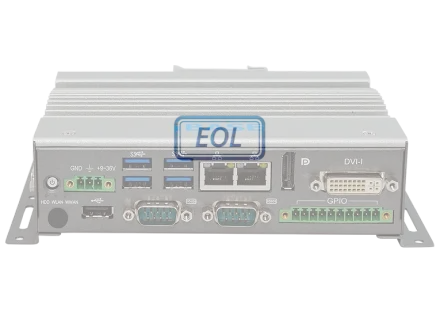

E/S externes du panneau arrière	1x DVI-I + 1x DisplayPort connector4x USB 3.0 ports, 1x USB 2.0 port2x RJ45 Gigabit Ethernet port3x LED indicators (HDD, WLAN, WWAN)1x power button with Green LED (Silver power button with Green LED for AGS102, Black power button with Blue LED for AGS102T)1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN moduleAGS102T: 2x RS232/422/485 ports for COM#3/COM#4AGS102: 2x RS232 ports for COM#3/COM#41x 4-in & 4-out GPIO with isolation

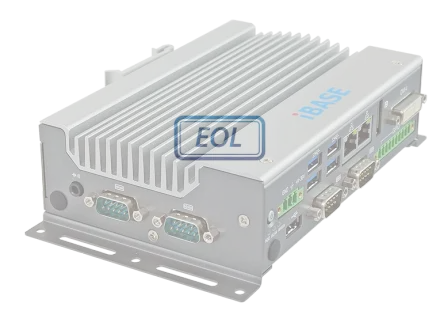

E/S externes du panneau gauche	2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out (AGS102 for 2W mono speaker, AGS102T for stereo output )
E/S externes du panneau droit	1x SIM card slot
Emplacements d’extension	1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)1x 2230 M.2 E-key socket for WLAN & BT (USB 2.0 + PCI-E)1x 3042 M.2 B-key socket for WWAN & SSD (USB 2.0 + SATA)
Stockage	1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD
Construction	Aluminum & steel
Couleur du châssis	Silver & Gray

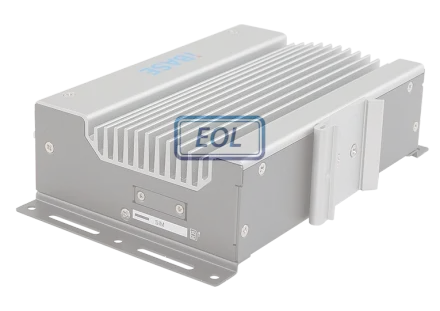

Montage	DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included)
Dimensions	160mm (W) x 110mm (D) x 44mm (H)6.3" (W) x 4.33" (D) x 1.73" (H)
Poids	1kg
Température de fonctionnement	For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	5~90% @ 45°C, (non-condensing)
Vibrations	Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Chocs	Operating: 30G/11 ms Duration (with MIL-STD-810G)Non-operating: 40G/11 ms Duration (with MIL-STD-810G)
Certification	CE / LVD / FCC Class A
Systèmes d’exploitation	N/A
