AMÉRIQUE DU NORDCERTIFIÉ ISO 9001
MODULES EMBARQUÉS / EN STOCK

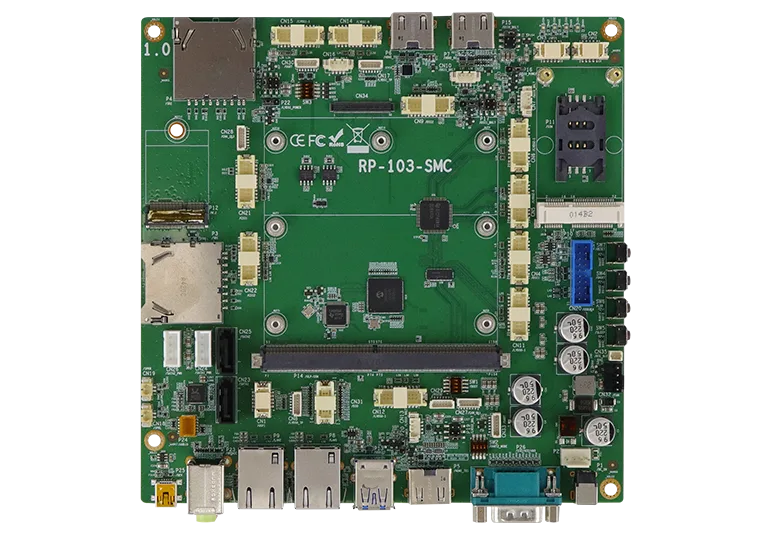

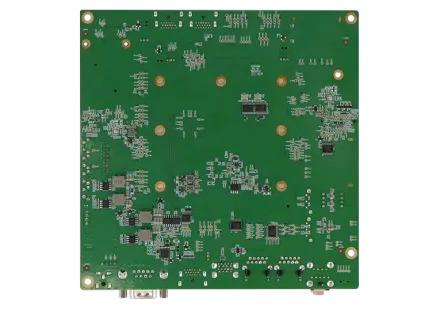

RP-103-SMC
Carte porteuse — SMARC™ 2.1 CPU Module
Carte porteuse — SMARC™ 2.1 CPU Module. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
ENVIRONNEMENT
-40°C ~ +85°C (-40°F ~ 185°F)
ENTRÉE D’ALIMENTATION
19V~24V DC-in jack and internal header
FORMAT
Carrier Board Compliant with SMARC™ 2.1
E/S DE BORD
1x 19V~24V DC-in Jack2x RJ45 Gigabit LAN (one for RM-N8 only)2x USB 3.01x OTG Micro USB 2.02x HDMI TX (one for RM-N8 only)1x HDMI RX (for RM-N8 only)1x Headphone & Mic1x COM (RS232/422/485 by switch)2x SD slot (one for RM-N8 only)
SMARC 2.1 Carrier BoardCarrier Board for SMARC…
P/N # RP-103-SMC
Spécifications
10 LIGNES
| Format | Carrier Board Compliant with SMARC™ 2.1 |
|---|---|
| E/S de bord | 1x 19V~24V DC-in Jack2x RJ45 Gigabit LAN (one for RM-N8 only)2x USB 3.01x OTG Micro USB 2.02x HDMI TX (one for RM-N8 only)1x HDMI RX (for RM-N8 only)1x Headphone & Mic1x COM (RS232/422/485 by switch)2x SD slot (one for RM-N8 only) |
| E/S internes | 1x 19V~24V DC-in header1x 12V Fan header4x CAN bus 2.0b (three for RM-N8 only)3x 18/24-bit dual channel LVDS (two for RM-N8 only)4x LCD backlight2x MIPI-CSI2 (one for RM-N8/RM-N8M only)2x MIPI-DSI (one for RM-N8 only)2x USB 3.012x GPIOs2x RS232 (RX/TX only)2x I²C2x SATA III and power (one for RM-N8 only)1x I²S1x QSPI1x Full-size Mini PCI-E1x SIM socket1x M.2 E-Key (2230)1x Speaker out (R/L)1x RTC battery1x 4-wire UART |
| Jumpers, Switches & Buttons | 1x Boot select switch1x I/O and display select switch1x Power button1x Reset button1x LID button1x Sleep button4x Backlight power (3V3/5V/12V) jumper3x LCD power 3V3/5V jumper |
| Entrée d’alimentation | 19V~24V DC-in jack and internal header |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Environnement | Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins |
| Température de fonctionnement | -40°C ~ +85°C (-40°F ~ 185°F) |
| Systèmes d’exploitation pris en charge | Depends on CPU Module |
| Certification | CE/FCC Class-B |
E/S — Panneau arrière
Accès frontal
Où le RP-103-SMC est déployé
CAS D'USAGE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
CAS D'USAGE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
CAS D'USAGE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
CAS D'USAGE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
Vous avez un cas d'usage précis ?
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
- DEMANDER →RP-103-SMC datasheetDisponible sur demande
- DEMANDER →RP-103-SMC user manualDisponible sur demande
- DEMANDER →Driver packageDisponible sur demande
- DEMANDER →Declaration of Conformity (CE)Disponible sur demande
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
