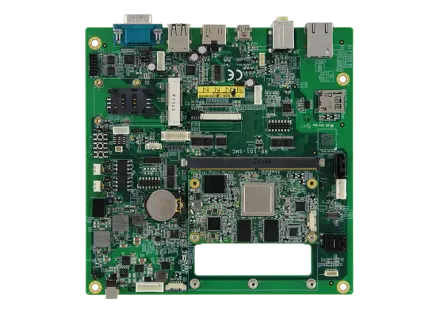

RM-F6 Series

Name: RM-F6 Series
Brand: IBASE Technology
SKU: RM-F6_series
Availability: InStock

Wide-Temperature SMARC™ 1.0 Module with NXP ARM® Cortex-A9 i.MX 6Dual/6Solo Processor

Wide-Temperature SMARC™ 1.0 Module with NXP ARM® Cortex-A9 i.MX 6Dual/6Solo Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

NXP i.MX 6Dual/6Solo Cortex™-A9 processor with 512KB L2 cache

MÉMOIRE

I-grade 1GB DDR3 on board

AFFICHAGE

Supports 18/24-bit parallel LCD & LVDS Interface (up to1366 x 768)Supports HDMI interface (1920 x 1080)

ETHERNET

1x GbE LAN

NXP i MX8M based SMARC…SMARC Module

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # RM-F6_series

Spécifications

24 LIGNES

Format	SMARC™ 1.0
Processeur	NXP i.MX 6Dual/6Solo Cortex™-A9 processor with 512KB L2 cache
Mémoire système	I-grade 1GB DDR3 on board
Mémoire flash	N/A
Affichage	Supports 18/24-bit parallel LCD & LVDS Interface (up to1366 x 768)Supports HDMI interface (1920 x 1080)
Codec vidéo	Multi-format HD1080 video Decode and Encode
Graphiques	N/A
Audio Interface	I²S, SPDIF
LAN	1x GbE LAN
USB	2x USB 2.0 port & 1x USB OTG Interface
Interface de capture d’image	CSI Interface for MIPI camera
Serial Interface	4x UART, 1x SPI Interface
Media Interface	2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)
PCI-E	1x PCI-E interface
SATA	1x SATA 2.0 (Dual only)
GPIO	12x GPIO
I²C	3x I²C *(4x I²C in F6SO1)
Autres	Wireless WCN3980 (option)
CAN Bus	2x CAN 2.0B
Dimensions	82mm x 50mm (3.2" x 2")
Environnement	Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3Hz to 500Hz, 15 mins
Température de fonctionnement	-40°C ~ +85°C (-40°F ~ 185°F)
Systèmes d’exploitation pris en charge	Ubuntu Linux 11.10Android 4.3
Certification	CE/ FCC Class A
