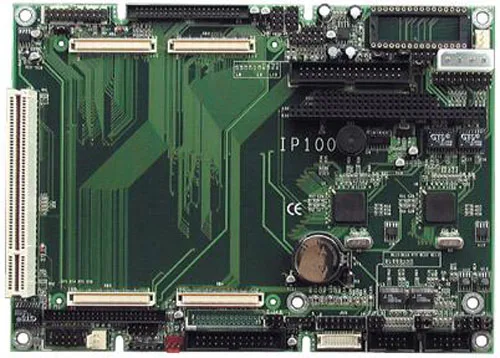

Carte IP100P-R - 5.25-inch Disk-Size ETX Base
Carte IP100P-R - 5.25-inch Disk-Size ETX Base. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
STOCKAGE
-20°C~80°C (-7°F~4°F)
AFFICHAGE
LVDS interface (Hirose DF13) connector
ETHERNET
Two Intel® 82599 Fast Ethernet Controller · Pin headers for three RJ-45 connectors (one RJ-45 is for the built-in LAN on the ETX CPU module)
ENVIRONNEMENT
0°C~60°C (32°F~140°F)
P/N # IP100
Documentation Spécifications
21 LIGNES
| Fonction Ethernet | Two Intel® 82599 Fast Ethernet Controller · Pin headers for three RJ-45 connectors (one RJ-45 is for the built-in LAN on the ETX CPU module) |
|---|---|
| VGA Connector | Pin header for VGA CRT connector |
| LCD Panel Connector | LVDS interface (Hirose DF13) connector |
| Interface IDE | One enhanced IDE interface supports 2 IDE devices in UDMA/33/66/100, PIO mode 4 and bus master mode · Two 44-pin header connectors |
| Interface FDD | Pin header supports up to two floppy disk drives: 3.5"(720KB, 1.44MB or 2.88MB) and/or 5.25"(360KB or 1.2MB); with 3 Mode support |
| Ports série | Pin headers for two RS-232 ports (COM1 & COM2) |
| Port parallèle | One parallel port supports SPP/EPP/ECP |
| USB | Pin header for four (4) USB ports |
| IrDA | Pin header for infrared module |
| DiskOnChip Interface | DiskOnChip socket supports 2MB~144MB DiskOnChip flash disks |
| Connecteur de souris | Pin header for PS/2 connector |
| Connecteur de clavier | Pin header for PS/2 connector · 5-pin header for external keyboard connector |
| Fan Power Connector | System fan power connector · CPU fan power connector |
| Other Connectors | TV out connector · IrDA connector · Backlight control · System Function connector · Main Power connector · Audio connector · CD-In connector · ATX Power Control connector |
| On board Jumpers | DiskOnChip Address Select · COM2 RS232/422/485 Select · Onboard LAN1 Select · Onboard LAN2 Select · LCD Power Setting |
| Emplacements d’extension | One 32-bit PCI slot · One PC/104 connector |
| Format | 5.25-inch Disk-Size form factor |
| Dimensions | 203mm x 146mm |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-7°F~4°F) |
| Humidité relative | 10%~90% (non-condensing) |
