MB895

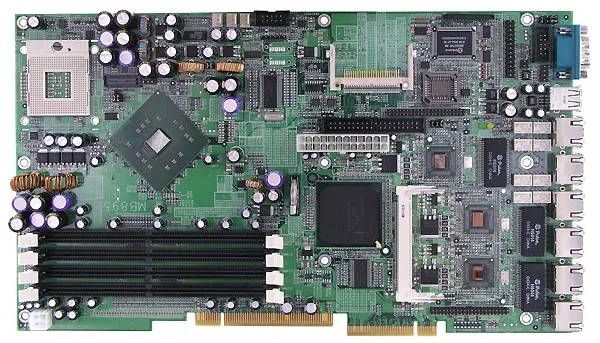

Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet
Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | Socket 479 |
|---|---|
| CPU | Supports Intel® Pentium® M, Celeron® M · Up to 2.26GHz |
| CPU | Front Side Bus (FSB) · 400MHz / 533MHz |
| Chipset | Intel® E7520 chipset + 6300ESB |
| BIOS | Award BIOS, 4Mbit, ACPI supported |
| System Memory | Four DDR2 sockets support up to 4GB DDR Registered memory; PC400/533 DDR SDRAM · Primary LAN · Three Intel® 82571EB dual port 4-lane PCI Express Gigabit LAN · Six RJ-45 ports on board · Multi I/O · 6300ESB, Winbond @83627HF chipset · Supports 2x IDE, 2x SATA, 2x RS-232, 1x FDD, 1x KB, · 1x Mouse, 2x SATA · IDE Interface |
| Built in 6300EB; Two enhanced IDE channel supports | IDE channel 1 - 40 pin for master; 44 pin for slave · IDE channel 2 - CF socket for master · 2 IDE devices; supports UDMA33/66/100 · SSD Interface · CompactFlash socket, Type II, via IDE2 |
| Serial ATA | Supports 2 ports |
| USB (2.0) | Supports 4 USB ports on board · and 2 USB ports via pin header |
| Hardware Monitoring | Built in W83792D; monitors system/CPU · temperature and voltage status · Built in W83792D for Smart Fan 2 functionality |
| Watchdog Timer | 256 levels · IrDA · Pin header |
| Keyboard and Mouse Connector | PS/2 type |
| Edge Connectors | 6x RJ45, COM1, 4x USB 2.0 |
| Expansion | 1x Mini PCI socket · Edge connector supporting 8-lane PCI Express and PCI 33MHz/32-bit interfaces |
| Power Connector | 24-pin ATX power connector |
| Form Factor | Custom Motherboard |
| Dimensions | 183mm x 318mm |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Features
| Feature 1 | Socket 479 for Intel® Pentium® M and Intel® Celeron® M processors |
|---|---|
| Feature 2 | IntelR E7520 Chipset, Four DDR400 memory sockets |
| Feature 3 | Three Intel® 82571 PCIe to dual GbE controllers for six GbE support |
| Feature 4 | Edge connector supporting 8-lane PCI-Express and PCI 33MHz/32-bit interfaces |
| Feature 5 | Two SATA ports, six USB 2.0 ports, 3 COM ports, watchdog timer |
| Feature 6 | Mini PCI socket, CF socket, front RJ45 LED indicators |
| Feature 7 | 183mm x 318mm |
Ordering Information
| MB895 | - Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet |
|---|---|
| IP360 | - Backplane for MB895 with PCI Express and PCI slots |
