INA7605

Name: INA7605
Brand: IBASE Technology
SKU: INA7605
Availability: InStock

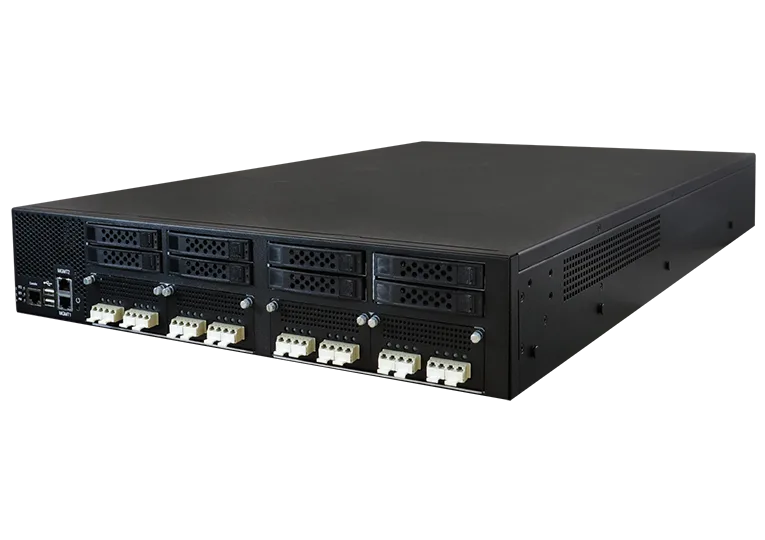

Appliance réseau Performance 2U — Dual 5th Gen Intel® Xeon® Scalable Processors & up to 64 GbE Ports

Appliance réseau Performance 2U — Dual 5th Gen Intel® Xeon® Scalable Processors & up to 64 GbE Ports. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Dual 5th Gen Intel® Xeon® Scalable Processors LGA4677 (Emeralds Rapids)

MÉMOIRE

16x DDR5 RDIMMs up to 4800 MT/s, Max. 1,024GB

STOCKAGE

HDD: 8x 2.5” Swappable (by SHQ SKU)1x M.2 NVME 22801x SATA DOM

AFFICHAGE

1x VGA (via optional IDN101 module)

Performance 2U Network…Rackmount Network Appliance

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # INA7605

Spécifications

18 LIGNES

Processeur	Dual 5th Gen Intel® Xeon® Scalable Processors LGA4677 (Emeralds Rapids)
Chipset	Intel® C741 PCH chipset
Mémoire	16x DDR5 RDIMMs up to 4800 MT/s, Max. 1,024GB
Affichage	1x VGA (via optional IDN101 module)
Ethernet	Onboard: 2x Intel® I210-AT GbENIC module slots: Max. 8x IBN cards, Max. 64 GbE
Dérivation	Via IBN module SKU
Extension	1x PCI-E x16 expansion slot1x M.2 (PCI-E, SATA )
IPMI	Optional module, compliant with IPMI 2.0
Stockage	HDD: 8x 2.5” Swappable (by SHQ SKU)1x M.2 NVME 22801x SATA DOM
TPM	TPM 2.0

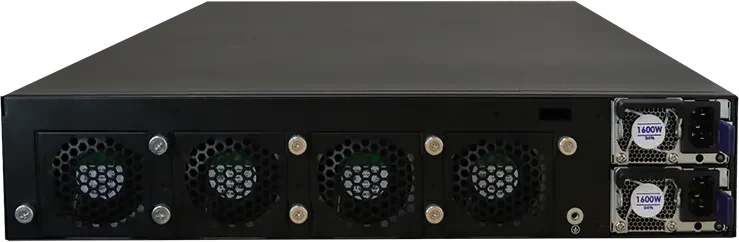

E/S	1x LCM3x LED (Power / HDD / Status)1x RJ45 console2x USB 2.02x MGMT ports (LAN2 share with IPMI NC-SI port)
Alimentation	Full range 1600W 1+1 redundant power supply
Dimensions	438(W) x 660(D) x 87.5(H)mm17.24” (W) x25.9” (D) x 3.44” (H)
Poids	24kg
Température de fonctionnement	0°C~ 40°C (32°F~104°F)
Température d’entreposage	-20° ~ 70°C (-4°F~158°F)
Humidité en fonctionnement	5% ~ 90%
Certification	CE/FCC
