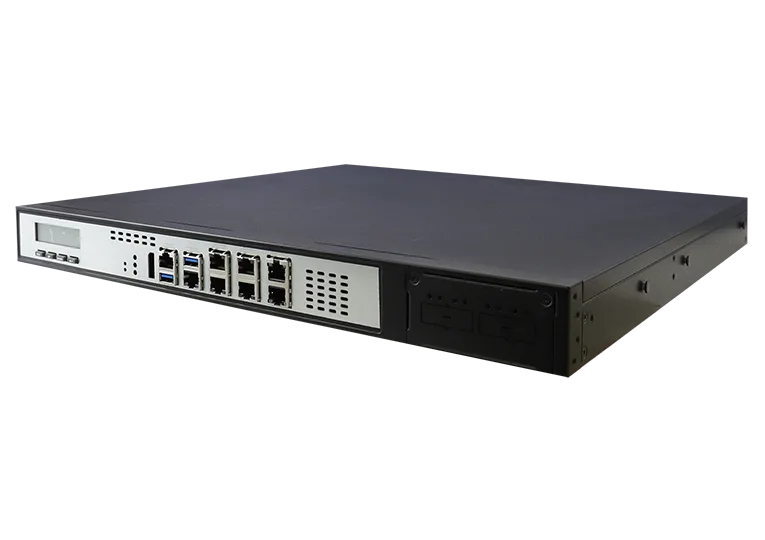

INA7302
Performance 1U Network Appliance with AMD Ryzen™ 7000 series & up to 14 GbE Ports
Performance 1U Network Appliance with AMD Ryzen™ 7000 series & up to 14 GbE Ports. Local warranty support and engineering customization available on request.
Specifications
| CPU | AMD Ryzen™ 7000 seriesAM5 LGA1718 |
|---|---|
| Chipset | AMD B650 PCH |
| Memory | 2x DDR5 ECC UDIMMs up to 5600 MT/s, Max. 128GB |
| Display | 1x Display Port1x LCM |
| Ethernet | 1x 2.5GbE RJ45 (Intel® I210V)4x 1GbE RJ45 (Intel® I350-AM4)2x 10GbE RJ45 (Intel® E610-XAT2)1x IBN cards1x HLHF PCIE card |
| Bypass | Via IBN module SKU |
| Expansion | 1x PCI-E x16 expansion slot#1 (Slot#1 usage cansupport Gen5x16, Duo slot usage will render both slots to PCI-E Gen5x8 )1x PCI-E x8 expansion slot#22x M.2 (PCI-E Only) |
| IPMI | Optional module, compliant with IPMI 2.0 |
| Storage | HDD/SSD: 1x 2.5” Internal2x M.2 NVME (2242/2280)1x SATA DOM |
| TPM | TPM 2.0 |
| I/O | 1x LCM3x LED (Power / HDD / Status)1x RJ45 console2x USB 3.01x MGMT port |
| Power Supply | Full-range 600W 1+1 redundant power supply |
| Dimensions | 438(W) x 450(D) x 44.5(H)mm |
| Weight | N/A |
| Operating Temperature | 0°C~ 40°C (32°F~104°F) |
| Storage Temperature | -20° ~ 70°C (-4°F~158°F) |
| Operating Humidity | 5% ~ 90% |
| Certification | CE/FCC |
I/O — Rear panel
Front access
Where the INA7302 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
