INA1607

Name: INA1607
Brand: IBASE Technology
SKU: INA1607
Availability: InStock

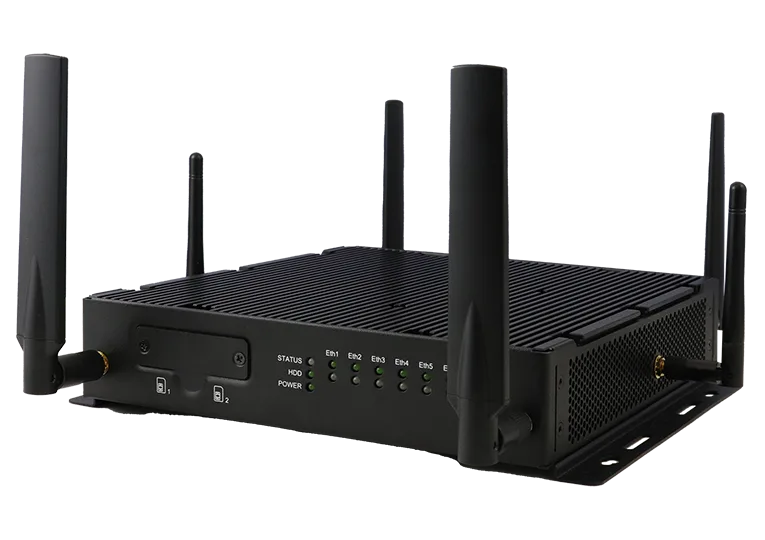

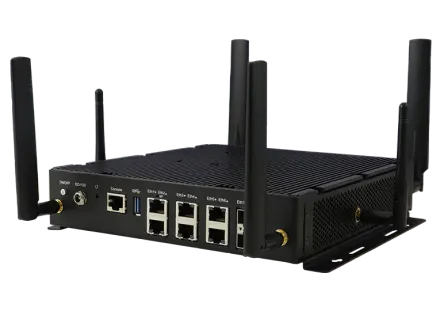

Desktop uCPE/SD-WAN Appliance with Intel® Atom® x7405C (formerly Amston Lake) & up to 2x GbE Ports

Desktop uCPE/SD-WAN Appliance with Intel® Atom® x7405C (formerly Amston Lake) & up to 2x GbE Ports. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7405C Processor (formerly Amston Lake)

MEMORY

1x DDR5 SODIMMUp to 4800MHzMax. 16GB (ECC/non-ECC)

STORAGE

1x 2.5” SATA drive bay1x 16GB/32GB/64GB eMMc

DISPLAY

N/A

Desktop uCPE SD WAN…uCPE SD WAN Appliance

REQUEST QUOTE REQUEST DATASHEET

P/N # INA1607

Specifications

18 ROWS

CPU	Intel® Atom® x7405C Processor (formerly Amston Lake)
Chipset	N/A
Memory	1x DDR5 SODIMMUp to 4800MHzMax. 16GB (ECC/non-ECC)
Display	N/A
Ethernet	4x Intel® I226-V 2.5 GbE1x Intel® i350-AM4 (2x GbE RJ45 and 2x GbE SFP)
Bypass	1x segment, LAN 1/2
Expansion	1x Mini PCI-E slot1x M.2 slot (B-Key 3042 and 3052, PCI-E(x1) & USB 3.0 signal) for LTE/5G2x Micro SIM for M.2 LTE/5G module1x M.2 slot (B-Key 3042 and 3080) for SATA, PCI-E for storage
IPMI	N/A
Storage	1x 2.5” SATA drive bay1x 16GB/32GB/64GB eMMc
TPM	TPM 2.0
I/O	3x LED (Status/HDD/Power)1x Factory default button (GPIO)1x RJ45 console2x USB 3.0
Power Supply	Full-range 84W power adaptor / 12V
Dimensions	210 mm(W) x 231 mm(D) x 44 mm(H)8.26” (W) x 9.09” (D) x 1.73” (H)
Weight	2.4 KG
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity	5% ~ 90%
Certification	CE/FCC
