INA1600

Name: INA1600
Brand: IBASE Technology
SKU: INA1600
Availability: InStock

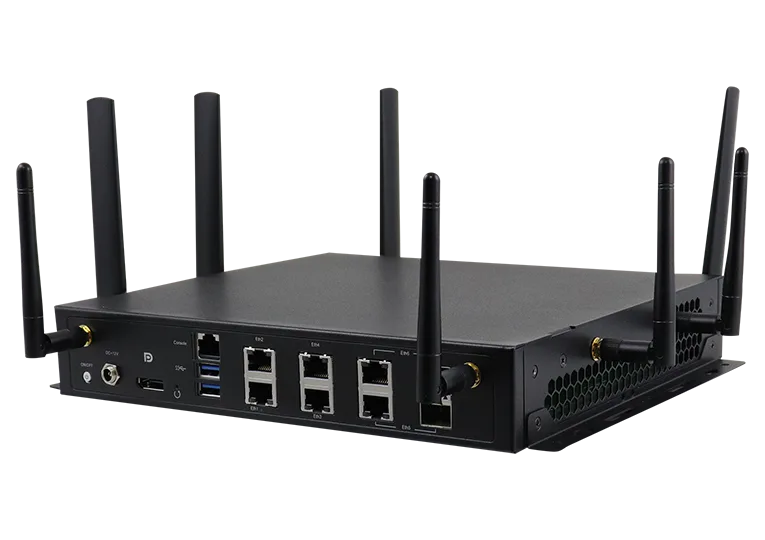

Desktop uCPE/SD-WAN Appliance with AMD Ryzen™ Embedded V1605B/R1505G & up to 6x GbE Ports

Desktop uCPE/SD-WAN Appliance with AMD Ryzen™ Embedded V1605B/R1505G & up to 6x GbE Ports. Local warranty support and engineering customization available on request.

CPU

INA1600V: AMD Ryzen™ Embedded V1605BINA1600R: AMD Ryzen™ Embedded R1505G

MEMORY

2x DDR4 SO-DIMMsUp to 3200MHz, Max. 32GB (ECC/non-ECC)

STORAGE

1x 2.5" SATA drive bay

DISPLAY

1x DisplayPort

Desktop uCPE SD WAN…uCPE SD WAN Appliance

REQUEST QUOTE DATASHEET (PDF)

P/N # INA1600

Driver

Specifications

18 ROWS

CPU	INA1600V: AMD Ryzen™ Embedded V1605BINA1600R: AMD Ryzen™ Embedded R1505G
Chipset	N/A
Memory	2x DDR4 SO-DIMMsUp to 3200MHz, Max. 32GB (ECC/non-ECC)
Display	1x DisplayPort
Ethernet	INA1600V:4x Intel® I210-AT GbE1x Intel® i350-AM2 (2x GbE RJ45 or SFP combo ports)INA1600R:4x Intel® I210-AT GbE
Bypass	1x segment, LAN 1/2
Expansion	1x Mini PCI-E slot1x M.2 slot (B-Key 3042, PCI-E(x1) & USB 3.0 signal)2x Micro SIM for M.2 or Mini PCI-E 4G/LTE module1x M.2 slot (B/M-Key 3080, PCI-E(x2) & USB 3.0 & SATA)
IPMI	N/A
Storage	1x 2.5" SATA drive bay
TPM	TPM 2.0

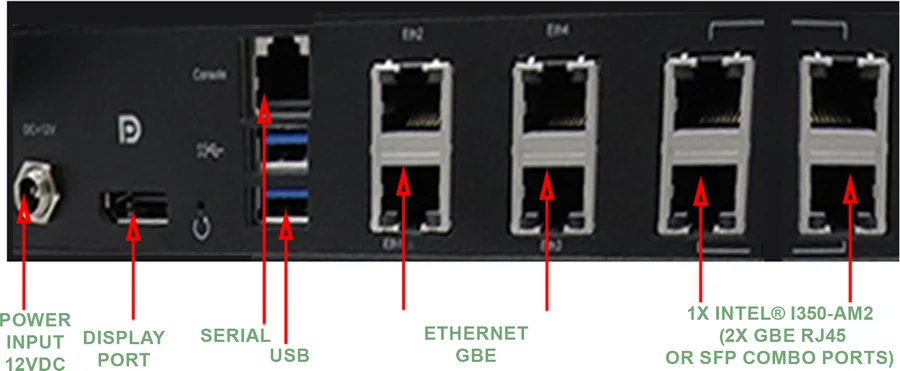

I/O	3x LED (Status/HDD/Power)1x Factory default button (GPIO)1x RJ45 console2x USB 3.01x DisplayPort
Power Supply	Full range 84W adaptor / 12V
Dimensions	250(W) x 231(D) x 44(H) mm9.84" (W) x 9.09" (D) x 1.73" (H)
Weight	5.3 kg (11.68 lbs)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity	5% ~ 90%
Certification	CE/FCC
