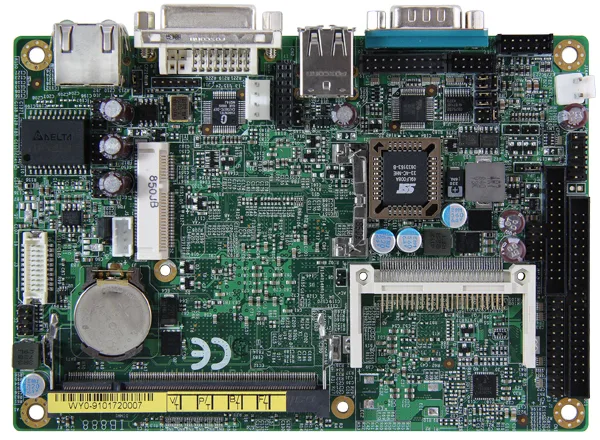

IB888
Intel Atom™ Poulsbo-XL SBC, 3.5-inch SBC, (Atom) Embedded board., barebone system
Intel Atom™ Poulsbo-XL SBC, 3.5-inch SBC, (Atom) Embedded board., barebone system. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel Atom™ Poulsbo-XL, 533FSB 1.33 ~ 1.66GHz |
|---|---|
| Chipset | Intel™ SCH US15W XL |
| BIOS | Award BIOS, ACPI supported |
| System Memory | One DDR2 SODIMM socket, single channel · Supports up to 2GB DDR2 400/533 SDRAM |
| VGA | Intel™ SCH US15W XL integrated GMA500 Supports DVI / 1-CH 24-bit LVDS interface |
| LAN | Realtek RTL8111C Gigabit LAN · RJ-45 on board |
| Audio | Chipset built-in audio controller with Realtek ALC 662 AC97 Codec Supports 5.1-channel (Line-in, Line-out & Microphone) |
| Storage Interface | One channel IDE; supports Ultra DMA 33 · 44-pin header x 1 (IDE1) · One CF socket Supporct CompactFlash |
| Serial Ports | Three RS-232, One RS-232/422/485 |
| USB | 8x ports total, · 4 ports via pin header · CPU: Intel Atom™ Poulsbo-XL · MEM: One DDR2 SO-DIMM; Max. 2GB · CRT: DVI and 1-ch 24-bit LVDS · LAN: PCI-Express Gigabit Realtek · I/O: 8 x USB2.0, 4 x COM, IDE44 · I/O: Mini PCIe (x16) and CF Socket · Watchdog timer, Digital I/O · Power by 12V DC-in |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in / 4 out |
| Keyboard and Mouse Connector | PS/2 type |
| Edge Connectors | RJ45, DVI, 2x USB, COM1, DC-in |
| Power Connector | DC Power jack +12V DC-in |
| Form Factor | 3.5-inch SBC |
| Dimensions | 102mm x 147mm |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-7°F~4°F) |
| Relative Humidity | 10%~90% (non-condensing) |
I/O — Rear panel
Front access
Where the IB888 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
