FWA8708

Name: FWA8708
Brand: IBASE Technology
SKU: FWA8708
Availability: InStock

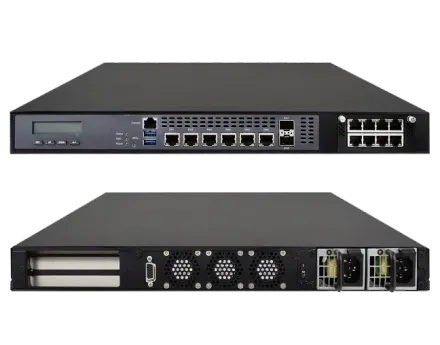

FWA8708 - Enterprise 1U Network Appliance up to 16 GbE Ports with 9th or 8th Gen Intel® Xeon® / Core™ i7/i5/i3 Processor

FWA8708 - Enterprise 1U Network Appliance up to 16 GbE Ports with 9th or 8th Gen Intel® Xeon® / Core™ i7/i5/i3 Processor. Local warranty support and engineering customization available on request.

CPU

FWA8708-C/CR : LGA1151 socket for 9th or 8th Gen Intel® Xeon® /Core™i7/i5/i3 processors · FWA8708-H/HR : LGA1151 socket for 9th or 8th Gen Intel® Core® i7/i5/i3 processors

MEMORY

FWA8708-C : 4x DDR4 DIMMs, up to 2666MHz, Max. 64GB UDIMM (ECC or non-ECC) · FWA8708-H : 2x DDR4 DIMMs, up to 2666MHz, Max. 32GB UDIMM (Non-ECC)

STORAGE

2x 2.5” / 3.5” SATA drive bay · 1x M.2 slot (M-key with PCIe x4 and SATA signal)

DISPLAY

1x VGA via pin-header · 1x LCM

REQUEST QUOTE REQUEST DATASHEET

P/N # FWA8708

Specifications

16 ROWS

CPU	FWA8708-C/CR : LGA1151 socket for 9th or 8th Gen Intel® Xeon® /Core™i7/i5/i3 processors · FWA8708-H/HR : LGA1151 socket for 9th or 8th Gen Intel® Core® i7/i5/i3 processors
Chipset	FWA8708-C : Intel® C246 PCH chipset · FWA8708-H : Intel® H310 PCH chipset
Memory	FWA8708-C : 4x DDR4 DIMMs, up to 2666MHz, Max. 64GB UDIMM (ECC or non-ECC) · FWA8708-H : 2x DDR4 DIMMs, up to 2666MHz, Max. 32GB UDIMM (Non-ECC)
Display	1x VGA via pin-header · 1x LCM
Ethernet	FWA8708-C: On board: 6x Intel® I210AT + 2x Intel® I210IS GbE, NIC module slot: 1x IBN card, Max. 6 GbE · FWA8708-H : 6x Intel® I211AT GbE
Bypass	2x segment, LAN3/4 and 5/6
Expansion	1 or 2x PCI-E slot on rear panel · 1x Mini PCI-E slot (PCIe, SATA signal) · 1x M.2 slot (M-key with PCIe x4 and SATA signal)
IPMI	Optional module, compatible with IPMI 2.0
Storage	2x 2.5” / 3.5” SATA drive bay · 1x M.2 slot (M-key with PCIe x4 and SATA signal)
TPM	TPM 2.0

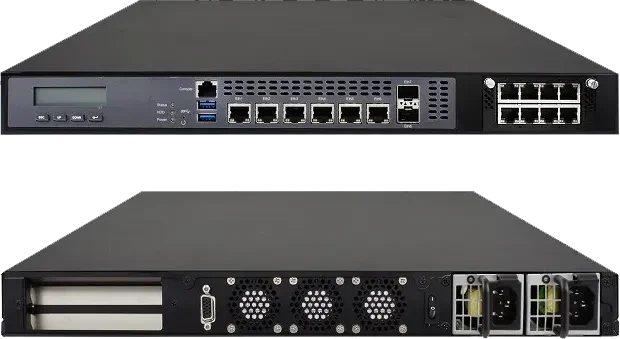

I/O	3x LED (Power / HDD / Status) · 1x Factory default button (GPIO) · 1x RJ45 console · 2x USB 3.0 · 1x MGMT (LAN1 share with IPMI NC-SI port)
Power Supply	Full range 250W ATX power supply or · 300W 1+1 Redundant power supply
Dimensions	438 mm (W) x 422 mm (D) x 44 mm (H) · 17.24”(W) x 16.61”(D) x 1.73”(H)
Weight	9.0 kg (19.84 lbs)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)

Features

7 ROWS

Feature 1	9th or 8th Gen Intel® Xeon® / CoreTM i7/i5/i3 processors with Intel C246 or H310 PCH
Feature 2	6x RJ45 GbE + 2x SFP GbE on board
Feature 3	4x or 2x DDR4 DIMMs; Max. 64GB (ECC/non-ECC)
Feature 4	Optional IPMI 2.0 module(for FWA8708-C only)
Feature 5	Optional NIC slot (for FWA8708-C only)
Feature 6	1x Mini PCI-E slot
Feature 7	1x M.2 slot (for FWA8708-C only)

Ordering Information

1 ROWS

FWA8708-C	- 1U Rackmount Appliance, MBN805C 8th Gen Intel® Xeon® / Core™ i7/i5/i3 Processors, C246 PCH, 4x DDR4 DIMMs, Max. 16 GbE Ports, 250W PSU, CPU Cooler, optional IPMI, Barebone without RAM/HDD/Drive Bay Kit/IBN Card
