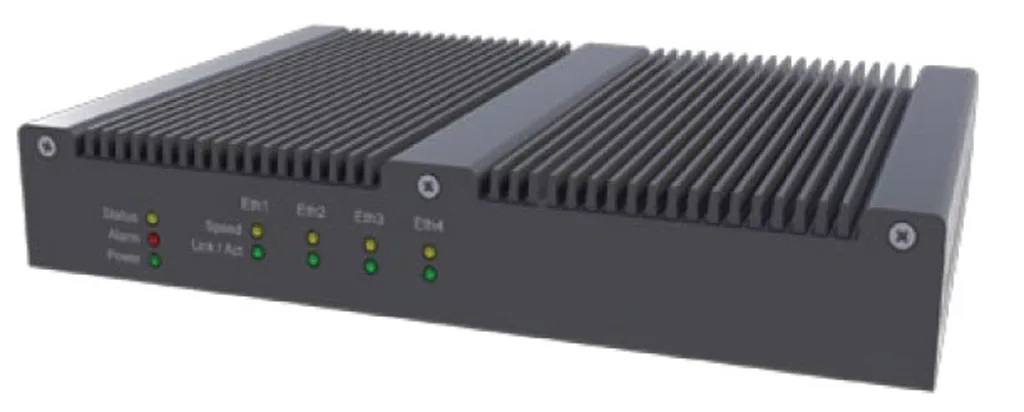

FWA6304-D25
Entry Level Security Network Appliance w/Intel® Atom™ D2550-Based Fanless and 4 GbE Ports
Entry Level Security Network Appliance w/Intel® Atom™ D2550-Based Fanless and 4 GbE Ports. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel® Atom™ Processor D2550, 1.86 GHz, 1M Cache |
|---|---|
| Chipset | Intel® NM10 PCH |
| Memory | 1x DDR3 non-ECC SODIMM, 800 MHz~1066 MHz, up to 4GB |
| Network Interface | 4x Intel® 82583V GbE controller |
| Expansion Slot | 1x Mini-PCI, 1x Mini PCI-E (USB signal) |
| Storage | 1x 2.5" SSD drive bay, 1x CF scoket |
| Serial I/O | 1x RJ45 console, COM2 pin header |
| VGA | Via pin header |
| LED Indicator | Power/Status/Alarm indication LEDs |
| Power Supply | Full range 40W power adapter / 12V |
| Dimensions | 225 mm (W) x 156 mm (D) x 36 mm (H) |
| Weight | 1.6 kg (3.53 lbs) |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20 ~ 70°C (-4°F~158°F) |
| Operating Humidity | 5~ 90% (non-condensing) |
| Certification | CE/FCC |
I/O — Rear panel
Front access
Where the FWA6304-D25 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
