CMI300998

Name: CMI300998
Brand: IBASE Technology
SKU: CMI300998
Availability: InStock

CMI300-998 Slim Spacer System with Razen motherboard Mini-iTx size

CMI300-998 Slim Spacer System with Razen motherboard Mini-iTx size. Local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded V1000 Series (V1807B)

MEMORY

2x 4GB DDR4 SO-DIMM, Max. 32GB

STORAGE

1x 2.5’’ SSD

OPERATING TEMP.

0°C~45°C (32°F~113°F)

P/N # CMI300998

21 ROWS

System Mainboard	MI988F
CPU Type	AMD Ryzen™ Embedded V1000 Series (V1807B)
System Speed	Up to 3.8GHz
Memory	2x 4GB DDR4 SO-DIMM, Max. 32GB
Construction	Aluminum and steel
Chassis Color	Black
Front Panel External I/O	2x Antenna hole reserved · Power button

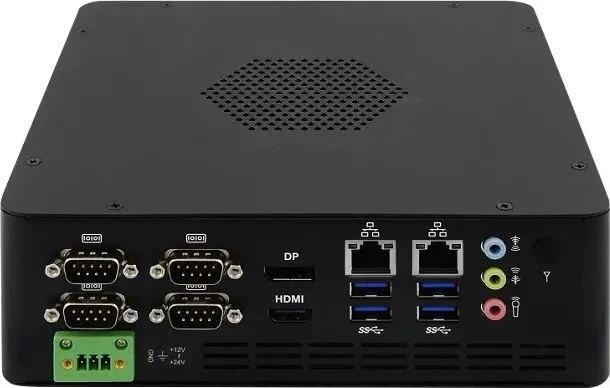

Rear Panel External I/O	2x RS232/422/485 for COM#1~#2 · 2x RS232 for COM#3~#4 · 4x USB 3.1 ports · 2x RJ-45 Gigabit Ethernet port · 1x HDMI+DisplayPort · 1x Audio port for [Line-in / Line-out / Mic-in] · 1x Antenna hole reserved
Expansion Slots	1x PCI-E (x8), 1x Mini PCI-E socket, 1x M.2 (M Key:2280)
Storage	1x 2.5’’ SSD
Mounting	Desktop or wall mount bracket · Optional VESA mount kit
Weight	1.8kg
Dimensions	200mm(W) x 200mm(D) x 62mm(H) · 7.87” (W) x 7.87” (D) x 2.44” (H)
Operating Temperature	0°C~45°C (32°F~113°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating 0.25Grms / 5~500Hz
Non-operating	1Grms / 5~500Hz
Shock	Operating 20G / 11ms
Non-operating	40G / 11ms
Certification	CE/FCC Class A

7 ROWS

Feature 1	AMD Ryzen™ Embedded V1807B on board
Feature 2	2x DDR4 SO-DIMM, Max. 32GB
Feature 3	Supports HDMI and DisplayPort
Feature 4	2x Gigabit Ethernet, 4x USB 3.1, 4x COM
Feature 5	Wall mount kit included, optional VESA mount kit
Feature 6	1x Mini PCI-E socket, 1x M.2 (M-key)
Feature 7	Dimensions: 200(W) x 200(D) x 62(H)mm

1 ROWS

CMI300-988-1807S	- Embedded System with MI988F-1807 (AMD V1807B 3.35/3.8GHz on board), w/ 128GB 2.5'' SSD, 4GB x1 DDR4 memory, 84W power adaptor (RoHS)
