CMI300-997
Slim System with MI997AF Mini-ITX Motherboard
Slim System with MI997AF Mini-ITX Motherboard. Local warranty support and engineering customization available on request.
CPU
13th/12th Intel® core™ desktop SoC processors (45W or 15W TDP)
MEMORY
2x DDR5-5600/4800 SO-DIMM, Max. 64GB
STORAGE
2x M.2 2280 M-Key for NVMe SSD
OPERATING TEMP.
0 °C ~ +45 °C (32°F~113°F)
CMI Series System with…Mini ITX System
P/N # CMI300-997
Driver Specifications
20 ROWS
| System Mainboard | MI997AF |
|---|---|
| CPU Type | 13th/12th Intel® core™ desktop SoC processors (45W or 15W TDP) |
| System Speed | Up to 4.8GHz |
| Memory | 2x DDR5-5600/4800 SO-DIMM, Max. 64GB |
| Front-side Panel I/O | 4x Antenna hole reservedpower button with LED indicator |
| Rear-side Panel I/O | 2x RS232/422/485 port for COM#1~COM#22x DisplayPort + 1x HDMI6x USB 3.2 ports2x RJ-45 2.5G LAN3-port Audio Jack1x DC-jack |
| Storage Interface | 2x M.2 2280 M-Key for NVMe SSD |
| Expansion Slots | 1x M.2 B-Key 3052 (LTE/5G/4G)1x M.2 E-Key 2230 (WIFI/BT)2x M.2 M-Key 2280 (NVMe) |
| Construction | Aluminum & Wteel |
| Chassis Color | Black |
| Mounting Type | Desktop & wall mount bracketOptional VESA mount kit |
| Dimensions | 200mm(W)0 x 200mm(D) x 62mm(H) |
| Weight | 1.9 kg |
| Others | With Active CPU Cooler, Optional Power adaptorPower Requirement: +12~+24V DC-inOperating System: Windows 10 /11, Ubuntu |
| Operating Temperature | 0 °C ~ +45 °C (32°F~113°F) |
| Storage Temperature | -20°C~+80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 1 Grms / 3~500Hz |
| Shock | Operating: 20G/11 ms DurationNon-operating: 40G/11 ms Duration |
| Certification | CE, FCC Class B & LVD |

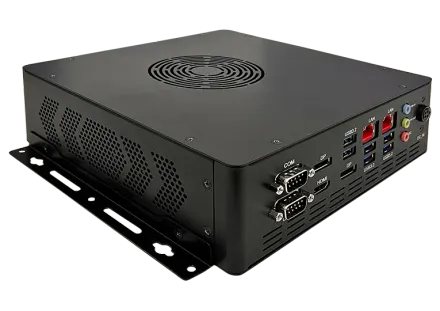

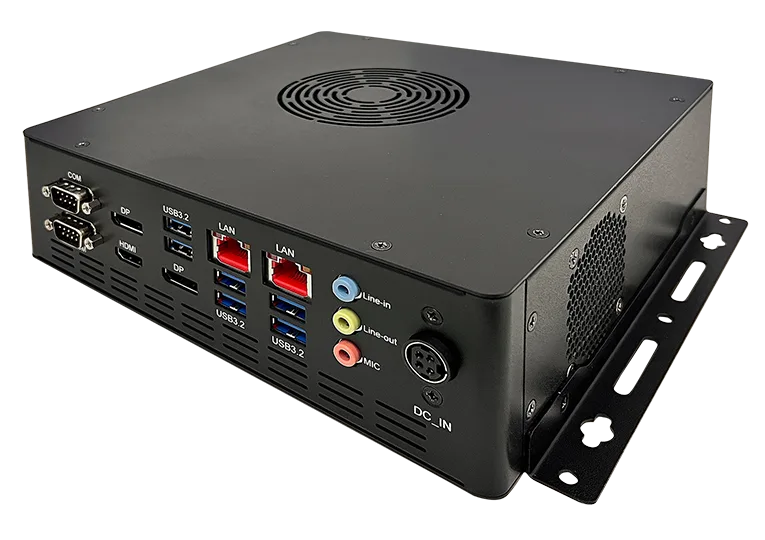

I/O — Rear panel
Front access
Where the CMI300-997 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
