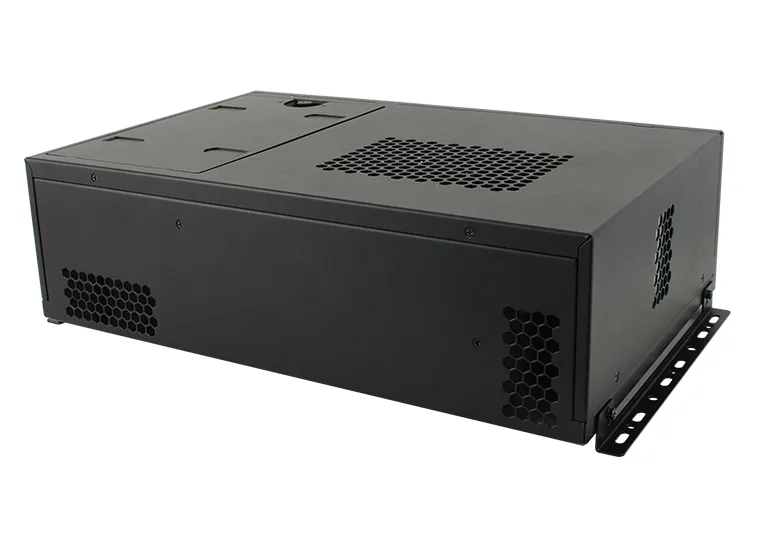

CMI203 System Family

Name: CMI203 System Family
Brand: IBASE Technology
SKU: CMI203_System_Family
Availability: InStock

Système extensible — 7th Gen Intel® Core™ Processor

Système extensible — 7th Gen Intel® Core™ Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

CMI203-992VF-X3G: 7th Gen Intel® Kabylake-H mobile ProcessorsCMI203-991: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® DT ProcessorsCMI203-990: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® MB Processors

MÉMOIRE

CMI203-992VF-X3G: 1x DDR4-2400 SO-DIMMCMI203-991: 2x DDR4-2133 SO-DIMMCMI203-990: 2x DDR4-2133 SO-DIMM

STOCKAGE

SATA / M.2:CMI203-992VF-X3G: 1 x 3.5"or 2.5"HDD drive bay, 1x M.2 (M-Key)CMI203-991: 1x 3.5"or 2.5"HDD drive bayCMI203-990: 1x 3.5"or 2.5"HDD drive baymSATA:CMI203-992VF-X3G: 1x mSATACMI203-991: 1x mSATACMI203-990: 1x mSATA

ENVIRONNEMENT

0°C~45°C (32°F~113°F)

CMI Series System with…Mini ITX System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # CMI203_System_Family

Pilote

Spécifications

20 LIGNES

Carte mère du système	CMI203-992VF-X3G: MI992VFCMI203-991: MI991AF/MI991EFCMI203-990: MI990VF/MI990EF
Type de processeur	CMI203-992VF-X3G: 7th Gen Intel® Kabylake-H mobile ProcessorsCMI203-991: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® DT ProcessorsCMI203-990: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® MB Processors
PCH	CMI203-992VF-X3G: Intel® CM238CMI203-991: MI991AF: Intel® Q170MI991EF: Intel® H110CMI203-990: MI990VF: Intel® CM236MI990EF: Intel® HM170
Vitesse du système	CMI203-992VF-X3G: Up to 3.7 GHzCMI203-991: Up to 4.0 GHzCMI203-990: Up to 3.7 GHz
Mémoire	CMI203-992VF-X3G: 1x DDR4-2400 SO-DIMMCMI203-991: 2x DDR4-2133 SO-DIMMCMI203-990: 2x DDR4-2133 SO-DIMM
E/S du panneau avant	N/A
E/S du panneau arrière	1x AC-outlet, 1x Power button, 1x reset button1x Power LED, 1x HDD LED1x DB9M for GPIO (4-in & 4-out)3x RS232 ports via pin header2x USB 2.0 ports via pin header2x system fansBased on different motherboard I/O ports
Interface de stockage	SATA / M.2:CMI203-992VF-X3G: 1 x 3.5"or 2.5"HDD drive bay, 1x M.2 (M-Key)CMI203-991: 1x 3.5"or 2.5"HDD drive bayCMI203-990: 1x 3.5"or 2.5"HDD drive baymSATA:CMI203-992VF-X3G: 1x mSATACMI203-991: 1x mSATACMI203-990: 1x mSATA
Emplacements d’extension	PCI-E Expansion: 1x PCI-E (x16) expansion slotAdd-on card Max. Size: 111mm(W) x 170mm(D) x 40mm(H)
Alimentation	Industrial 250W ATX power supplyInput voltage: 100V ~ 240VInput frequency: 47Hz ~ 63HzCompatible with IEC62368-1/EN62368-1
Construction	SECC
Couleur du châssis	Black
Type de montage	Wall mount & Dekstop
Dimensions	345mm (W) x 225mm (D) x 100mm (H)13.58" (W) x 8.86" (D) x 3.94" (H)
Poids	4.4kg
Température de fonctionnement	0°C~45°C (32°F~113°F)
Température d’entreposage	-20°C~80°C (-4°F~176°F)
Humidité relative	5% ~ 90% @45C (Non-condensing)
Vibrations	Non-Operating: 1.0 grms / 5~500Hz / randomOperating: 0.25 grms / 5~500Hz / random
Certification	CE / LVD / FCC Class B (Pre-scan only)
