ASB200-953
Fanless System with 11th Gen Intel® Core™ U-Series Processor
Fanless System with 11th Gen Intel® Core™ U-Series Processor. Local warranty support and engineering customization available on request.
CPU
Intel® Core™ i7-1185G7E ProcessorIntel® Core™ i5-1145G7E ProcessorIntel® Core™ i3-1115G4E ProcessorIntel® Celeron® 6305E Processor
MEMORY
2x DDR4-3200 SO-DIMM, Max.64GB
STORAGE
1x M.2 M-key 2280, Supports NVMe, PCI-E(4x) only
OPERATING TEMP.
0°C~45°C (32°F~113°F) *with airflow 0.9m/s
ASB Series Fanless System…SBC System
P/N # ASB200-953
Driver Specifications
19 ROWS
| System Mainboard | IB953AF-i7/ IB953AF-i5/ IB953EF-i3/ IB953EF-CEL |
|---|---|
| CPU Type | Intel® Core™ i7-1185G7E ProcessorIntel® Core™ i5-1145G7E ProcessorIntel® Core™ i3-1115G4E ProcessorIntel® Celeron® 6305E Processor |
| System Speed | Up to 4.4GHz |
| Memory | 2x DDR4-3200 SO-DIMM, Max.64GB |
| Front Panel External I/O | 3x USB 3.11x USB 2.02x DisplayPort1x DB9 for COM#1 (RS232/422/485)2x Gigabit LAN |
| Rear Panel External I/O | 1x Power button1x Digital I/O (4-in/4-out)2x Antenna holes1x HDD LED1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%) |
| Expansion Slots | 2x M.2 sockets (B-Key/ E-Key) |
| Storage | 1x M.2 M-key 2280, Supports NVMe, PCI-E(4x) only |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included)Optional VESA mount kit |
| Dimensions | 180mm (W) x 150mm (D) x 72mm (H)7.08" (W) x 5.9" (D) x 2.83" (H) |
| Weight | 1.5kg |
| Operating Temperature | 0°C~45°C (32°F~113°F) *with airflow 0.9m/s |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 1Grms / 3~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class-B |

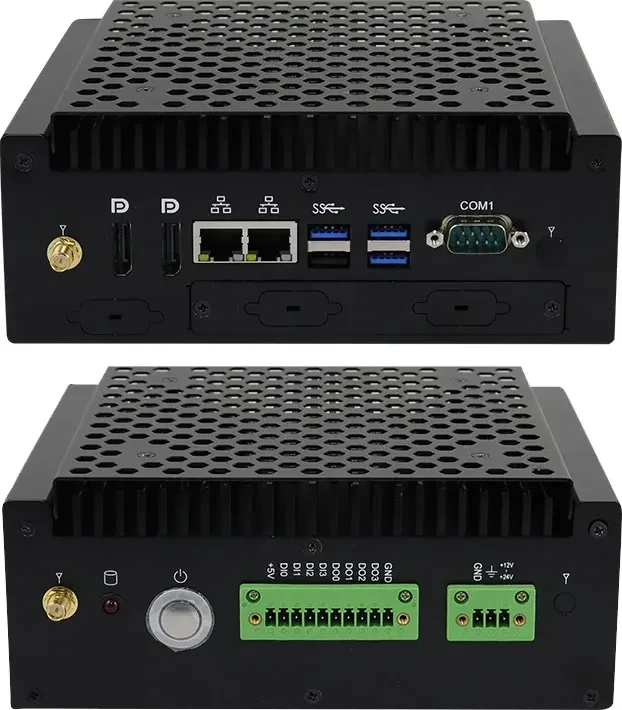

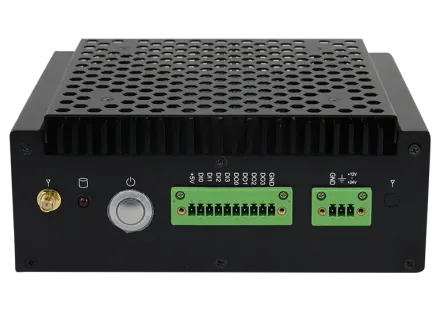

I/O — Rear panel

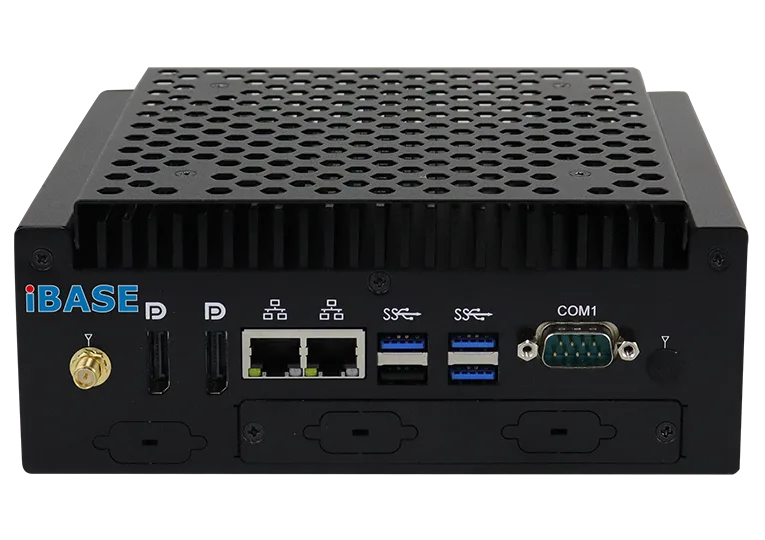

Front access
Where the ASB200-953 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
