SI614
SI-614 Signage Player with Nvidia MXM or AMD Radeon™ Graphics Four Video Outputs 7th Gen Intel® Core™ Desktop Processor-based
SI-614 Signage Player with Nvidia MXM or AMD Radeon™ Graphics Four Video Outputs 7th Gen Intel® Core™ Desktop Processor-based. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBD614 |
|---|---|
| CPU Type | 7th Generation Intel® Core™ Desktop processor |
| CPU Socket | LGA1151 |
| Chipset | H110 PCH |
| Memory | 2x DDR4 2133 SO-DIMM, Dual Channel, Max 32GB |
| Graphics | Nvidia GeForce GTX 1080 8GD5X / GeForce GTX 1060 · 6GD5 / GeForce GTX 1050Ti 4GD5 |
| LAN | 1x Intel® I219V Gigabit LAN controller |
| Expansion Slots | 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth, 4G LTE or · Capture card options · 1x M.2 B key(3042) for storage or 4G LTE options · 2x 2.5 SATA III SSD for storage · 1x SIM card slot |
| I/O Interface | 1x HDMI 1.4 for console · 4x DP · 4x USB 3.0 · 1x RJ45 for Gigabit LAN · 1x RJ45 for RS-232 serial port · 1x Audio connectors for Line out · Power / HDD LED, 1x power button · 1x power jack connector · 1x Terminal blocks for external power button |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | +19V DC |
| Construction | SGCC |
| Weight | 3kg (6.6lbs) |
| Chassis Color | Black and white |
| Storage | 1x M.2 M-Key (2280) |
| Power Supply | 220W power adaptor |
| Mounting | Standard system bracket |
| Dimensions | 256mm(W) x 160mm(D) x 69mm(H) · 10.07”(W) x 6.29”(D) x 2.71”(H) |
| Certification | CE, FCC class B, UL and CCC |
| Operating System Support | Windows10 / Linux |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5%~90% @45oC (non-condensing) |
| Vibration | SSD: 5 grms / 5~500Hz / random operation |
Features
| Feature 1 | iCONTROL intelligent energy-saving and Observer remote monitoring technologies |
|---|---|
| Feature 2 | 7th Generation Intel® Core™, i7/i5/i3/ Pentium® / Celeron® Processors |
| Feature 3 | Nvidia MXM graphics card (Type-B, Up to 150W) |
| Feature 4 | 2x DDR4 2133 SO-DIMM, dual channel, Max 32GB |
| Feature 5 | 1x HDMI 1.4 for console, 4x DP |
| Feature 6 | 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options |
| Feature 7 | 1x M.2 B key (3042) for storage or 4G LTE options |
| Feature 8 | 2x 2.5" SATA III SSD device |
| Feature 9 | Compact and rugged design |
Ordering Information
| SI-614 | - Signage Player with MBD614 with Intel® Core™ i5-7500 processor (8M Cache, up to 3.4 GHz), 1x MXM NV1050 4GB 128bit/GDDR5 GPU card, 2x 8GB DDR4 memory, 2.5"SSD 128GB and 270W PSU |
|---|---|
| SI-614-M | - Signage Player with MBD614, 270W PSU w/o CPU, MXM GPU card memory and Storage |

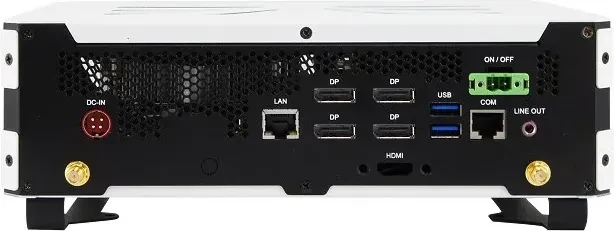

I/O — Rear panel

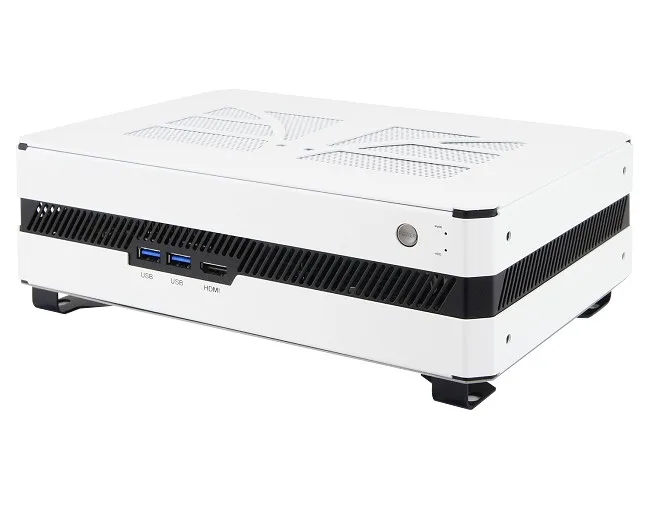

Front access
Where the SI614 is deployed
Unattended media players for retail, transit, and wayfinding displays.
Multi-display outputs driving large-format and multi-panel video walls.
Touch-enabled signage for interactive wayfinding and self-service.
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
